Quick Answer

The LCN 9530IQ is the current generation of the LCN SlidePro automatic sliding door operator. Ordering the right LCN 9530IQ parts requires confirming three things before opening any catalog:

• Model number first: 9530IQ (single door, pull-side), 9540IQ (single door, push-side), 9550IQ (simultaneous pair), 9560IQ (independent pair). Motor gearbox, controller, and arm assemblies are all model-specific. Parts ordered for the wrong model will not fit.
• IQ vs legacy 9530: The 9530IQ uses a digital controller and current-generation motor gearbox. Legacy 9530 (non-IQ) units share some mechanical parts but the 3454 motor gearbox and 3462 controller are not interchangeable.
• Motor gearbox vs controller failure: Grinding or stalling = motor gearbox (9530IQ-3454). Powered but unresponsive = controller (9530IQ-3462). Diagnosing correctly before ordering prevents the most common wrong-part return in SlidePro service.
• DPS cable is not a general power cable. The 9530IQ-519 DPS cable connects the door position sensor to the controller. Using a standard cable causes sensor errors and erratic door behavior.
• 206 LCN SlidePro parts are stocked at Security Parts across the 9530IQ, 9540IQ, 9550IQ, and 9560IQ families.

Call 845-935-0301 for pre-order compatibility support on LCN 9530IQ parts before placing your order.

What the LCN 9530IQ SlidePro Is

The LCN 9530IQ is the Intelligent Que generation of the LCN SlidePro, an automatic sliding door operator designed for surface-mounted installation on sliding door systems at high-footfall commercial entrances. It is widely installed in healthcare facilities, hotel lobbies, grocery and retail stores, university buildings, and airport terminal corridors where bi-parting or single-panel sliding automatic doors are required for ADA accessibility and high-volume traffic flow.

The SlidePro mounts in the header above the door opening. The motor gearbox drives the arm assembly that moves the door panel. The controller processes activation signals from motion sensors, push plates, and access control systems and manages open, hold, and close timing. The track and roller system guides the door panel through its travel path.

The 9530IQ is a separate product family from the LCN Senior Swing IQ swing operators and the LCN Benchmark swing operators. Parts between the sliding and swing families are not interchangeable. For swing operator parts, see the LCN Senior Swing IQ parts guide and the LCN Benchmark Senior Swing guide. For the full LCN automatic door operator catalog, see the commercial door operators guide.

LCN SlidePro Model Selection: 9530IQ vs 9540IQ vs 9550IQ vs 9560IQ

The four SlidePro IQ models share the same core architecture but differ in door configuration and arm assembly type. Ordering parts for the wrong model is the leading cause of wrong-part returns on SlidePro service calls. Confirm the model number on the operator label before ordering any component.

LCN 9530IQ Motor Gearbox: 9530IQ-3454

LCN 9530IQ-3454 Motor Gearbox. View product page and order.

The 9530IQ-3454 motor gearbox is the primary drive unit of the LCN 9530IQ SlidePro. It converts electrical power from the controller into mechanical force that moves the door panel through the arm assembly. The motor gearbox is the highest-wear component on high-cycle SlidePro installations such as supermarket entrances and hospital main corridors.

When to Replace the Motor Gearbox

• Door stalls at a consistent point during travel (partial or full stall)
• Door moves but with significantly reduced force compared to normal operation
• Grinding, clicking, or mechanical noise audible from the operator housing
• Motor attempts to run but door does not move (arm connected and confirmed)

A motor gearbox that stalls intermittently under load but runs freely without load has typically exceeded its service life. On high-cycle entrances, proactive gearbox replacement during a scheduled service visit prevents unplanned downtime.

Each model uses its own motor gearbox. The 9530IQ, 9540IQ, 9550IQ, and 9560IQ each have a dedicated -3454 part:

• 9530IQ-3454: Single door pull-side motor gearbox
• 9540IQ-3454: Single door push-side motor gearbox
• 9550IQ-3454: Simultaneous pair pull-side motor gearbox
• 9560IQ-3454: Independent pair pull-side motor gearbox

LCN 9530IQ Controller: 9530IQ-3462

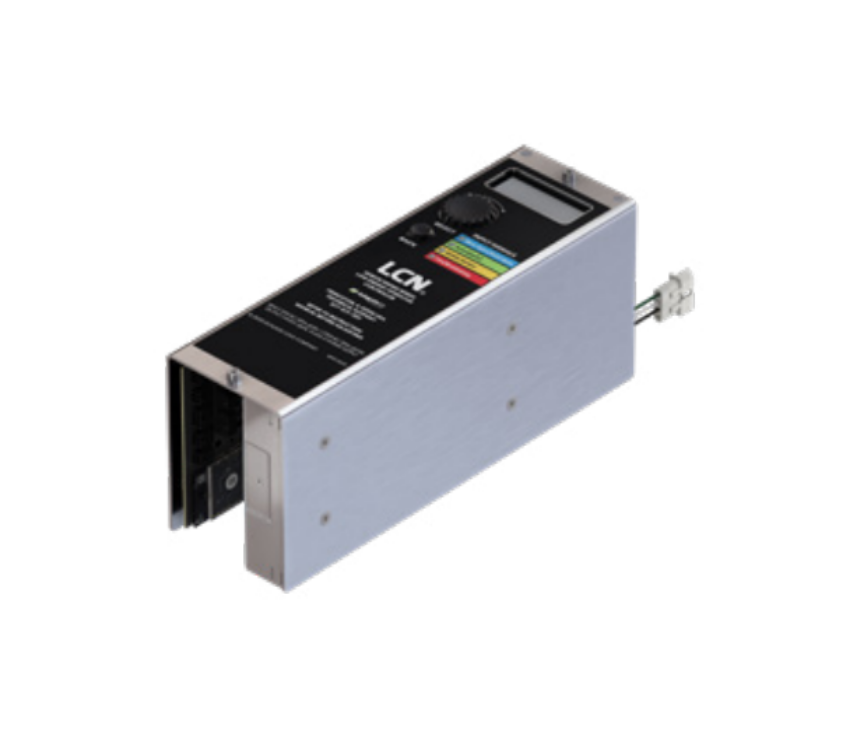

LCN 9530IQ-3462 Controller. View product page and order.

The 9530IQ-3462 controller is the Intelligent Que digital control board that manages all SlidePro functions: activation signal processing, open/hold/close timing, door speed, and safety sensor integration. The IQ controller is what distinguishes the 9530IQ from the legacy 9530 series: it uses a digital logic board rather than the older analog control system.

When to Replace the Controller

• Operator has power but does not respond to activation signals
• LED status indicators are absent, erratic, or not matching expected states
• Door speed and hold-open timing cannot be adjusted at the controller
• Safety reverse function is not triggering when the door path is obstructed
• Operator worked correctly after power reset but fails again within a short period

Each model uses its own controller unit. The 9530IQ-3462, 9540IQ-3462, 9550IQ-3462, and 9560IQ-3462 are model-specific and not interchangeable. For access control integration with the SlidePro controller, see the access control and commercial door hardware integration guide.

LCN 9530IQ Track and Roller Components

LCN 9530IQ-3034 Track Roller. View product page and order.

Standard Track: 9530IQ-3038

The 9530IQ-3038 standard track is the extrusion rail that the track roller travels along as the door panel opens and closes. Track damage is common on high-traffic installations where objects impact the header area or where the door panel has jumped the track due to a failed roller. Replace the track when the extrusion is bent, when the track surface is worn into the roller contact area, or when the track ends are damaged and no longer retain the roller assembly.

Track Roller: 9530IQ-3034

The 9530IQ-3034 track roller is the wheel that rides in the track and connects the arm assembly to the sliding movement of the door. Roller wear is a gradual process on standard-cycle entrances but accelerates significantly when the track has debris, when the door panel is misaligned, or when the door is repeatedly forced manually against the motor. Replace the track roller when the roller bearing is seized, when there is visible flat-spotting on the roller surface, or when the door produces a rhythmic thumping noise during travel.

End Caps and Track End Hardware

End caps protect the ends of the track extrusion and prevent the roller assembly from traveling beyond the door travel limit. Two end cap configurations are stocked:

• 9530IQ-334R: Right-side end cap
• 9530IQ-334L: Left-side end cap
• 9530IQ-163-1: End cap cover insert for RF window integration
• 9530IQ-73: Track end cap for the track extrusion termination

LCN 9530IQ Arm Assembly

LCN 9530IQ-3077T Standard Arm. View product page and order.

The arm assembly connects the motor gearbox spindle to the track roller, converting the rotational output of the gearbox into the linear movement that slides the door panel. The arm type differs between the pull-side and push-side models.

Pull-Side Arms: 9530IQ and 9550IQ

The 9530IQ and 9550IQ pull-side operators use track arms:

• 9530IQ-3077T: Standard track arm for 9530IQ single-door pull-side installations
• 9530IQ-3077PLCM: Standard arm with track (arm and track combined as a single assembly)

Push-Side Arms: 9540IQ and 9560IQ

The 9540IQ and 9560IQ push-side operators use rod-and-shoe arm assemblies that operate from the push side of the header. These are completely different from pull-side track arms and are not interchangeable:

• 9540IQ-3077: Standard arm for 9540IQ push-side
• 9540IQ-3077L: Long arm for wider push-side openings
• 9540IQ-79: Standard rod and shoe
• 9540IQ-79LR: Long rod and shoe for extended reach
• 9540IQ-77: Main arm body for 9540IQ push-side configuration
• 9540IQ-3077TLS: Telescoping arm for variable-width openings
• 9540IQ-3077LNGTLS: Telescoping long arm for wider openings

Cables and Wiring Components

9530IQ-519 DPS Cable

The DPS cable connects the door position sensor in the track to the controller. The position sensor tells the controller where the door is in its travel path at all times, enabling the controller to manage open and close limits, safety reversal, and hold-open behavior. On single-door 9530IQ installations, the DPS cable runs within the header. On 9550IQ and 9560IQ paired installations, it also links between the two operator units.

The DPS cable is not interchangeable with a standard power or signal cable. If the DPS cable fails and is replaced with a standard cable, the controller will not receive position data and the door will exhibit erratic behavior or fail to operate at all.

• 9530IQ-519: DPS cable for 9530IQ single-door pull-side

9550IQ-982 Companion Cable

The companion cable is the inter-operator communication cable required in every 9550IQ simultaneous bi-parting installation. Both pull-side and push-side operators must receive synchronized activation signals to open and close simultaneously. Without the companion cable, the two units cannot communicate and the doors will not open together. The companion cable is frequently overlooked when ordering replacement parts for paired 9550IQ systems.

9530IQ-518 Cable and Parts Bag

The 9530IQ-518 cable and parts bag includes the miscellaneous short cables, connectors, and hardware items used in the standard 9530IQ installation. This kit is typically ordered when a unit has been removed from service, partial components have been lost, or a fresh installation requires the complete cable set.

Mounting Hardware: Baseplates, Mounting Plates, and Brackets

• 9530IQ-10 standard baseplate: The primary mounting plate that attaches the 9530IQ operator body to the header structure. The standard baseplate is for single-door installations.
• 9530IQ-10-DD double door baseplate: Required for bi-parting 9550IQ/9560IQ paired installations where both operators share a common header attachment point.
• 9530IQ-18 mounting plate: Secondary mounting component for aligning the operator within the header assembly.
• 9530IQ-475 gearbox mounting bracket: Secures the motor gearbox to the baseplate. Replace when the bracket is bent or when the gearbox has shifted position during operation.
• 9530IQ-575 controller mounting bracket: Positions the controller board within the operator housing.

Covers, End Plates, and Housing Components

• 9530IQ-72MC standard cover: The main cover panel over the operator body. Replace when damaged or when the cover no longer clips to the housing correctly.
• 9530IQ-72MC-DD double door cover: Extended cover for dual-operator bi-parting header assemblies.
• 9530IQ-511 dress plate: Extrusion trim plate for aesthetic finishing of the exposed header face. Used when the installation requires a finished appearance.
• 9530IQ-12 blank filler plate: Fills unused header sections where the full extrusion length exceeds the operator assembly width.
• 9530IQ-11A spindle plate (2-3/4 inch): The plate at the gearbox spindle exit point. The 11A is for 2-3/4-inch spindle positions.
• 9530IQ-11B spindle plate (3-3/4 inch): For 3-3/4-inch spindle positions.

Header Assemblies and Header Extrusions

The header system provides the structural housing for the entire 9530IQ operator, track, and arm assembly. Header components are ordered when the full header assembly is being installed, replaced, or extended for a wider opening:

• 9530-3572HL header assembly: Complete header assembly for 9530 pull-side installations
• 9530-572HL header extrusion only: The header channel extrusion for custom-length applications
• 9530-572DD double door header: The extended header for bi-parting installations
• 9530-3572DD double door header assembly: Complete double door header with all integrated hardware

Rocker Switch Assembly: 9530-3179

The 9530-3179 rocker switch assembly is the manual control switch mounted on the operator housing for direct local operation, power cycling, and mode selection. Note that the 9530 rocker switch (without the IQ suffix) is the correct part number for the 9530IQ model as well. The 9540IQ, 9550IQ, and 9560IQ each have their own rocker switch assembly with the model prefix.

Replace the rocker switch when the switch fails to change modes or power cycle the unit, when the switch contacts are corroded or physically damaged, or when the switch no longer returns to the neutral position after being pressed.

LCN 9530IQ Parts at a Glance

Source LCN 9530IQ SlidePro Parts at Security Parts

Security Parts stocks all 206 LCN SlidePro parts across the 9530IQ, 9540IQ, 9550IQ, and 9560IQ families. Same-day shipping on stocked components. Call 845-935-0301 for pre-order compatibility support before placing your order.

For the complete LCN automatic door operator catalog, see the door operators parts guide and the commercial door operators guide. For LCN swing operator parts, see the LCN Senior Swing IQ guide and the LCN Benchmark Senior Swing guide. For hold-open and sentronic automatic door parts, see the LCN Sentronic guide.

For guidance on OEM versus aftermarket parts on LCN operators, see the OEM vs aftermarket commercial door hardware guide. For automatic door hardware by building type, see the healthcare guide, hotels and motels guide, universities and colleges guide, government buildings guide, and warehouses and industrial guide.
