What makes a mortise lock different from a cylindrical lock

A mortise lock body sits through-bolted into a milled pocket cut into the door edge. The case itself carries the latch, the deadbolt, and the function logic, which is why a single Schlage L Series body can be configured into dozens of functions, storeroom, classroom, corridor, privacy, without changing the case. A cylindrical lock, by comparison, clamps through a simple cross-bore with the latch driven separately by spindle rotation. Mortise costs more in hardware and in labor since the door needs to be machined for it, but it's mechanically stronger, a through-bolted steel case with an independent deadbolt and anti-friction latch resists the spreading and prying attacks that can defeat a cylindrical chassis. A156.13 rates Grade 1 mortise locks for 1,000,000 minimum operational cycles, which is why you'll see them specified on doors that get heavy daily traffic for decades.

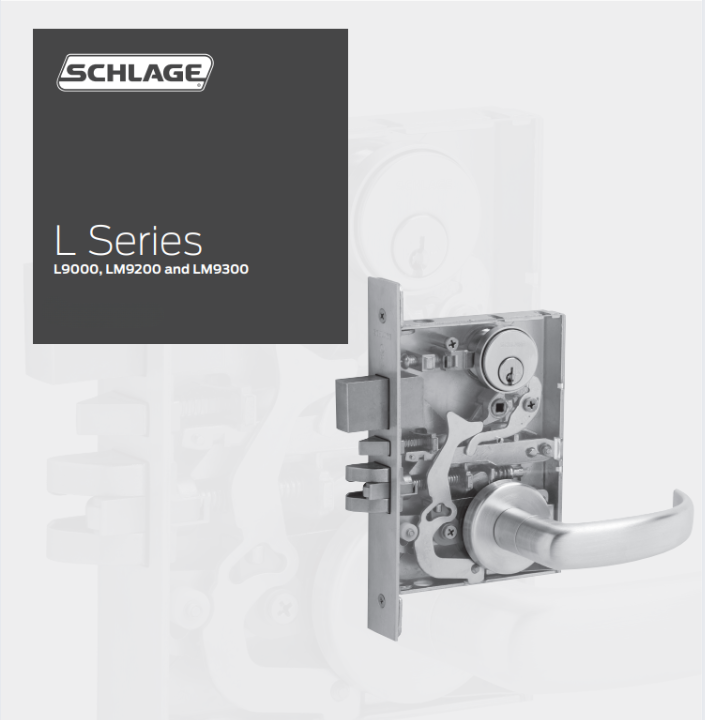

Schlage L Series functions and trim

The L Series is Schlage's broadest mortise family, with more than 40 functional options, 33 lever designs, and 12 finishes available. Functions span standard single-point mortise through 2- and 3-latch multi-point configurations, electrified, and electronic options. Most facilities standardize on a handful of functions, storeroom for exterior doors that lock automatically, classroom for doors that need key override from outside while staying free from inside, and corridor for interior doors needing both inside and outside key control.

Falcon MA Series as a value-tier alternative

Falcon sits under the same Allegion umbrella as Schlage, which means MA Series mortise locks are designed to be keyway-compatible with Schlage cylinders, a real advantage if the building already runs a Schlage master key system and wants to extend it without sourcing a second keyway standard. The MA Series delivers Grade 1 durability at a lower price point than premium mortise lines, which is why you'll often see it specified on classroom and interior stairwell doors where budget matters but a million-cycle rating still doesn't.

Ordering the right replacement parts

Because trim and cylinder are independent components on a mortise lock, you can usually replace a worn lever or a damaged cylinder without touching the lock case itself. The lock case only needs replacing if the internal latch or deadbolt mechanism fails. Always confirm the exact function code (the L9XXX or MA4XX number) before ordering trim, since lever designs and case internals vary by function even within the same series.

Compare mortise and cylindrical options in our mortise locks vs cylindrical locks guide, or get full component diagrams in our mortise lock parts guide. Browse complete brand catalogs for Schlage and Falcon, or see matching deadbolts for openings that need separate auxiliary security.

Why order mortise lock parts from Security Parts

Security Parts has sourced commercial door hardware since 2001, and mortise locks are a category where the function code matters as much as the brand. We stock lock cases, trim, and cylinders for current and older Schlage L Series and Falcon MA Series installations, ship most in-stock orders same day, and offer free shipping on orders of $300 and up. If you can't read the stamped function code on the lock case, send us a photo and we'll confirm the exact replacement.

Why does a mortise lock cost more than a cylindrical lock?

The door needs to be machined for the case, and the lock body itself is heavier-duty, through-bolted steel versus a clamp-through chassis.

Can I replace just the lever without replacing the whole lock?

Usually yes. Trim and cylinder are independent of the lock case on most mortise locks, so a worn lever or cylinder can be swapped on its own.

Is Falcon MA compatible with my Schlage key system?

Falcon and Schlage share the same parent company, Allegion, and MA Series locks are designed for keyway compatibility with Schlage cylinders.

What's the cycle rating on a Grade 1 mortise lock?

A156.13 requires a minimum of 1,000,000 operational cycles for Grade 1 certification.

How do I know which L Series function I have?

Check the lock case for a stamped model number, usually an L9XXX code, before ordering trim or cylinder replacements.

Do you carry parts for older or discontinued mortise lock models?

Often, yes. Send us the stamped function code and we'll confirm availability, even on models the manufacturer no longer lists as current.

How fast can I get mortise lock parts shipped?

Most in-stock mortise lock parts ship same day, with free shipping on orders of $300 and up.
