What is the difference between the 98 and 99 series parts?

The 98 and 99 series use identical internal replacement parts. The only physical difference is the exterior mechanism case: the 98 series has a smooth case and the 99 series has a grooved case. Any dogging component, center case, latch assembly, or electrified kit ordered for the 98 fits the 99 of the same configuration and manufacture date.

How do I find the correct center case part number for my 98/99 device?

Confirm your device configuration first. Rim configurations (98, 99, F-98, F-99) use center case 109012 for the standard assembly. SVR configurations (9827, 9927) use 109358. These two part numbers are not interchangeable. The center case cover kit for rim devices is part 050071. Always confirm configuration before ordering any center case component.

What dogging parts do I need for a post-1998 Von Duprin 98/99 device?

For devices manufactured after 1998, the current-spec dogging components are: 090040 (hex dogging shaft), 090042 (dogging adapter spring), and 090043 (dogging adapter). Devices manufactured before 1998 use a different shaft profile and require the old-style replacement kit (part 050709) instead.

Which Chexit PCB kit do I need for a 98/99 Chexit device?

The PCB kit depends on the device manufacture date. Devices manufactured after August 24, 2015 use the current-generation modules: 040086 for 15-second release, 040088 for 30-second, or 040089 for 0-second delay. Devices manufactured before August 24, 2015 use the discontinued 050228-series PCB kits. Check the manufacture date stamped on the device body before ordering.

What is the QEL conversion kit for the Von Duprin 98/99 rim device?

The 114317 QEL Modular Conversion Kit adds quiet electric latch retraction to a mechanical 98/99 rim device without replacing the device body. For Allegion Connect integration, use 040061 instead. For SVR devices, the QM retrofit kit is 47263418.

Von Duprin 98/99 Series Parts Manual|Security Parts

This page is a structured parts reference for the Von Duprin 98/99 series rim exit device. It lists replacement part numbers by configuration and option code, with direct links to SecurityParts.com product pages for every verified live part. For diagnostic guidance, failure analysis, and ordering advice, see the companion Von Duprin 98/99 Series Exit Device Parts and Service Guide.

Browse all 98/99 series replacement parts at SecurityParts.com: Von Duprin 98/99 Series Parts Catalog.

Configuration Reference

The 98/99 series is available in six configurations. Center case part numbers differ by configuration. Confirm the installed configuration before ordering any center case component.

Rim (panic), 98 and 99: Single door or mullion pair. Center case part 109012.
Rim (fire), F-98 and F-99: Fire-rated single door. Center case part 109012.
SVR (panic), 9827 and 9927: Double door, no mullion. Center case part 109358.
SVR (fire), F-9827 and F-9927: Fire-rated double door. Center case part 109358.
CVR, 9847 and 9947: Architectural double door. Model-specific center case.
Mortise, 9875 and 9975: High-security single door. Model-specific center case.

For CVR parts, see the Von Duprin 9847 CVR parts guide and Von Duprin 9947 CVR parts guide. For mortise device parts, see the Von Duprin 7500 mortise lock parts manual.

98/99 Rim Panic Device: Basic Parts

The following parts apply to the standard 98 and 99 series rim panic device. The 98 series has a smooth mechanism case; the 99 series has a grooved case. All internal replacement parts are interchangeable between the 98 and 99 series of the same configuration and manufacture date.

900561. Mounting Package (1-3/4 and 2-1/4 door) (Both door thicknesses included)
090085. 227 5/32" Hex Dog Key, Pack of 10 (Long version; seat fully before rotating)
090005. 227 5/32" Hex Dog Key, Pack of 2 (Long version)
090040. Hex Dogging Shaft, Pack of 2 (Post-1998 devices; see 050709 for pre-1998)
090042. Dogging Adapter Spring, Pack of 2
090043. Dogging Adapter, Pack of 2 (Housing for shaft and spring)
090041. Dogging Spring, Pack of 2
090044. Dogging Hook, Pack of 2
090039. Latch Return Spring, Pack of 10
090038. Rubber Bumper, Pack of 4
050014. Impact Resistant End Cap Kit (Finished item; specify finish)
050524. Impact Resistant End Cap Bracket
090036. Cover Plate Anti-Rattle Spring, Pack of 10
900597. Impact Resistant End Cap Screw Pack (Finished item; specify finish)
968144. 99 Series Mechanism Case, 3-foot door (Finished item; specify finish)
968146. 99 Series Mechanism Case, 4-foot door (Finished item; specify finish)
970191. 98 Series Mechanism Case, 3-foot door (Finished item; specify finish)
970192. 98 Series Mechanism Case, 4-foot door
050529. 98/99 Series Control Link Pin and Retaining Ring
090031. Control Link Pin, Pack of 10
090037. Baseplate Screw, Pack of 10
090073. Mechanism Case Bracket Screw
050491. Shock Absorber and Holder Assembly
090049. Push Bar Guide, Pack of 10

Center Case Assembly Parts

Center case part numbers differ between rim and SVR configurations. Do not interchange rim and SVR center case components.

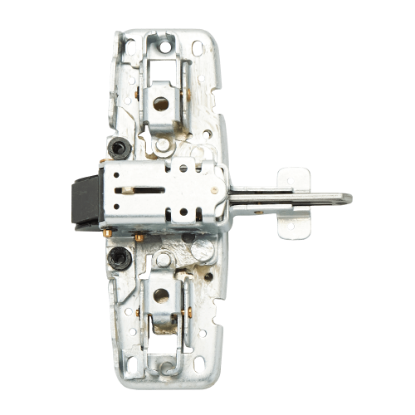

Von Duprin 050020 Rim Center Case Kit Less Cover. The primary center case for 98/99 rim panic and fire devices. Available at SecurityParts.com.

Center case part numbers differ between rim and SVR configurations. Do not interchange rim and SVR center case components.

050020. 98/99 Rim Center Case Less Cover (Rim panic and fire devices)
050026. Rim Center Case Kit Less Cover (Rim devices)
050071. 98/99 Rim Center Case Cover Kit (Rim devices; finished item; specify finish)
900892. Center Case Cover Screws, Pack of 4 (Finished item; specify finish)
050564. Center Case Cover Bracket
050565. Center Case Reinforcing Bracket
050556. LHR Center Case Cover Kit (Left-hand reverse; finished item)

CD: Cylinder Dogging Option

Von Duprin 090040 Hex Dogging Shaft, Pack of 2. The most frequently replaced dogging component on high-traffic 98/99 devices. Available at SecurityParts.com.

The CD option adds cylinder-controlled dogging. Parts listed apply to rim configurations with the CD option.

107813. Cylinder Dogging Kit
050525. CD/SS Mortise Cylinder Collar Package (Finished item)
050490. Cylinder Locating Washer Package
050526. CD/SS Cylinder Lock Nut Package
090046. CD Dogging Plug, Pack of 2
090045. CD Actuator, Pack of 2
050114. CD Conversion Kit, 99 Series
050132. CD Conversion Kit, 98 Series
050115. Cylinder Dogging Conversion Kit, 99 Series
050117. Hex Dogging Conversion Kit, 98 Series
050589. Fire or Less Dogging Cover Plate Kit, 99 Series (Finished item; specify finish)
050588. Less Dogging / Fire Cover Plate Kit, 98 Series

98/99-F Fire Device: Parts Notes

Fire exit hardware (F-98, F-99, F-9827, F-9927) uses the same basic parts as the panic device with the following distinctions:

Hex dogging is not permitted on fire exit hardware
Channel cover plates for fire devices carry different part numbers from panic versions
The 050589 fire cover plate kit applies to the 99 series; 050588 applies to the 98 series
Mounting package 900561 and all mechanism cases (968144, 968146, 970191) are shared across panic and fire configurations

For fire-rated door hardware requirements, see the commercial door fire rating guide.

98/99-2: Double Cylinder Option

The -2 option adds a second outside key cylinder. Center cases are handed (RHR and LHR). Confirm handing before ordering.

050024. 98/99-2 Center Case Less Cover
050025. 98/99-2 Center Case Less Cover
050027. 98/99-F-2 Center Case Less Cover
050028. 98/99-F-2 Center Case Less Cover
113098. 98/99 Rim Double Cylinder Adapter Assembly
113099. 98/99 Rim Double Cylinder Adapter Assembly
050556. 98/99-2/SD LHR Center Case Cover Kit (LHR; finished item)
050388. 98/99-2 Conversion Kit
900892. Center Case Cover Screws, Pack of 4 (Finished item)

E98/99: Electric Locking Option

The E option adds solenoid-based electric locking to the rim device. Available in fail-safe (FS) and fail-secure (FSE) configurations. Solenoid plungers are handed.

106224. E98/99 Rim Subminiature Switch Assembly
110389. E98/99 Rim Solenoid
050534. EL Potted Circuit Breaker
050539. EL Receptacle Connector
050014. 98/99 Series End Cap Kit (Finished item; specify finish)

SS: Signal Switch Option

050544. SS Cable
050545. SS Housing

RX: Request to Exit Option

050270. RX-2 Switch Kit
050271. RX Auxiliary Switch Kit
050281. RX-LC Low Current Switch Kit
050251. RX Switch Kit

LX: Latch Bolt Monitor Option

050254. LX Switch Kit
050255. LX Switch Kit
050256. LX-RX Switch Kit
050257. LX-RX Switch Kit

CX: Chexit Delayed Egress Option

Chexit devices manufactured before August 24, 2015 use the 050228-series PCB kits (discontinued). Devices manufactured after August 24, 2015 use the 040086-series modules. Confirm the manufacture date before ordering any Chexit PCB kit.

Chexit PCB Kits: Post-August 24, 2015 Devices

040086. 15 Second Release Delay Module
040088. Chexit PCB Kit, 30 Second Release
040089. Chexit PCB Kit, 0 Second Delay Release
040191. CX Field Wiring Cable
040193. CX Motor Control Harness

Chexit PCB Kits: Pre-August 24, 2015 Devices (Discontinued)

050228. Chexit PCB Kit, 15 Second Release (discontinued)
050533. CX Solenoid and Plunger (discontinued)

Chexit Signage

113781. Sign, 15 Second Chexit/DE5300
113782. Sign, 30 Second

QEL and QM: Electric Latch Retraction and Quiet Mechanical Kits

QEL (Quiet Electric Latch Retraction) and QM (Quiet Mechanical) kits convert mechanical 98/99 devices without replacing the device body. Baseplate conversion kits and modular conversion kits are available. Confirm device configuration (rim or SVR) and whether Allegion Connect integration (CON suffix) is required before ordering.

47259560. QM Rim Device Retrofit Kit
47263418. QM SVR Device Retrofit Kit
114317. QEL Modular Conversion Kit
040061. QEL Modular Conversion Kit with CON
958002. HD-QEL Modular Conversion Kit
040062. HD-QEL Modular Conversion Kit with CON

ALK: Exit Alarm Kit

The ALK converts the 98/99 to a battery-powered alarmed exit device. The ALK PCB assembly (111795) is available at SecurityParts.com. Additional ALK components are listed below.

111795. ALK PCB Assembly
050525. ALK Cylinder Collar

Service Replacement Items

Old-Style Dogging Parts (Pre-1998 Devices)

Devices manufactured before 1998 use a different dogging shaft profile. Do not substitute current-spec dogging parts into pre-1998 devices without the conversion kit.

050709. Old Style Hex Dogging Replacement Kit
900397. Metal End Cap Kit (replaces plastic 050014)

Von Duprin 98/99 Series Finish Codes

Finished items in the 98/99 parts list require a finish designation at time of order. Verify the finish code on the installed device before ordering any finished replacement part. Common 98/99 finishes include US3, US10B, US26D, US28, US32, and US32D. Refer to the commercial door hardware finish guide for finish code cross-reference and matching guidance.

Browse All 98/99 Series Parts at SecurityParts.com

Von Duprin 98/99 Series exit device replacement parts at SecurityParts.com. OEM components including center cases, dogging assemblies, end cap kits, mechanism cases, and electrified option kits.

The complete Von Duprin 98/99 series replacement parts catalog, including all verified part numbers above, is available at SecurityParts.com. OEM parts only. Same-day shipping on stocked components.

Von Duprin 98/99 Series Parts Catalog
Von Duprin 98/99 Parts and Service Guide (companion narrative guide: failure analysis, ordering guidance, diagnostic steps)
Von Duprin Parts Catalog (all Von Duprin series)
Exit Device Parts Guide

For parts identification and pre-order support, call 845-935-0301 or visit the SecurityParts.com contact page.
