Quick Summary

The 996L is one of those parts that is easy to order wrongly. The lever looks the same across the range, the escutcheon looks the same, and the difference between two part numbers can be a single letter that changes how the door behaves for everyone who uses it.

This guide sets out what each variant does, which device the trim has to match, and the four pieces of information that settle the order, so you can replace trim without changing the way the opening works.

What Is the Von Duprin 996L and What Does It Do?

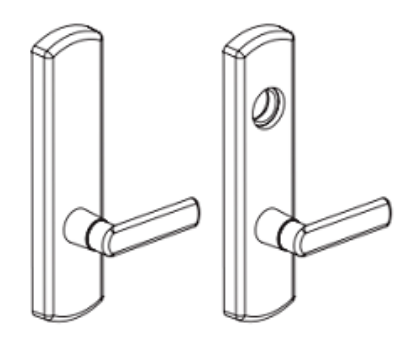

The 996L is outside trim for an exit device. An exit device on its own handles one direction only: push the bar from the inside and the door opens. Trim is what gives you a controlled way back in from the outside.

It consists of an escutcheon plate, a lever and, in most functions, a cylinder that decides whether the lever is live. The trim does not latch the door itself. It reaches through to the device and operates the device latch.

That relationship is the thing to hold on to. If the lever turns freely and the door does not open, the problem is as likely to be in the device as in the trim, and swapping the trim will not fix it.

Which Exit Devices Does the 996L Trim Fit?

Trim is matched to the device family, not just to the door. The 996 range is the trim family used with Von Duprin exit devices, and the specific device series decides which variant of the trim is correct.

Before ordering, identify the device underneath. The series stamping, the chassis shape and the device configuration all feed into the trim choice, and a trim that physically mounts is not necessarily a trim that operates the latch correctly.

Our Von Duprin 98 and 99 Series parts guide and the Von Duprin series guide cover how to read the device before you look at trim at all.

What Do the 996L Suffixes Mean?

The base number tells you the family and the lever. Everything after it tells you the behaviour.

This is the single most common ordering mistake on trim. A 996L and a 996L-NL look almost identical on the door and behave completely differently for the person trying to get in, so a like for like replacement has to carry the suffix across.

Reading an existing trim

The suffix is not always stamped where you can see it. If the trim is already fitted and unmarked, work it out from behaviour instead: try the lever with the door unlocked, then with it locked, and see whether the key retracts the latch or merely changes what the lever does.

Why the suffix is a safety decision, not a preference

Changing the suffix changes who can get through the door. Replacing a night latch trim with a standard lever trim turns a key controlled service entrance into a door anyone can open by hand. Replacing a standard trim with dummy trim locks out people who are supposed to have access.

Because the hardware mounts identically, neither mistake announces itself during installation. It shows up later, as a security incident or as a complaint that a door no longer works. Confirm the function before the old trim comes off the door, not after.

How Does the 996L-NL Night Latch Version Behave?

On a night latch trim the lever is not a latch operator. It is a pull. The key is what retracts the device latch, and it does so only while it is turned.

That makes it the standard choice on doors where nobody should be able to walk in by turning a handle, but authorised staff need key access. Service entrances, delivery doors and back of house openings are the usual homes for it.

The failure mode people report is a night latch that stops retracting the latch. That usually points to the cylinder, the tailpiece length or the device, in that order, rather than to the trim body. Our 880 night latch trim guide covers the same function on a different trim family.

When Would You Use 996L-BE or 996L-DT?

These two look similar on paper and do different jobs.

The 996L-BE is blank escutcheon trim. There is no cylinder preparation, so there is no outside key access at all. It is used where the opening is controlled some other way, or where an outside key would create a security problem rather than solve one.

The 996L-DT is dummy trim. The lever does not operate anything. It exists to give a hand hold and to make a pair of doors look consistent, which is why it so often ends up on the inactive leaf.

What Is Key Capture Trim and Who Needs It?

Key capture trim holds the key while the trim is in the unlocked state. The key cannot be withdrawn until the trim is returned to locked, which means the person who unlocked the door cannot walk away and leave it unlocked without noticing.

Schools, shared buildings and any site where several people hold the same key are the places this earns its keep. It converts a procedural rule into a physical one.

If you already have standard 996L trim and want this behaviour, there is a stocked conversion kit rather than a requirement to buy complete new trim. That keeps the escutcheon, lever and finish you already have on the door.

What Is the M996 Motorized Trim and Can You Convert to It?

M996 is the motorized version of the same trim family. Instead of a cylinder deciding whether the lever is live, an electrical signal does, which is what lets the outside of an exit device join an access control system.

It is used where a card reader, a keypad or a scheduled unlock has to control entry while egress stays mechanical. The device still opens from the inside with a push, whatever the trim is doing.

Conversion is a stocked route. There is a kit specifically for taking 996 R, V and C function trim to M996 motorized, so an existing mechanical opening can be brought onto access control without replacing the device.

For how that fits into the wider system, see our access control hardware integration guide and the QEL conversion kit parts guide, which covers the equivalent change on the device side.

996L Lever or 996K Knob: Which Is Fitted and Which Should Be?

The same trim family exists with a knob, designated 996K. Mechanically the two do the same job. For accessibility they do not.

Hardware on an accessible route has to be operable with one hand without tight grasping or twisting of the wrist, and a knob cannot be turned without doing both. That is why a 996K on a main entrance tends to become a 996L after an accessibility review.

If the trim is being changed for that reason, the finish and the device series stay the same, so only the trim part number changes. The device, the cylinder and the strike can all stay where they are.

What Do You Need to Confirm Before Ordering 996L Trim?

Four pieces of information. Collect them at the door and the order becomes straightforward.

Cylinders are the fifth consideration, and they are usually ordered separately. Confirm whether the trim you are buying includes cylinder preparation, whether you are reusing an existing cylinder, and whether the keyway matches the rest of the site. Our mortise cylinder and rim cylinder guide covers which cylinder type belongs with which device.

What Fails on 996L Trim?

Trim failures are mechanical and predictable. The lever is the part that absorbs daily use, so it is the part that wears.

Start every one of these at the device rather than at the trim. The Von Duprin parts guide and the exit device parts section cover the components the trim is reaching through to.

Trim that was never right in the first place

Not every trim problem is wear. A proportion of the trim we are asked about was ordered as a visual match rather than a functional one, usually during a refurbishment where somebody matched the finish and the lever shape and did not check the suffix.

The clue is that the door has behaved the same way since the work was done. Wear comes on gradually, a wrong part is wrong from day one. If staff say the door has never worked properly since it was changed, check the function before you check for wear.
