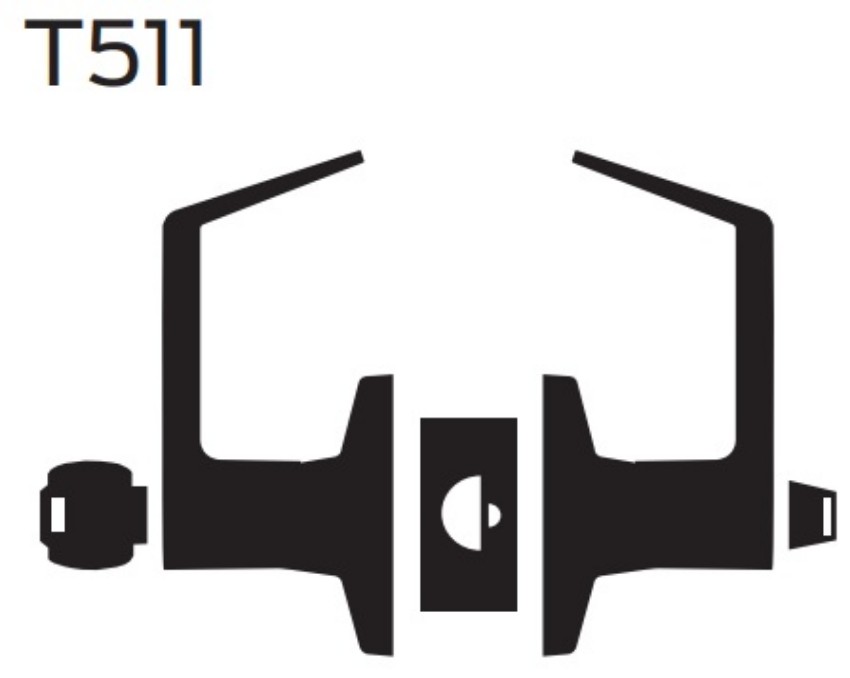

Falcon T511 - Entry/office lock
Diagram List
Products by Part Diagram
Falcon Strikes and Dust Boxes
Products by Part Type
Cylindrical Lock Parts and Acc.
- Chassis assembly & Parts
- A30756-000-00 T511 Chassis
- 030726-000-30 T Series Flanged Nut
- 030712-001-30 Mounting plate, outer
- 031533-006-30 Self-Tap Screw, 8-32 x 3/8"
- A30746-000-00 Hub and Housing Assembly
- 030733-000-55 T Series Inner Spindle
- 022106-002-55 RU Series Retractor
- 022986-001-50 RU Series Retractor Insert
- 022108-000-60 RU Series Retractor Spring
- 022112-000-30 Retainer, Retractor Spring
- A30747-000-00 T Series Hub Assembly
- 030712-000-30 T Series Mounting Plate
- 030709-000-60 T Series Clutch Spring
- 030718-000-30 T Series Key Spindle Assembly, Outside Standard
- 030722-000-30 Dogging bar
- 022104-000-30 T-Series Short Slide Catch
- Trim assembly Parts
- 030724-000-30 Lever Retaining Ring
- 030831-004-30 Set Screw for Standard Lever, 1/4 x 20 x 1/4"
- 030706-002 T Series Rose
- 23981145 T Series 2-3/4" Deadlatch, Standard
- 024416-012 Latch and Strike Screw, 8-32 x 3/4" Combo
- 030703-000-30 T/RU Series Inner Spindle
- Q330-270 T Series Spring Cage Kit
- Q330-271, T Series Spring Cage Kit
- Levers
- Cylinders
- Tailpieces
- Spindle
- Latch
- Strikes
- Spring Cage
