Falcon 030712-001-30 Mounting plate, outer

SKU: 030712-001-30

Falcon 030712-001-30 Mounting plate, outer

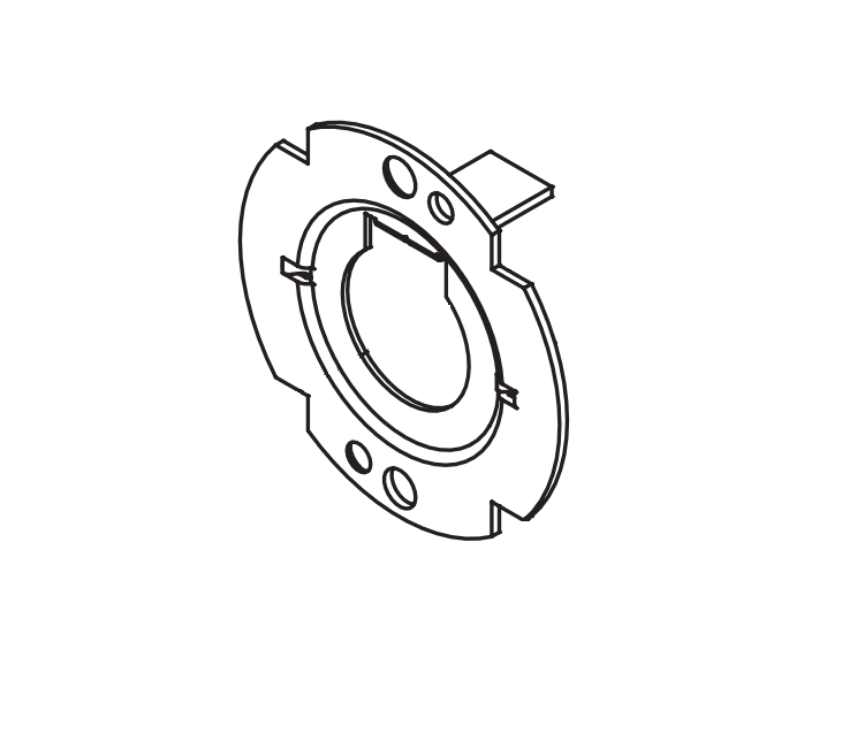

Picture of 030712-001-30 Mounting plate, outer

Falcon

SKU: 030712-001-30

Falcon 030712-001-30 Mounting plate, outer

Available (3 - 4 Weeks)

The Falcon 030712-001-30 is the OEM Outer Mounting Plate for Falcon T Series cylindrical locks, documented in the official Falcon T Series Parts Manual. The outer mounting plate is confirmed in the Chassis Assembly position across the complete Falcon T Series function catalog, including standard, IC, and electrified functions.

Outer Mounting Plate vs Base Mounting Plate

The Falcon T Series mounting plate assembly consists of two components. The 030712-000-30 is the base mounting plate that forms the primary structural layer inside the chassis. The 030712-001-30 is the outer mounting plate that overlays the base and completes the mounting assembly on the outer side of the chassis structure. Both components are confirmed in the Chassis Assembly position across the T Series catalog. When replacing the mounting assembly, confirm which plate has failed before ordering to ensure the correct component is selected.

Falcon T Series Functions That Use This Outer Mounting Plate

The 030712-001-30 is confirmed in the Chassis Assembly position for the following Falcon T Series models, as listed on the SecurityParts.com product page:

T101: Passage latchset
T291: Privacy hospital lock
T301: Privacy lock
T351 and T351-IC: Closet lock
T381 and T381-IC: Classroom security lock
T411 and T411-IC: Asylum lock
T501 and T501-IC: Entry lock
T511 and T511-IC: Entry/office lock
T521 and T521-IC: Office lock
T561 and T561-IC: Classroom lock
T571 and T571-IC: Dormitory lock
T581 and T581-IC: Storeroom lock
T851 and T851-IC: Storeroom lock (electrified, fail safe)
T881 and T881-IC: Storeroom lock (electrified, fail secure)

IC variants denote Interchangeable Core versions of each function. The outer mounting plate is an internal chassis component with no finish designation and no handing requirement.
