Name: Falcon 030724-000-30 Lever Retaining Ring (Falcon)
SKU: 030724-000-30
Price: 0.59 USD
Availability: InStock

Home
All Commercial Door Hardware Parts | Security Parts
Cylindrical Locks Parts
Falcon 030724-000-30 Lever Retaining Ring

SKU: 030724-000-30

Falcon 030724-000-30 Lever Retaining Ring

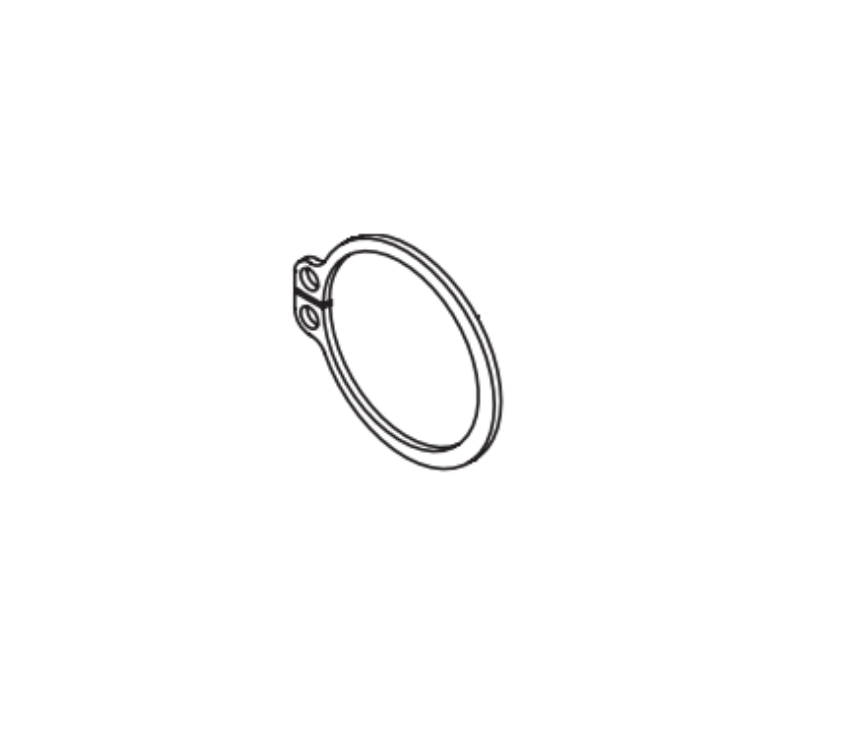

Picture of 030724-000-30 Lever Retaining Ring

Falcon

SKU: 030724-000-30

Falcon 030724-000-30 Lever Retaining Ring

Available (3 - 4 Weeks)

The Falcon 030724-000-30 is the OEM Lever Retaining Ring for Falcon T Series cylindrical locks, documented in the official Falcon T Series Parts Manual. The lever retaining ring is confirmed in the Trim Assembly position across the complete Falcon T Series catalog, covering every standard and IC function from passage through electrified storeroom.

What the Lever Retaining Ring Does

The lever retaining ring is a Trim Assembly component in the Falcon T Series cylindrical lock. It secures the lever handle onto the lever hub at the inside or outside trim position and prevents the lever from pulling off the hub during normal operation. The retaining ring seats into a groove on the lever hub and holds the lever assembly in its correct axial position. When the retaining ring breaks, deforms, or works loose, the lever may wobble, pull away from the rose, or detach from the hub entirely during lever operation. Replacing the 030724-000-30 restores secure lever retention at the trim position and prevents lever detachment.

Complete Falcon T Series Function Coverage

The 030724-000-30 is confirmed in the Trim Assembly position for the following Falcon T Series models, as listed on the SecurityParts.com product page:

T101: Passage latchset
T12: Dummy trim
T291: Privacy hospital lock
T301: Privacy lock
T351 and T351-IC: Closet lock
T381 and T381-IC: Classroom security lock
T411 and T411-IC: Asylum lock
T501 and T501-IC: Entry lock
T511 and T511-IC: Entry/office lock
T521 and T521-IC: Office lock
T561 and T561-IC: Classroom lock
T571 and T571-IC: Dormitory lock
T581 and T581-IC: Storeroom lock
T851 and T851-IC: Storeroom lock (electrified, fail safe)
T881 and T881-IC: Storeroom lock (electrified, fail secure)

IC variants denote Interchangeable Core versions of each function. The lever retaining ring is a Trim Assembly component with no finish designation and no handing requirement.
