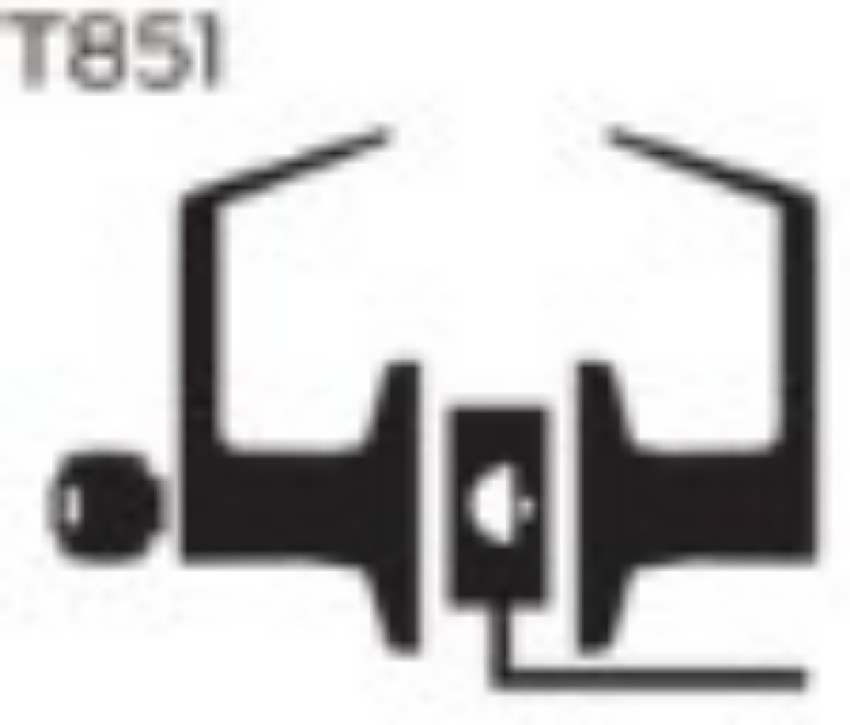

Falcon T851 - Storeroom lock (electrified – fail safe)
Diagram List
Products by Part Diagram
Chassis Assembly
Products by Part Type
Cylindrical Lock Parts and Acc.
- Chassis assembly & Parts
- A31517-000-00 T-Series T851 Chassis Assy, 6-Pin Standard Prep
- 030726-000-30 T Series Flanged Nut
- 030712-001-30 Mounting plate, outer
- 031533-006-30 Self-Tap Screw, 8-32 x 3/8"
- A30746-000-00 Hub and Housing Assembly
- 022106-002-55 RU Series Retractor
- 022986-001-50 RU Series Retractor Insert
- 022108-000-60 RU Series Retractor Spring
- 022112-000-30 Retainer, Retractor Spring
- 030718-000-30 T Series Key Spindle Assembly, Outside Standard
- 031516-000-70 T881 Fail Secure Solenoid
- 031515-004-30 Fillister Head Screw, 4-40 x 1/4"
- 030733-002 Inner Spindle, T851/881
- 031514-000-30 Solenoid Mount
- 030726-007-30 Flanged Nut, Inner Electrified
- 031416-000, Solenoid, Fail Safe T851
- Trim assembly Parts
- Levers
- Cylinders
- Tailpieces
- Latch
- Strikes
- Spring Cage
