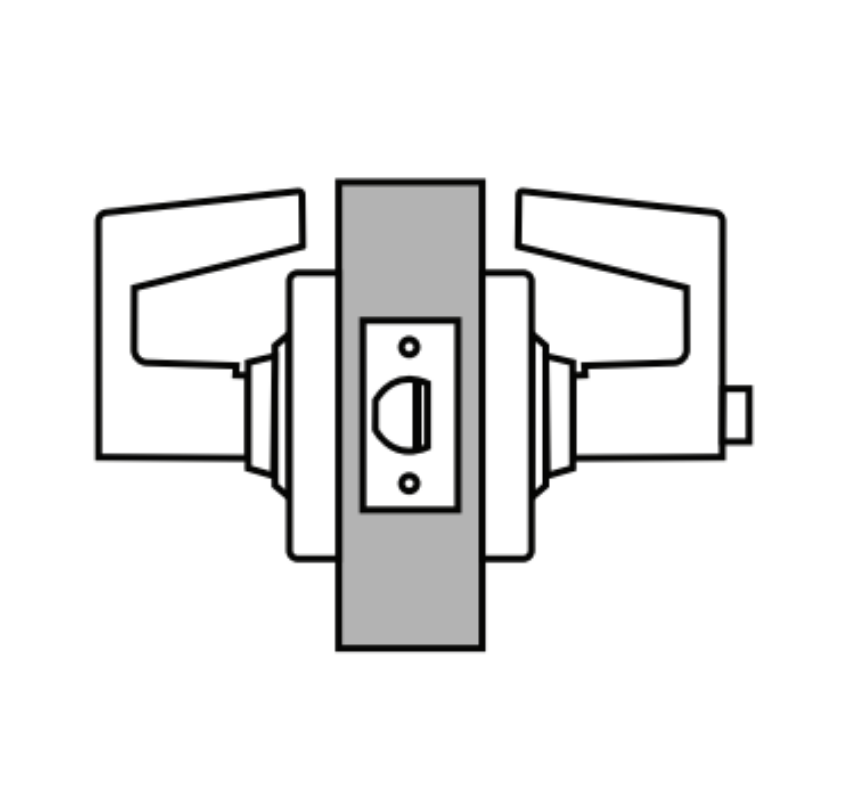

Schlage Commercial Hardware Parts ND40 Bath/Bedroom Privacy Lock
Diagram List
Products by Part Type
Cylindrical Lock Parts and Acc.
- Levers
- Roses
- Chassis assembly & Parts
- C503-019 Slide Spring
- C604-187 Restoring Slide Catch
- C604-191 Slide Catch Spring
- L583-454 Case Cover Screw
- N123-045 Keycam Assembly
- N523-013 Spindle
- 24088544 Outside Housing
- 24085037 INSIDE HUB FOR ND SERIES
- N523-149 Slide
- N523-025 Slide Clip
- N523-054 Adjustment Plate
- N523-177 Inside spindle
- S00031733663-KIT ND30/40/44 CHASSIS KIT, UNASSEMBLED
- Trim assembly Parts
- N523-218 Exterior Springcage & Lever Catch Assembly
- N523-221 Spring Cage & Lever Catch Assembly
- S00031733663-KIT ND30/40/44 CHASSIS KIT, UNASSEMBLED
- N523-055 Anti-Rotation Plate
- 13-248 Spring (Unguarded), Latch, 2-3/4" - Square corner, 1-1/8" x 2-1/4"
- 10-025 ANSI Strike, 4-7/8" x 1-1/4", 1-3/16" Lip
- C603-897 Philips Flat Head Combination Screw
- N523-021 Philips Flat Head Machine Spring Cage Screw
- C603-256 Philips Flat Head Combination Screw, Pack of 100
- N123-086 Push Button Plunger Bar Assembly
- N523-209 Push Button
- N523-020 Emergency Cylinder
- N123-034 Emergency Button & Plunger
- N523-240 Adjustment plate screws
- Screws
- Latch
- Strikes
