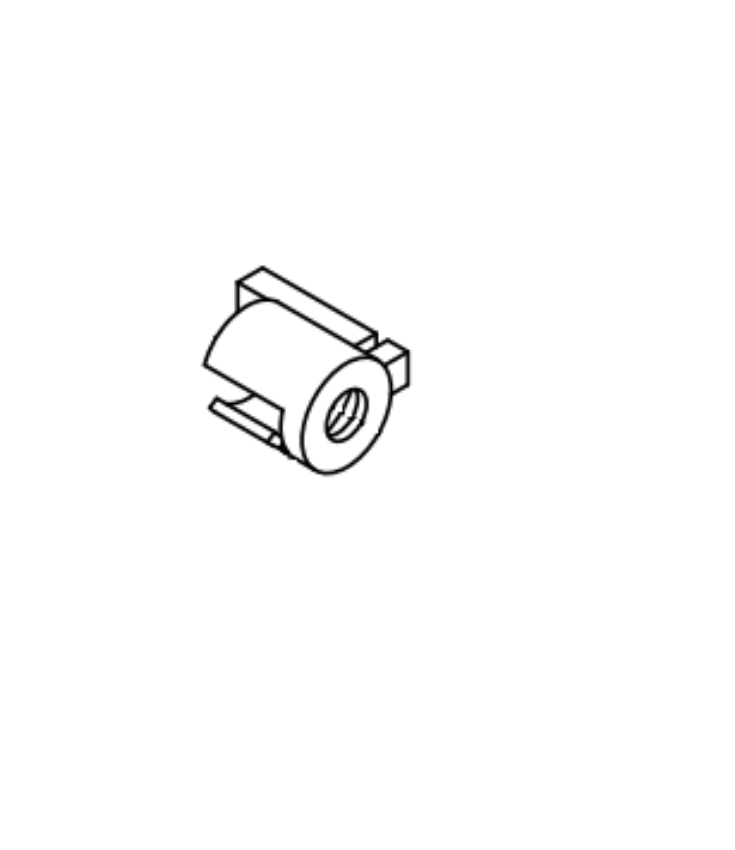

The Schlage N523-020 is the OEM emergency cylinder for the ND40S bath/bedroom privacy lock and the ND44S hospital privacy lock. It's the internal cylinder mechanism that enables the outside emergency override function on both privacy lock models, listed as component "Y" in the official Schlage ND Series service manual trim assembly diagram. When this cylinder wears out, cracks, or fails, the outside emergency release no longer functions. On the ND40S that means staff cannot insert a screwdriver or emergency key to release the privacy button from outside. On the ND44S it means the outside emergency turn button won't rotate to unlock the door, which in a clinical setting can delay emergency response when a patient is incapacitated inside a locked room.

This part is specific to the "S" trim configuration, meaning sectional trim with a separate rose plate and lever, as opposed to escutcheon trim. Confirm the trim style of the installed lock before ordering.

How the Emergency Cylinder Works in the ND40S and ND44S

The ND40S and ND44S are both push-button privacy locks in the Schlage cylindrical lock family, but their outside emergency access mechanisms work differently.

On the ND40S bath/bedroom privacy lock, pushing the inside button locks the outside lever. Emergency entry from the outside is accomplished by inserting a small screwdriver or emergency key into a slot in the outside lever and turning it. That turning motion interfaces directly with the N523-020 emergency cylinder to release the inside privacy button, allowing the outside lever to operate again and the door to open. Closing the door also releases the button automatically to prevent lockout.

On the ND44S hospital privacy lock, the outside emergency access uses a dedicated turn button rather than a screwdriver slot. A staff member turns the outside emergency button to actuate the N523-020 cylinder, which releases the inside privacy button from outside without a tool. This design is intentional for healthcare environments where rapid, accessible emergency entry is required across dozens of patient and exam room doors without staff having to carry a specialized tool on every call. Turning the inside lever or closing the door also releases the button.

Why the N523-020 Emergency Cylinder Gets Replaced

The N523-020 is a high-cycle component on any privacy lock in a high-traffic facility. Hospital floors, school restrooms, office bathrooms, and hotel rooms all see their privacy lock emergency cylinders actuated multiple times per day by housekeeping, maintenance staff, and emergency responders. Over time, the cylinder can develop resistance, lose its ability to rotate cleanly, or stop engaging the button release mechanism. Facilities that defer replacement risk a full outside lockout scenario on a room with an incapacitated occupant inside.

Because the emergency cylinder is a trim-level component, replacement doesn't require pulling the entire lock chassis from the door. The outside lever assembly disassembles at the trim level, the cylinder can be removed and swapped, and the trim goes back together without disturbing the latch or chassis in the door prep.

Schlage ND Series Compatibility

The N523-020 is specifically for the ND40S and ND44S functions. If the installed lock is an ND40 or ND44 with escutcheon trim (an "L" or "N" escutcheon configuration rather than sectional rose trim), the applicable emergency cylinder part number differs. Confirm trim type against the model number on the lock before ordering this part.

For the full Schlage ND Series parts catalog including plunger bars, spring cages, chassis kits, and related cylindrical lock hardware, SecurityParts stocks OEM replacement components across all ND Series functions.
