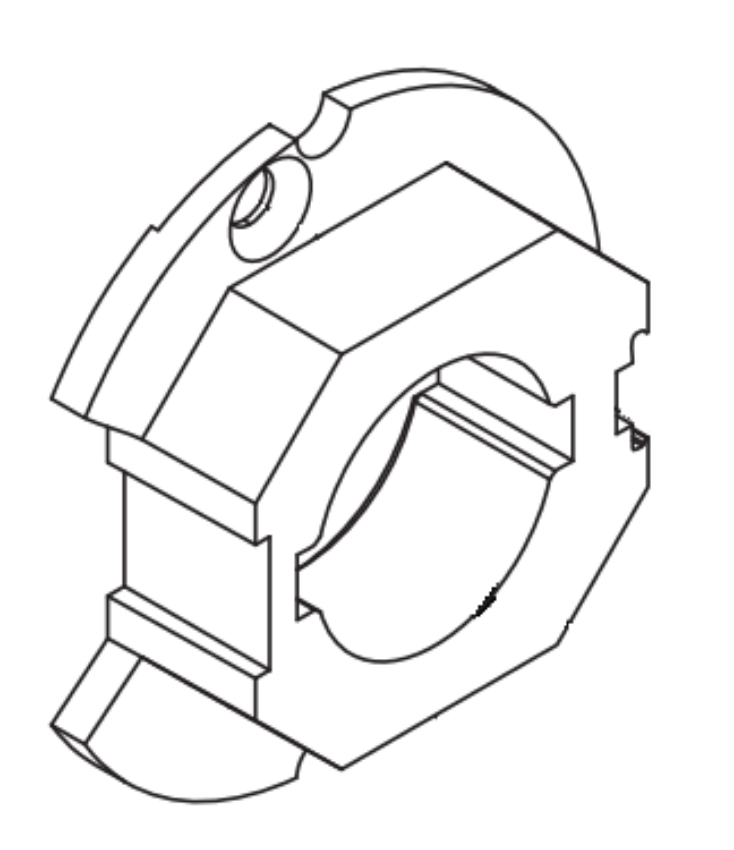

The Schlage 24085037 is the OEM inside hub for the ND Series cylindrical lock, documented as Item 24 in the chassis assembly parts diagrams throughout the Schlage ND Series Service Manual. It applies to all non-electrified ND Series functions, with two specific exclusions: ND66 (store lock, double cylinder) and ND82 (institution lock). Both excluded functions use a different inside hub part number. All electrified ND Series functions also use a different hub. For all other non-electrified functions across the complete ND catalog, the 24085037 is the correct inside hub. In stock.

What the Schlage Inside Hub Does in the ND Series Chassis

The inside hub is Item 24 in the ND Series chassis assembly. It sits on the interior (room) side of the chassis and connects the inside lever assembly to the latch retraction mechanism. When the inside lever is turned, it drives the inside hub. The hub transmits that rotation to the slide (Item 29) and the associated latch retraction components, pulling the latch bolt back from the strike and allowing the door to open.

In standard functions where the inside lever is always free - passage, entrance, storeroom, classroom, and most other ND functions - the 24085037 hub allows the inside lever to rotate freely in both directions and transmit that rotation to the latch mechanism without restriction from a keycam or cylinder on the inside. The inside hub interfaces directly with the insert, inside hub (N523-160), which the service manual notes is not sold separately. If the insert is damaged or worn, the complete 24085037 hub assembly must be replaced.

The service manual notes that a light film of 100% synthetic grease should be applied to all mating surfaces during chassis assembly or reassembly. The specific surfaces are marked in the parts diagram with brush indicators. Assembling the hub without lubrication accelerates wear at the interface between the hub body and the chassis housing.

Schlage Inside Hub: Three Versions for Three Function Groups

The Schlage ND Series Service Manual documents three inside hub part numbers, each for a distinct function group. Ordering the wrong hub for the installed function results in incorrect lever behavior or latch retraction failure.

24085037 (this product) = Inside hub for all non-electrified ND Series functions except ND66 and ND82. This covers the vast majority of the ND catalog: ND10, ND12, ND25, ND30, ND40, ND44, ND45, ND50, ND52, ND53, ND55, ND60, ND70, ND73, ND75, ND78, ND80, ND81, ND85, ND91, ND92, ND93, ND94, ND96, ND97, and all associated indicator variants.

24085060 = Inside hub specifically for ND66 (store lock, double cylinder) and ND82 (institution lock). Both functions have inside key cylinders that control inside lever operation, requiring a different keycam interface geometry inside the hub. The 24085037 and 24085060 are not interchangeable.

24085078 = Inside hub, electrified and RX. For NDE Series and electrified ND Series locks where the inside mechanism includes an electrified motor assembly (N223-062) and associated components. Electrified functions require this hub because the inside spindle geometry differs for the electrified keycam assembly (N223-066).

Schlage ND Series Parts: Complete Chassis Context for the 24085037

The inside hub 24085037 appears in the chassis assembly parts list alongside the following companion components, all confirmed from the Schlage ND Series Service Manual:

Slide spring C503-019, chassis screw L583-454, keycam assembly (function-specific), spindle N523-013, outside housing 24088544, slide N523-149, slide clip N523-025, adjustment plate N523-054, spindle N523-177, gauge insert 23988066, and insert inside hub N523-160 (not sold separately).

When diagnosing a failed inside hub, inspect the slide (N523-149) and slide clip (N523-025) at the same time. These components interact with the hub during lever operation and often show wear alongside the hub when the chassis has accumulated significant cycle count.
