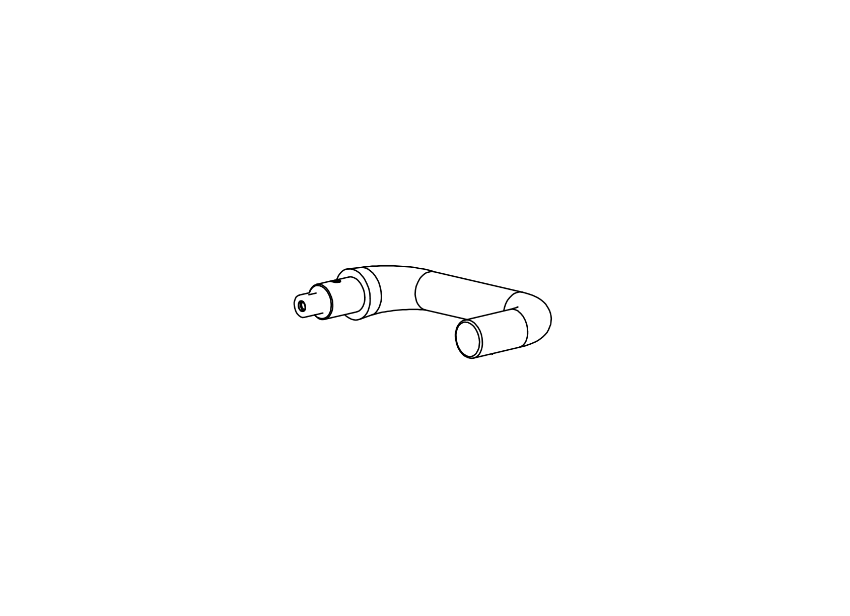

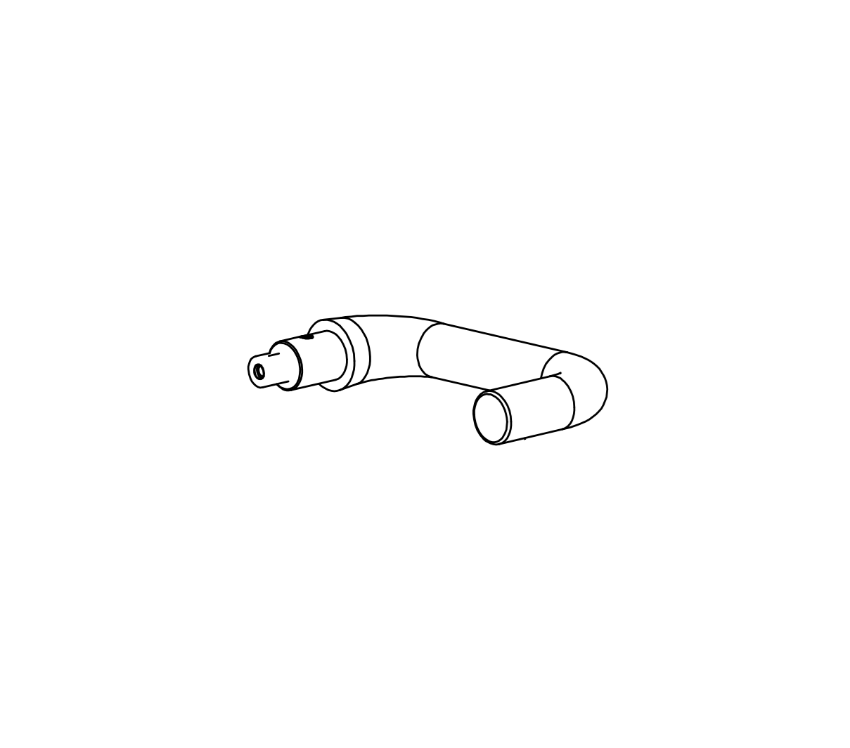

The Detex 101376-7 is the OEM lever assembly for the S lever design in 626 satin chrome finish, used across multiple Detex trim configurations in the 08/09/14 function family. It's a field-replaceable lever assembly for the outside trim on Detex exit devices. When the outside lever on a Detex panic trim cracks, strips at the hub, bends under force, or loses its return spring function, this assembly replaces the lever without requiring the full trim to be pulled or the exit device to be removed from the door.

The 101376-7 appears in the Detex parts list for the D/DV, DN/DNV, D2W, and EU trim catalogs — meaning the S lever assembly is shared across the full Detex 08/09/14 trim product family. Select the applicable trim type when ordering to confirm catalog compatibility.

Detex Exit Device Trim Functions: 08, 09, and 14 Explained

The Detex trim system uses BHMA function designations for the 08/09/14 lever trim series:

Function 08 is the classroom function. Entrance by lever at all times. A key in the outside cylinder locks or unlocks the lever, giving authorized personnel control over whether the door can be opened from outside. This is the standard trim for classrooms, offices, and controlled-access rooms.

Function 09 is the night latch function. The outside lever operates only when released by a key. The key is removable only when the lever is locked. In an unlocked state, the lever operates freely. This is common on corridor, dormitory, and exterior doors where keyed entry control is required while maintaining free egress.

Function 14 is the always active function. The outside lever retracts the latch bolt at all times with no cylinder involved. No keyed control is applied from outside. This is used on vestibule doors, internal passage openings, and any door where push-through access is acceptable from outside.

Detex Lever Trim Configurations That Use the 101376-7

D trim (Wide Stile): The D-series is the wide stile version for Detex 10 Series rim devices and 20/21 Series surface vertical rod devices. The DV suffix adds concealed vertical rod compatibility, extending this trim to the 70/71 and 80/81/82/83 Series devices.

DN trim (Narrow Stile): The DN-series is the narrow stile version for Detex 40 Series rim devices and 50/51 Series surface vertical rod devices. The DNV suffix covers the 60/61/62/63 Series concealed vertical rod configurations.

D2W trim (Vandal Resistant Wide Escutcheon): The D2W trim uses a forged brass construction and a wider escutcheon footprint specifically for high-abuse applications. The S lever and wide escutcheon combination delivers both vandal resistance and full lever functionality.

EU trim (Electrified Unlock): The EU electrified lever trim uses an internal solenoid for 24 VDC electric unlock. The unit is available in Fail-Secure (applied voltage unlocks) and Fail-Safe (applied voltage locks) configurations. Detex electrified trim integrates this S lever assembly with the solenoid mechanism as the outside lever component.

Detex Panic Trim Lever Design Variants

Detex offers multiple S-style lever designs across their trim catalog. The 101376-7 is the S lever in 626 satin chrome. The same S lever is available in 693 black (101376-14) and 695 dark bronze (101376-15). Other lever designs in the same trim family include the T lever (101374-7), U lever (101375-7), and Q lever (106264-7), all available in matching finishes. Confirm the lever style installed on the existing trim before ordering.

.
