• Detex 08D2W Series Trim
• Detex 08D2W Series Parts Diagram (LHR Shown)

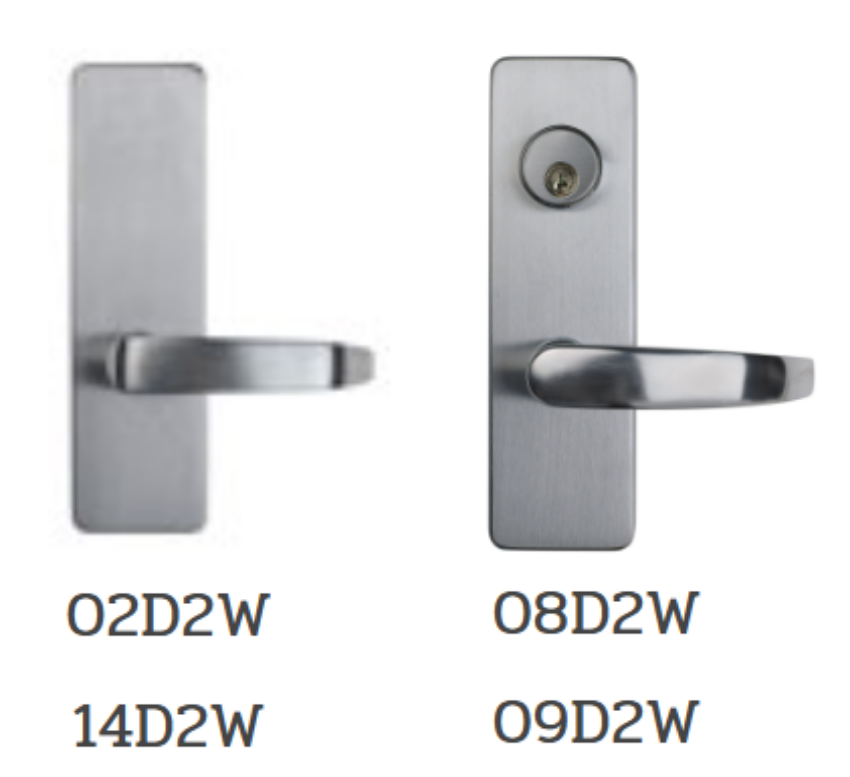

Detex 08D2W Series Trim

Looking to buy a new set? Buy here

Diagram List

Detex 08D2W Series Parts Diagram (LHR Shown)

Detex 08D2W Series Trim

Products by Part Type

Exit Device General Parts

• Lever Arms Kits & Parts
  • 106264-7 Lever Assy, Q, 626
  • 106264-14 Lever Assy, Q, 693
  • 106264-15 Lever Assy, Q, 695
  • 101376-7 Lever Assy, S, 626
  • 101376-14 Lever Assy, S, 693
  • 101376-15 Lever Assy, S, 695
  • 101375-7 Lever Assy, U, 626
  • 101375-14 Lever Assy, U, 693
  • 101375-1 Lever Assy, U, 695
  • 101374-7 Lever Assy, T, 626
  • 101374-14 Lever Assy, T, 693
  • 101374-15 Lever Assy, T, 695
• Cylinders
  • 102281-7 Mortise Cylinder, 5 pin
  • 103800-626 Mortise Cylinder Housing, SFIC, 7 pin
  • 100572-9 Cylinder Collar, Short
  • 100752-9 Cylinder Collar, Tall
• Escutcheon
  • 105664-9 Escutcheon Assy, BP2
• Internal Trim Mechanism Parts
  • 100771 Stop, Rotational
  • 104220 Hex Standoff, BP2, EU
  • 103047 Clutch Spring
  • 103043 Bottom Gear, Wide
  • 103044 Torque Plate, Wide
  • 103994 Key, Shear Pin, Steel
  • 100821 Washer Clutch
  • 100773 Flat Locking Spring, 08 Function Only
  • 100766 Return Spring
  • 101509 Return Spring Helper
  • 101436 Rack Assembly
  • 100753 Cover Plate
  • 100762 Top Gear
  • 101993 Lock Slide
  • 104214 Adapter Plate, BP2, EU
• Fasteners
  • 106603 Washer, Flat, 1"x0.02 THK, J lever only
  • 100851 Washer, Flat, 1"x0.06 THK, All except J lever
  • 100775 Flat Washer
• Screw Packs
  • 102536-1 Screw, 10-24, Custom
  • PP-5378-105 Screw, Mach, 8-32 x 5/16 PPH
  • PP-5367-108 Screw, Mach, 6-32 x 1/2 PPH
  • 102264-2 Screw, Undercut, 1/4-20 x 3/8 PFH
• Dogging Parts
  • 100783 Cylinder Hex Nut
