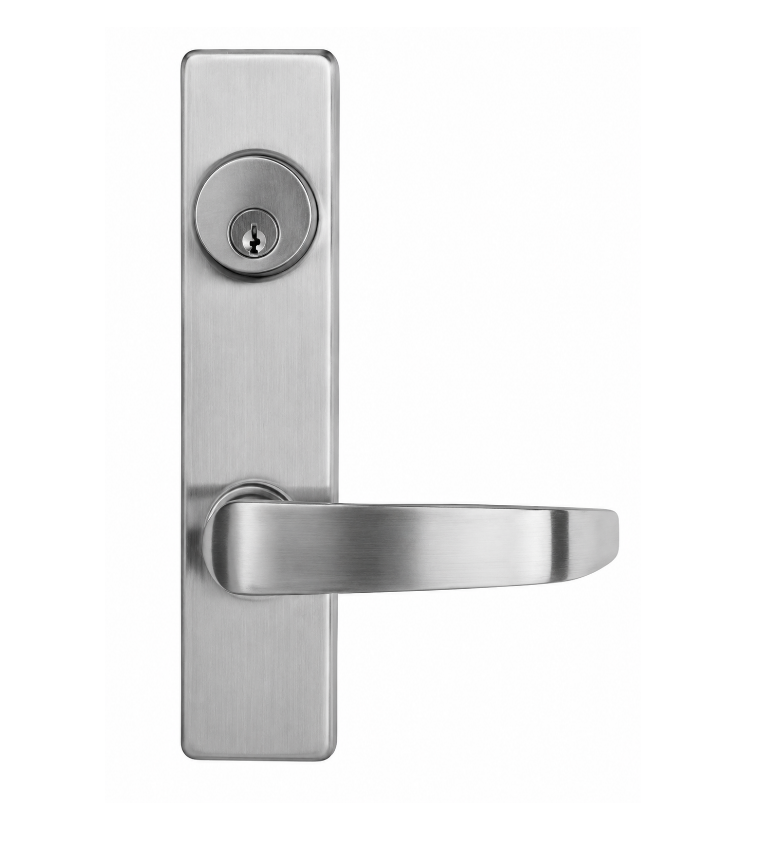

Detex Hardware Parts and Diagrams 09DN/DNV Series Trim

Diagram List

Detex 09DN/DNV Series Parts Diagram

Detex Hardware Parts and Diagrams 09DN/DNV Series Trim

Products by Part Type

Exit Device General Parts

• Lever Arms Kits & Parts
  • 106264-7 Lever Assy, Q, 626
  • 106264-14 Lever Assy, Q, 693
  • 106264-15 Lever Assy, Q, 695
  • 101376-7 Lever Assy, S, 626
  • 101376-14 Lever Assy, S, 693
  • 101376-15 Lever Assy, S, 695
  • 101375-7 Lever Assy, U, 626
  • 101375-14 Lever Assy, U, 693
  • 101375-1 Lever Assy, U, 695
  • 101374-7 Lever Assy, T, 626
  • 101374-14 Lever Assy, T, 693
  • 101374-15 Lever Assy, T, 695
  • 105673-4 Lever Trim Hardware Kit, STD, SVR
  • 105673-5 Lever Trim Hardware Kit, CVR
• Cylinders
  • 102281-7 Mortise Cylinder, 5 pin
  • 103800-626 Mortise Cylinder Housing, SFIC, 7 pin
  • 102287-7-DS Cylinder, Mortise 6 Pin, DS 26D
  • 100572-9 Cylinder Collar, Short
  • 100752-9 Cylinder Collar, Tall
  • 100868 Mortise Cylinder Position Plate
• Escutcheon
  • 100745-9 Escutcheon Assy, 08DN / 09DN, BP2
• Internal Trim Mechanism Parts
  • 101457 Spring Rack Assembly
  • 100877 Trim Compression Spring, Narrow
  • 101510 Helper Spring, Return-Narrow
  • 100865 Rack, Narrow
  • 103010 Gear & Torque Plate, Non-Clutching
  • 100774 Advantex Series Part, Shear Pin 0.125 x 0.400
  • 100821 Washer Clutch
  • 100777 Hex Stand Off
  • 100777-1 Hex Standoff, CVR (V)
  • 100762 Top Gear
  • 101994 Locking Bar
  • 101997 Return Spring, Locking Bar Return Spring, for 09 Function Trim
  • 101478 Shaft Extension Assembly, 08/09BN Trim
• Fasteners
  • 100851 Washer, Flat, 1"x0.06 THK, All except J lever
  • 105124-1 Wave Washer, .694 Diameter
• Tailpiece
  • 106694 Tailpiece Assembly, D Trim, CVR Universal
• Screw Packs
  • 102536-1 Screw, 10-24, Custom
  • PP-5367-108 Screw, Mach, 6-32 x 1/2 PPH
  • PP-5367-106 Screw, 8-32 x 3/8 PPH
  • PP-5367-110 Screw, 6-32 x 5/8 PPH SEMS, LS Trim
• Dogging Parts
  • 100783 Cylinder Nut for Cylinder Dogging
