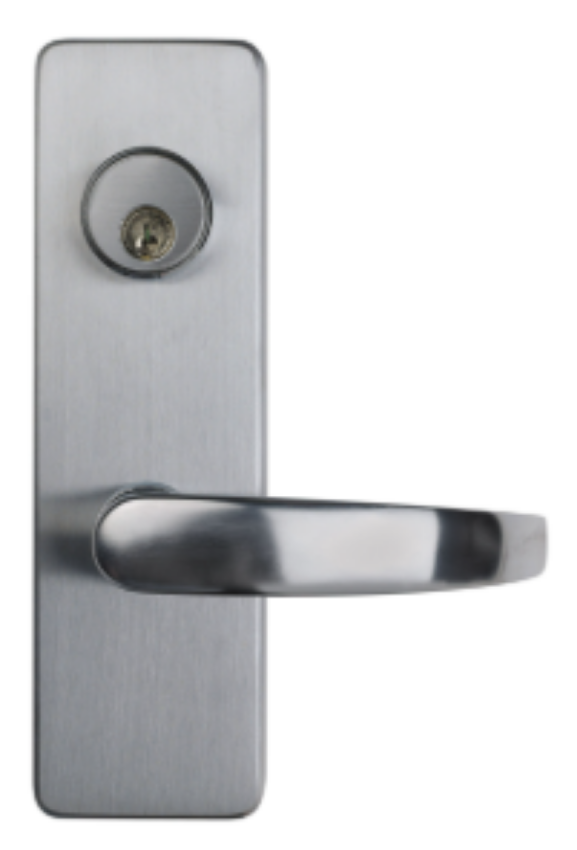

Detex Electric Unlock (EU) Series Trim

Looking to buy a new set? Buy here

Diagram List

Detex Electric Unlock (EU) Series (LHR Shown)

Detex Electric Unlock (EU) Series Trim

Products by Part Type

Exit Device General Parts

• Lever Arms Kits & Parts
  • 106264-7 Lever Assy, Q, 626
  • 106264-14 Lever Assy, Q, 693
  • 106264-15 Lever Assy, Q, 695
  • 101376-7 Lever Assy, S, 626
  • 101376-14 Lever Assy, S, 693
  • 101376-15 Lever Assy, S, 695
  • 101375-7 Lever Assy, U, 626
  • 101375-14 Lever Assy, U, 693
  • 101375-1 Lever Assy, U, 695
  • 101374-7 Lever Assy, T, 626
  • 101374-14 Lever Assy, T, 693
  • 101374-15 Lever Assy, T, 695
  • 104212-1 RHR Rack Assembly
  • 104212-2 LHR Rack Assembly
  • 104213-2 Lock Slide Assy LHR
  • 104213-1 Lock Slide Assy RHR
  • 105673-1 Lever Trim Hardware Kit, SVR
  • 105673-2 Mortise Lever Trim Hardware Kit
  • 105673-3 Lever Trim Hardware Kit, CVR
• Cylinders
  • 102281-7 Mortise Cylinder, 5 pin
  • 103800-626 Cylinder Housing
  • 100572-9 Cylinder Collar, Short
  • 100752-9 Cylinder Collar, Tall
• Escutcheon
  • 104210-9 Escutcheon Assy, BP1, EU, BP11 for EUV
• Internal Trim Mechanism Parts
  • 100771 Stop, Rotational
  • 100777 Hex Stand Off
  • 100777-1 Hex Standoff, CVR (V)
  • 103047 Clutch Spring
  • 103043 Bottom Gear, Wide
  • 103044 Torque Plate, Wide
  • 103994 Key, Shear Pin, Steel
  • 100821 Washer Clutch
  • 100766 Return Spring
  • 101509 Return Spring Helper
  • 101478 Shaft Extension Assembly
  • 103218 Mortise Shaft, Input
• Electronic & Solenoid Parts
  • 104209-1 24V Fail-Secure Solenoid
  • 104209-2 24V Fail-Safe Solenoid
  • 104209-3 12V Fail-Secure Solenoid
  • 104209-4 12V Fail-Safe Solenoid
  • 104205 Solenoid Alignment Lock, EU
  • 104207 Solenoid Plunger Bracket
  • 104208 Solenoid Bracket
• Cover Plate / Escutcheon Components
  • 104206-2 Machined Cover Plate LHR
  • 104206-1 Machined Cover Plate RHR
  • 106459-2 Machined Cover Plate LHR
  • 106459-1 Machined Cover Plate RHR
• Fasteners
  • 106603 Flat Washer for J Lever
  • 100851 Flat Washer 755 x 1.00 x .060 S.S
  • 105964 Wave Washer
  • PP-5067-8 Lockwasher, #8
• Tailpiece
  • 106694 Tailpiece Assembly, CVR
• Screw Packs
  • PP-5305-108 Machine Screw
  • 102536-1 Screw, 10-24, Custom
  • 102291-108 Screw, Mach, 6-32 x 1/2 SEMS, PPH
  • PP-5367-110 6-32 x 5/8 Screw
  • PP-5378-106 Screw, Mach, 8-32 x 3/8 PPH
  • PP-5378-104 Screw, Mach, 8-32 x 1/4" PPH
• Dogging Parts
  • 100783 Cylinder Nut for Cylinder Dogging
