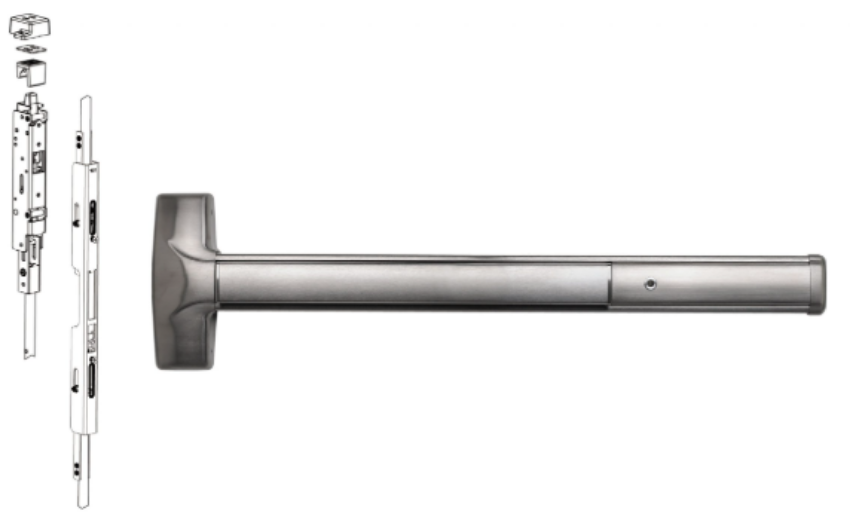

Detex ADVANTEX 80 / 81 CVR Series

Diagram List

Detex 80 / 81 Series Parts Diagram

Detex ADVANTEX 80 / 81 CVR Series

Products by Part Type

Exit Device General Parts

• Center Case Kits & Parts
  • 105500-160 S&R 80 x STD1 x RHR Centercase/Pushpad Assy
  • 105500-161 S&R 80 x STD1 x LHR Centercase/Pushpad Assy
  • 104111-3 Centercase, CVR, Wide, RHR
  • 104111-4 Centercase, CVR, Wide, LHR
  • 102353-9 Centercase Cover, Wide, Stainless Steel
  • 104171-1 Mounting plate, Wide, CVR, BP11
  • 104171-2 Mounting plate, Wide, CVR, BP13
• Cover Plate Kits & Parts
  • 100860-165 Fillerplate Subassembly, S&R, Hex Dogging, HD
• End Cap Kit & Parts
  • 101642-9 EC1 Ramped Endcap
  • 104304-9 EC2 Flush Endcap, Stainless Steel
  • 100147 Endcap bracket for EC1 (ramped) endcap w/o battery holder
  • 101093 Endcap bracket for EC1 (ramped) endcap w/ battery holder
  • 104303 Endcap bracket for EC2 (flush) endcap w/o battery holder
  • 104636 Endcap bracket for EC2 (flush) endcap w/ battery holder
• Dogging Parts
  • 100450 Hex Dogging Key
  • 100783 Cylinder Hex Nut
  • 102216-2 Hex Dogging Assembly
  • 102216 Cylinder Dogging Assembly
• Strikes
  • 105257-2 Top Strike Kit
  • 105235-1 CVR top strike pocket
  • 105246 CVR strike shim
  • 105236-1 CVR top strike insert
  • 105257-3 Replacement Strike Kit, 95B
• Vertical Latches & Parts
  • 104123-1 Top latch mounting bracket RHR
  • 104123-2 Top latch mounting bracket LHR
  • 104121-1 Top latch, Panic
  • 104121-2 Top latch, Fire
  • 104190-2 Bottom latch, HM application
  • 104166 Bottom Latch Mounting Bracket
• Vertical Rods & Parts
  • 104187 Outer top rod, 7' thru 8'
  • 105097 Outer top rod, 8'-1" thru 10'
  • 104172-1 Inner top rod, 7' thru 8'
  • 104172-2 Inner top rod, 8'-1" thru 10'
  • 105990-1 Center lift mechanism assembly, Top & Bottom
  • 105990-2 Center lift mechanism assembly, Top ONLY
  • Spring pin 3/16 x 1/2
  • 105296 Spring pin 3/16 x 13/16
• Miscellaneous Parts and Kits
  • 106431-2 Device Hardware Kit, CD, EC1
  • 106431-1 Device Hardware Kit, HD, EC1
  • 106431-3 Device Hardware Kit, EA, EC1
  • 106431-21 Device Hardware Kit, HD, EC2
  • 106431-22 Device Hardware Kit, CD, EC2
  • 106431-23 Device Hardware Kit, EA, EC2
