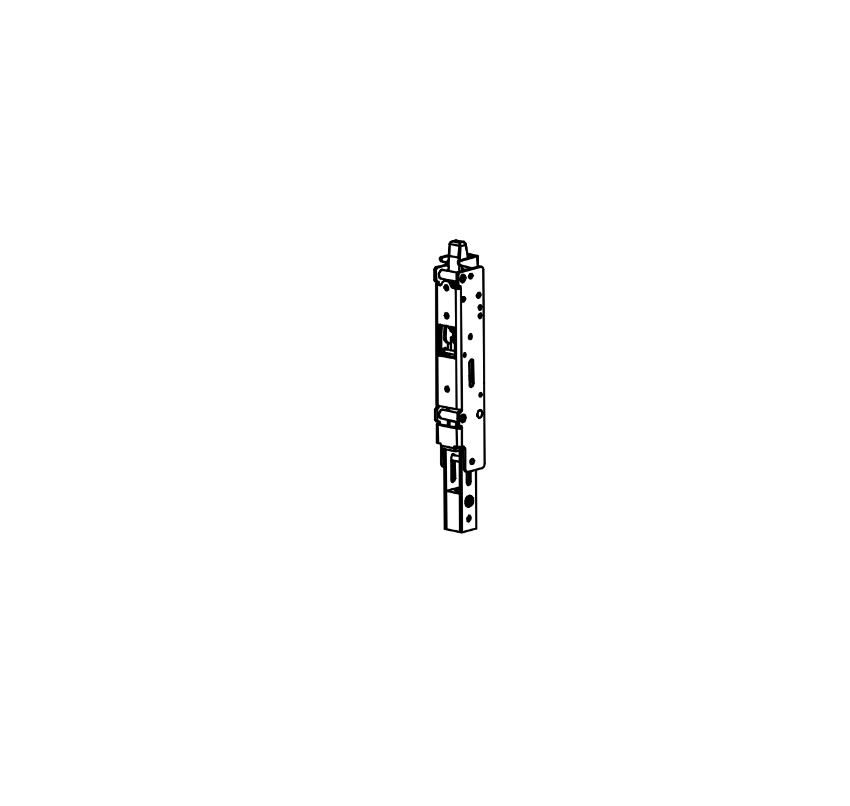

The Detex 104121-1 is the OEM top latch (panic) assembly for the Advantex Concealed Vertical Rod (CVR) exit device family. It's the top bolt mechanism- the upper latch that engages the top door frame strike on CVR-equipped panic hardware. When this component fails, the top bolt no longer projects cleanly into the top strike, and the CVR device can no longer properly secure the top of the door or re-engage the latch after each use. In life safety and fire exit applications, a failing top latch on a CVR device is both a code compliance issue and a security failure.

The 104121-1 is confirmed as the top latch (panic) across Detex's CVR installation documentation (Detex instruction sheet 104884), appearing in the parts breakdown for narrow and wide stile CVR devices alongside the companion bottom latch (104121-2), CVR bottom rod, top rod assemblies (104187 and 105097), and centerlift mechanism. Confirm your specific CVR series and door application before ordering.

What the Detex CVR Top Latch Does in the Panic Exit Device System

Concealed vertical rod exit devices differ fundamentally from rim exit devices. A rim device mounts surface hardware and projects a latch bolt horizontally into a rim strike on the door frame. A CVR device mounts the centercase surface-mount on the door face, but the vertical rods run concealed inside the door itself- one rod runs up to a top latch that engages the top door frame, and one rod runs down to a bottom latch or bolt engaging the door threshold or bottom frame.

The 104121-1 top latch is the upper terminus of this vertical rod system. The centercase pushpad, when depressed, retracts both the top and bottom bolts simultaneously through the centerlift mechanism connected to the vertical rods. The top rod connects to the 104121-1 using a 13/16" pin through a pre-drilled alignment hole- the installation instruction specifies aligning hole A in the rod with the hole in the top latch before tapping in the pin to secure the connection.

Detex's CVR design features a 6-position multi-step action in the top latch mechanism. This multi-step action keeps the top and bottom bolts retracted until the door physically closes, preventing premature latch re-engagement and providing more consistent re-latching. The top strike both secures the closed door and re-engages the latch bolts through this mechanism on door closure. This is a key technical differentiator of the Detex Advantex CVR system versus competitors, and the 104121-1 is the component that delivers that performance.

Detex Advantex Panic Hardware: CVR Series Compatibility

The 104121-1 top latch appears in CVR parts lists for multiple Advantex CVR series. The 70/F70 Series is for wood composite double doors. The 80/F80 Series is for wide stile hollow metal doors with 3-hour fire rating on the F80. The 81/F81 Series is the narrow stile hollow metal door variant. The 82/83 Series handles aluminum or FRP doors. The 87 Series is the high-security CVR variant. The 71 Series is a top-rod-only configuration for applications not requiring bottom rod engagement.

All these devices share the same CVR rod and latch architecture, with the same top latch part number across the family. The companion part to confirm is the bottom latch- the 104121-2- which is a separate assembly specifically for applications requiring active bottom bolt engagement.

Detex Panic Bar Parts for CVR Devices

SecurityParts stocks the complete Detex Advantex CVR parts catalog including centercase assemblies (narrow and wide), fillerplate subassemblies, centerlift mechanism assemblies, endcap brackets, top and bottom rod assemblies, and top strike kits for the full 60 through 87 Series range. All Detex CVR parts sourced here are OEM genuine Detex components, maintaining the 10-year mechanical limited warranty terms on Detex Advantex panic hardware. Free shipping on orders over $450.
