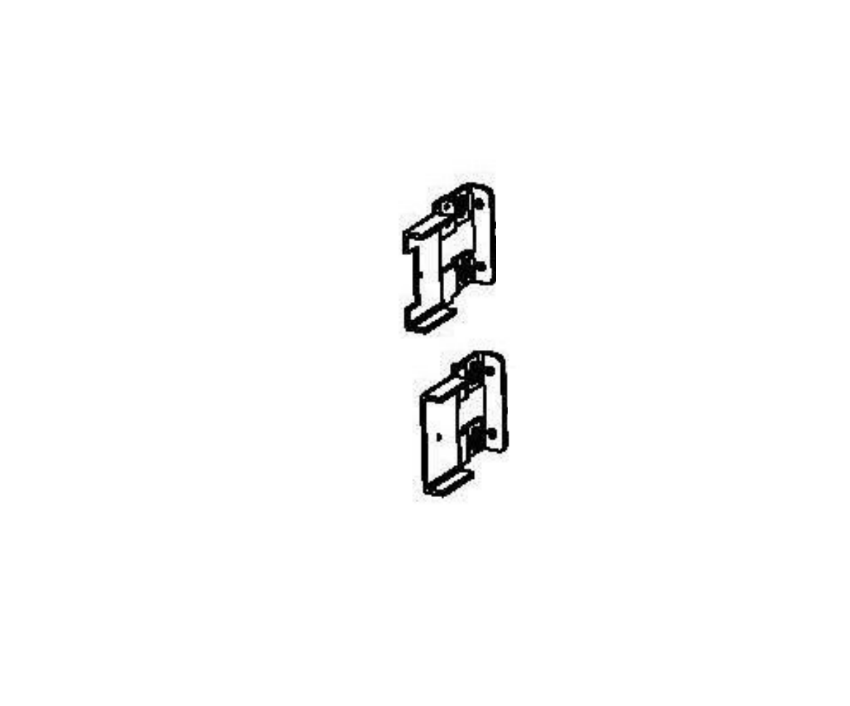

Detex Hardware Parts and Diagrams 100147 Endcap Bracket for EC1 Ramped Endcap

SKU: 100147

Detex Hardware Parts and Diagrams 100147 Endcap Bracket for EC1 Ramped Endcap

Detex Hardware Parts and Diagrams

SKU: 100147

Detex Hardware Parts and Diagrams 100147 Endcap Bracket for EC1 Ramped Endcap

Available (3 - 4 Weeks)

The Detex 100147 Endcap Bracket is a genuine OEM replacement component designed for EC1 ramped endcaps is compatible with Detex exit devices. It helps restore the original endcap mounting configuration for commercial door hardware maintenance and repair.

The Detex 100147 Endcap Bracket is a genuine OEM replacement part used to accurately secure and support the EC1 (ramped) endcap during the installation of compatible Detex exit devices. Proper bracket positioning is essential for correct exit device operation, and this mounting bracket is designed specifically for that purpose. This bracket is use for select Advantex Series. This component is engineered without a battery holder and is designed to provide robust, long-lasting stability to the end assembly.

We are your trusted source for commercial security, door hardware, access control, and OEM replacement parts.

Features

Genuine Detex OEM replacement part
Endcap mounting bracket for EC1 (ramped) endcap applications
Configured without a battery holder for non-battery powered configurations
Sized precisely as a factory-original heavy-duty mounting foundation

Benefits

Helps ensure accurate bracket placement and stable endcap anchoring during installation
Restores the original OEM installation configuration for premium security compliance
Supports proper exit device alignment by eliminating endcap movement and loose play
Simplifies maintenance with a genuine, drop-in OEM replacement part
Designed specifically for compatible Detex exit devices equipped with EC1 hardware

Compatibility

Detex Advantex 10/40 Series
Detex Advantex 20/50 Series
Detex Advantex 30 Series
Detex Advantex 60/61 Series
Detex Advantex 62/63 Series
Detex Advantex 70 Series
Detex Advantex 80/81 Series
Detex Advantex 82/83 Series
Detex Advantex 87 Series
Detex Advantex EA,EX,EB-W Series

$20.00

$16.00

Catalogs

What is the Detex 100147?

The Detex 100147 is a genuine OEM endcap bracket designed for EC1 ramped endcaps.

What exit device profiles are compatible with the Detex 100147 bracket?

This specific bracket is built exclusively to mount the EC1 ramped style endcap on compatible Detex panic hardware and exit devices.

Does this bracket include an integrated battery compartment?

No, this is the version configured without a battery holder. It is meant for standard mechanical configurations or hardwired setups that do not utilize onboard batteries at the endcap.

Does this replacement bracket come with the endcap shell or mounting screws?

No, it includes only the internal metallic endcap mounting bracket. The outer plastic/metal EC1 cover shell and finishing screws are sold separately.

Is this a genuine OEM replacement part?

Yes. It is a genuine OEM replacement part.

Models that Use this Part
