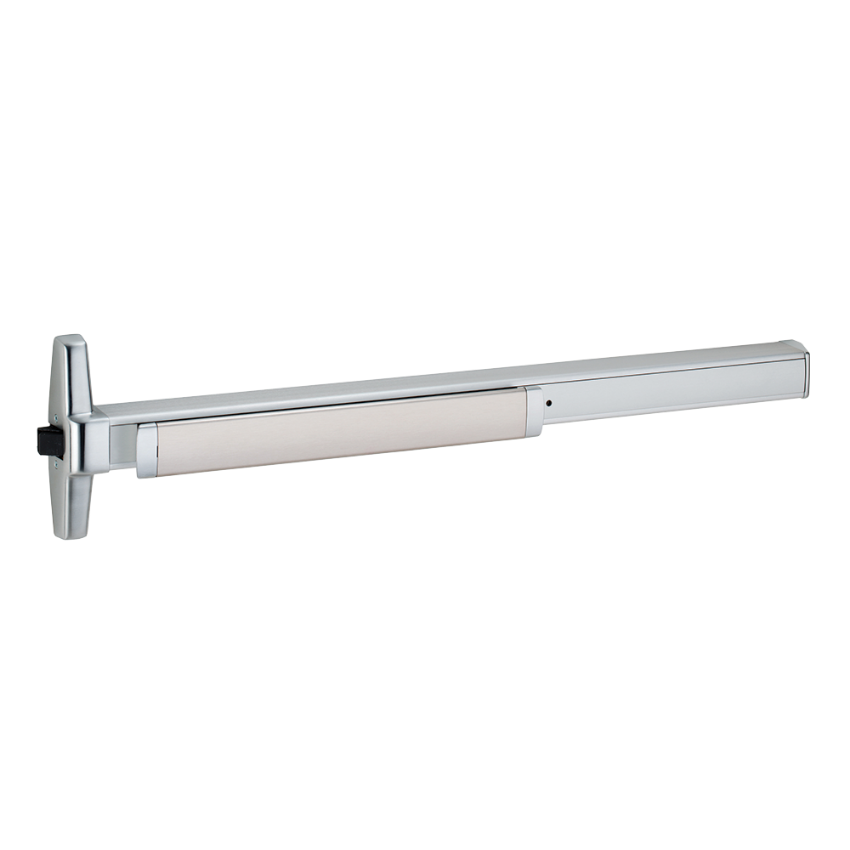

Product Overview:

• 33A and 35A for all types of single and double doors with mullion, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2014 Grade 1.
• The rim device is non-handed except when the SS (signal switch) option is used.
• 33A/35A fits door stiles as narrow as 1 3/4 " (44mm). Newly designed device has a one piece center case cover

Specifications:

Device Lengths:

• • 3' - 2'4' to 3' (711mm to 914mm) Door size
  • 4' - 2'10" to 4' (864mm to 1219mm) Door size

Device centerline from finished floor

• • 39 13⁄16" (1011mm)
  • 39 11⁄16" (1008mm) with mullion

Center case

• • 8 3/16" x 1 9/16" x 2 13/32" (208mm x 40mm x 62mm)

Mechanism case

• • 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Projection

• • Pushbar neutral – 3 13/16" (97mm)
  • Pushbar depressed – 3 1/16" (78mm)

Latch bolt

• • Deadlocking, 3⁄4" (19mm) throw

Finishes

• • US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US15 - Satin Nickel (35A only), US26D - Satin Chrome, 626AM - Satin Chrome, AntiMicrobial, US28 - Aluminum Anodized, 313AN - Dark Bronze, 315AN - Anodized Black

Fasteners and sex bolts (SNB)

• • Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors
  • #425 SNB furnished standard for end case
  • #325 SNB furnished standard for EO (exit only device)

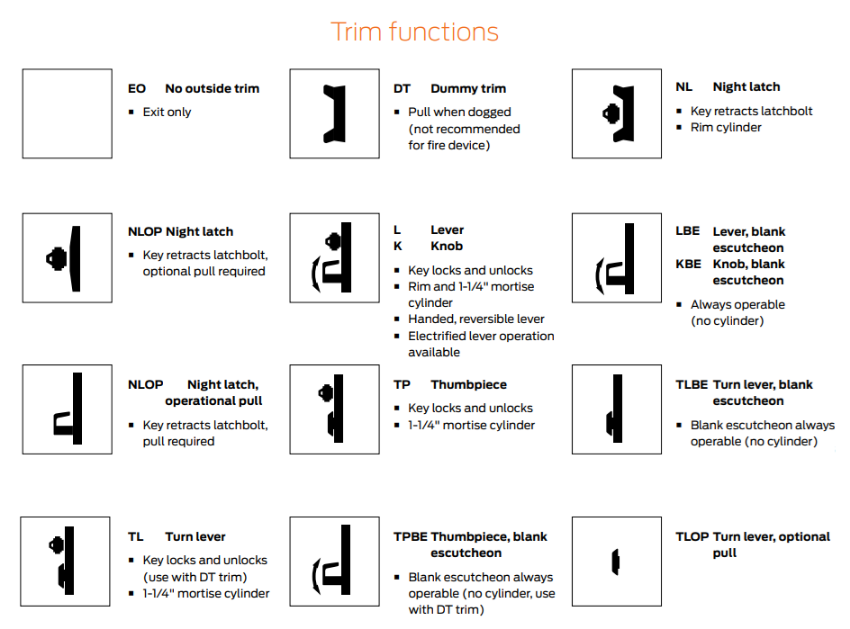

Features and Options:

• Electrified Options
  • ALK - Alarm exit kit
  • CX - Chexit delayed exit
  • ESL - Emergency secure lockdown
  • LX - Latch bolt monitor switch
  • LX-RX - Request to exit / latch bolt monitoring
  • QEL - Quiet electric latch retraction
  • RX - Request to exit, WP-RX waterproof option
  • RX-LC, LX-LC, LX-RX-LC - Low current option for RX, LX, LX-RX
  • SS - Signal switch
  • CON - Allegion Connect

Mechanical Options

• • AX Accessible device

  • GBK Glass bead kit

  • PN Pneumatic

  • QM Quiet mechanical

  • SEC Security screws

  • SG Safety glow

  • SNB Sex bolts

  • WH Weep holes

Dogging feature

• • Hex key dogging standard
  • Comes standard on 33A/35A rim exit devices

Dogging options

• • CD - Cylinder dogging
  • CDSI - Cylinder dogging with security indicator
  • HDSI - Hex dogging with security indicator
  • LD - Less dogging

Strikes

• • 1439 Roller - Ships standard, optional strikes available (Dull Black)
  • 299 Strike - Needs to be specified for hollow metal frames
