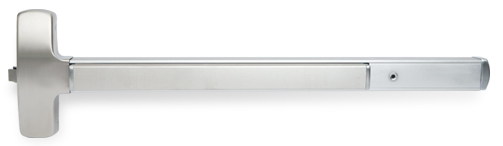

25 Series versus 24 Series exit devices

The 25 Series is the wide-stile exit device built for standard hollow metal or wood doors, while the 24 Series is the narrow-stile version sized for aluminum storefront doors. The two share the same internal mechanics, the 24 Series just has a smaller footprint to fit a narrower frame. Both are certified to ANSI A156.3 Grade 1 standards, UL listed for panic exit hardware, and available with A or B label fire ratings depending on configuration. Half-turn hex dogging comes standard on both, with cylinder dogging available where building policy requires a key to hold the device open rather than a mechanical half-turn.

Why facilities managers spec Falcon on high-traffic interior doors

Falcon fills a specific gap: Grade 1 performance that survives years of student or public abuse without flagship pricing. It's common to see a premium exit device on a building's main entrance and Falcon 25 Series on every classroom and interior stairwell door, since the door still needs to meet code and survive heavy daily cycling, but doesn't need the architectural finish options a front-of-house opening might call for.

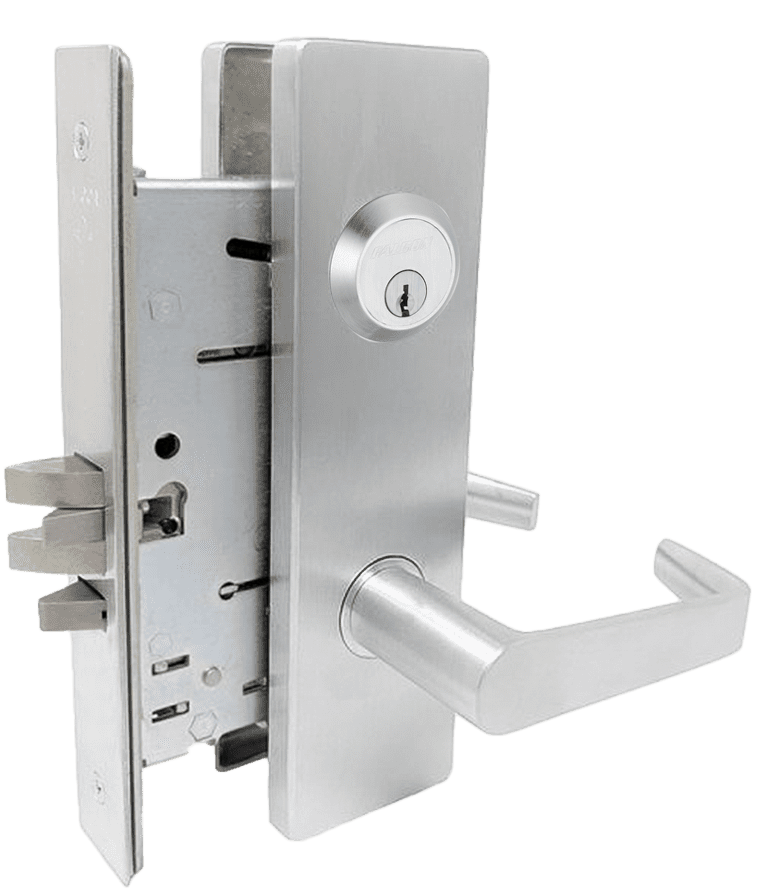

MA Series mortise lock and T Series cylindrical lock

The MA Series mortise lock pairs with Falcon's exit devices on openings that need a mortise-based lock function rather than a rim or vertical rod configuration. Because Falcon shares the Allegion parent company with Schlage, the MA Series is built for keyway compatibility with Schlage cylinders, which matters if the building already runs a Schlage master key system and wants Falcon hardware on a budget without sourcing a second keyway. The T Series cylindrical lock follows the same logic for openings using a cross-bore cylindrical prep instead of a mortise pocket.

Finishes and mounting details

25 Series devices are available in finishes including US3, US4, US10, US26, US26D, US28, US32, US32D, and 313AN, with mounting height standardized at 40-1/4 inches from centerline to finished floor per ANSI A115.1 prep. All mounting screws are concealed on standard applications, with through-bolted sexbolts available where the door core requires it.

Compare exit device options on our exit devices page, or see matching mortise lock components for MA Series installations.

Why order Falcon hardware parts from Security Parts

We've stocked Falcon commercial hardware since 2001, alongside the rest of the Allegion family. We carry OEM Falcon components for the 25 Series, 24 Series, MA Series, and T Series, ship most in-stock orders the same day, and offer free shipping on orders of $300 and up. If you're not sure which finish or function your existing Falcon device uses, send us the model number or a photo and we'll confirm the exact replacement.

What's the difference between Falcon 24 and 25 Series?

25 Series is wide-stile for standard doors, 24 Series is narrow-stile for aluminum storefront framing. Internal mechanics are the same.

Is Falcon hardware compatible with Schlage keys?

Yes, Falcon and Schlage are both Allegion brands, and the MA Series mortise lock is built for Schlage keyway compatibility.

Is Falcon as durable as premium exit device brands?

Falcon 25 Series is certified to the same ANSI A156.3 Grade 1 standard as premium lines, at a lower price point.

Does Falcon offer fire-rated exit devices?

Yes, A and B label fire ratings are available depending on door size and configuration.

Can I get cylinder dogging instead of hex dogging?

Yes, cylinder dogging is available as an option using a mortise cylinder with a standard cam, where policy requires key control over hold-open.

Are these genuine Falcon parts?

Yes, we stock OEM Falcon components alongside compatible aftermarket alternatives, and we'll tell you which is which before you order.

Do you offer same-day shipping on Falcon hardware?

Yes, most in-stock Falcon parts ship same day, with free shipping on orders of $300 and up.
