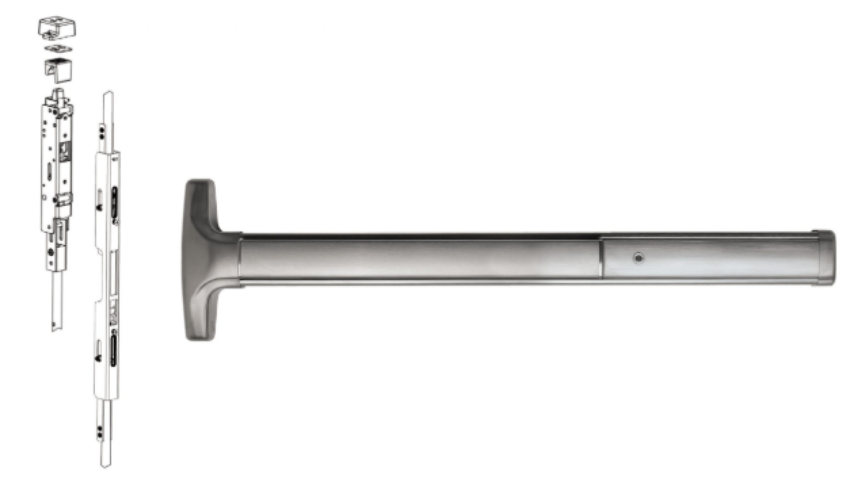

Detex ADVANTEX 60 / 61 CVR Series

Diagram List

Detex 60 / 61 CVR Series Parts Diagram

Detex ADVANTEX 60 / 61 CVR Series

Products by Part Type

Exit Device General Parts

• Center Case Kits & Parts
  • 105500-148 Centercase/Pushpad SubAssembly
  • 105500-130 S&R CVR Centercase/Pushpad Assy, 60 LHR
  • 104111-1 Centercase, CVR, Narrow, RHR
  • 104111-2 Centercase, CVR, Narrow, LHR
  • 104112-9 Centercase Cover, Stainless Steel, Narrow
  • 104148-1 Mounting Plate, Narrow, CVR, BP10
  • 104148-2 Mounting Plate, Narrow, CVR, BP12
• Cover Plate Kits & Parts
  • 100860-165 Fillerplate Subassembly, S&R, Hex Dogging, HD
  • 100860-166 Fillerplate Subassembly, S&R, Hex Dogging, CD
  • 100860-167 Fillerplate Subassembly, S&R, Hex Dogging, LD
• End Cap Kit & Parts
  • 101642-9 EC1 Ramped Endcap
  • 104304-9 EC2 Flush Endcap, Stainless Steel
  • 100147 Endcap bracket for EC1 (ramped) endcap w/o battery holder
  • 101093 Endcap bracket for EC1 (ramped) endcap w/ battery holder
  • 104303 Endcap bracket for EC2 (flush) endcap w/o battery holder
  • 104636 Endcap bracket for EC2 (flush) endcap w/ battery holder
• Dogging Parts
  • 100450 Hex Dogging Key
  • 100783 Cylinder Hex Nut
  • 102216-2 Hex Dogging Assembly
  • 102216 Cylinder Dogging Assembly
• Strikes
  • 105257-2 Top Strike Kit
  • 105246 CVR strike shim
  • 105235-1 CVR top strike pocket
  • 105236-1 CVR top strike insert
  • 105257-3 Replacement Strike Kit, 95B
• Vertical Latches & Parts
  • 104121-1 Top latch, Panic
  • 104121-2 Top latch, Fire
  • 104190-1 Door Application Bottom latch
• Vertical Rods & Parts
  • 104187 Outer top rod, 7' thru 8'
  • 105097 Outer top rod, 8'-1" thru 10'
  • 104172-1 Inner top rod, 7' thru 8'
  • 104172-2 Inner top rod, 8'-1" thru 10'
  • 105098 CVR Bottom Rod
• Miscellaneous Parts and Kits
  • 106431-2 Device Hardware Kit, CD, EC1
  • 106431-1 Device Hardware Kit, HD, EC1
  • 106431-3 Device Hardware Kit, EA, EC1
  • 106431-21 Device Hardware Kit, HD, EC2
  • 106431-22 Device Hardware Kit, CD, EC2
  • 106431-23 Device Hardware Kit, EA, EC2
