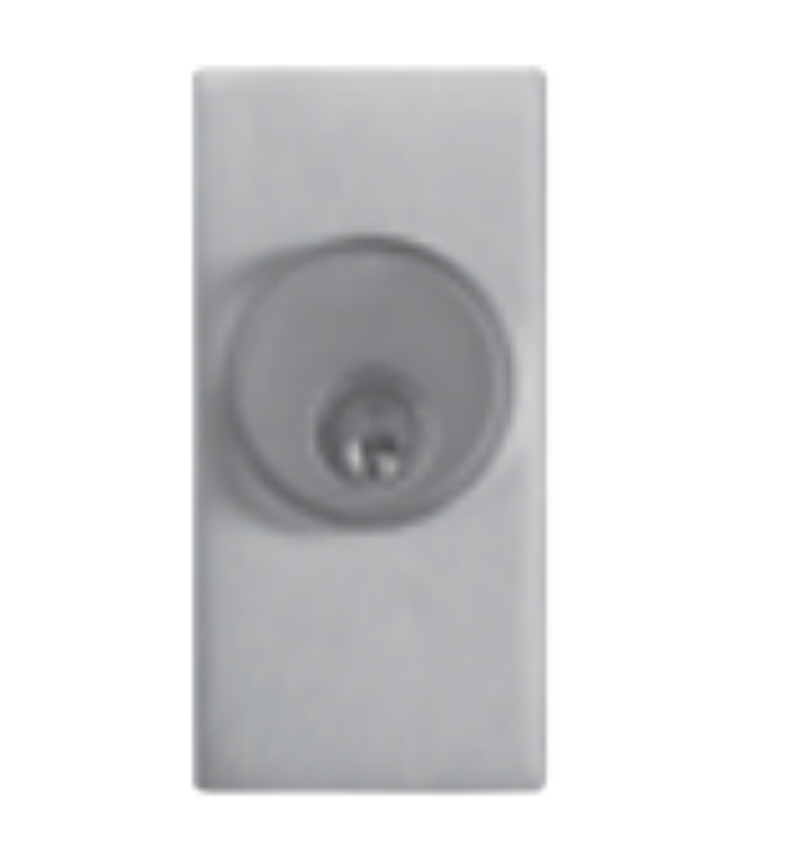

Detex Detex 03WS Series Trim

Diagram List

Detex 03WS Parts Diagram

Detex Detex 03WS Series Trim

Products by Part Type

Exit Device General Parts

• Trim and Hardware Kit
  • 101452-1 Hardware Kit, 03WS Trim
  • 100716-15, 03WS Trim Assembly
• Cylinders
  • ECL-445K-7 Rim Cylinder w/2 Keys, 6 Pin - Pinned 5
  • IC7R-626 Interchangeable Core Rim Cylinder
• Escutcheon
  • 100836 Escutcheon
• Fasteners
  • PP-5067-10 Lockwasher 1pc, #10 Size
• Tailpiece
  • 101454-1 Tailpiece Assembly
  • 101480-1 Tailpiece, .695 long
• Screw Packs
  • 101621-3 Screw, 1/4-20 x 2” PPH
  • 101621-2 Screw, 1/4-20 x 2-1/4” PPH
  • 101621-1 Screw, 1/4-20 x 3” PPH
