Picture of Detex

SKU: VRA-143

Detex VRA-143 Vertical Rod Assembly, Inside Locking Only

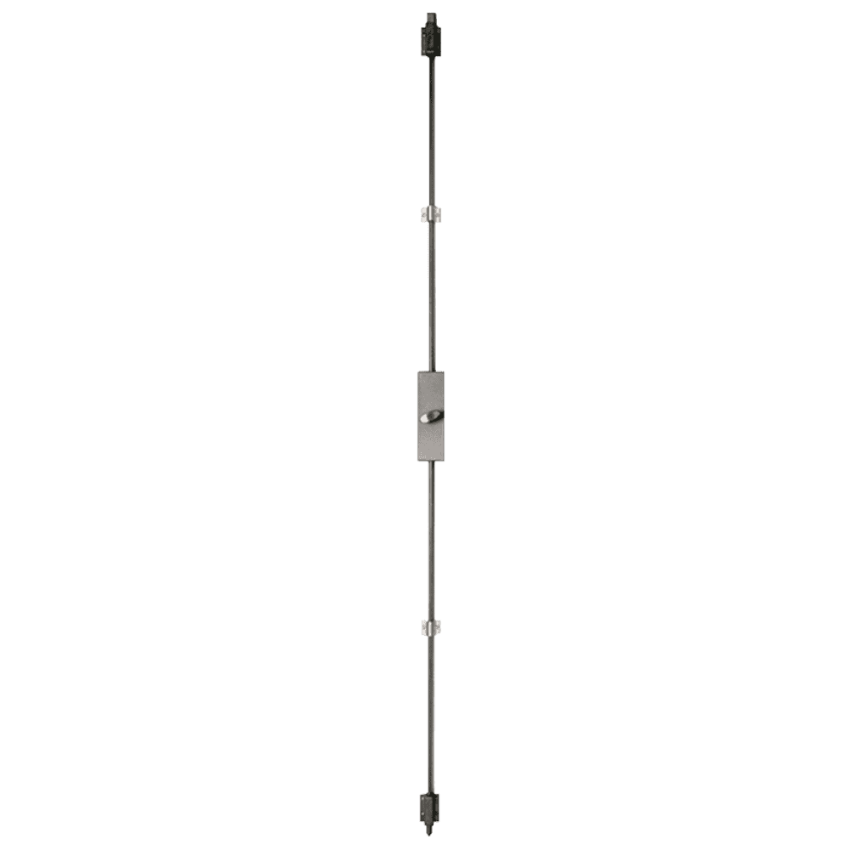

Picture of VRA-143 Vertical Rod Assembly, Inside Locking Only

Detex

SKU: VRA-143

Detex VRA-143 Vertical Rod Assembly, Inside Locking Only

The Detex VRA-143 Series Vertical Rod Assemblies provide two-point locking security for ECL-230D Exit Control Lock Systems. Available in Type B, Type C, and Type D configurations, these assemblies offer flexible solutions for single-door, paired-door, and independently operated double-door applications. Surface-mounted installation eliminates the need for mortising while providing durable top and bottom latching security.
*
*

Features

  • Heavy-duty 3/8" diameter bolts
  • Two-point locking security
  • Surface-applied installation (no mortise required)
  • Automatically released when the ECL-230D device is activated
  • Non-handed design
  • Accommodates 80"–120" doors
  • Steel rods and housing with zinc plating
  • UL Listed Exit Hardware

Benefits

  • Extra security through top and bottom latching
  • Easy installation
  • Improved exit control for outswinging doors
  • Durable commercial-grade construction
  • Suitable for various door configurations
  • Reliable emergency egress operation

Variation Descriptions

VRA-143B

    • Secures a single door or a pair of doors using one ECL-230D Exit Control Lock.
    • Allows outside access to the active door.
    • Active leaf opens both doors when activated.

VRA-143C

    • Designed for paired doors using two ECL-230D Exit Control Locks.
    • Active leaf opens first.
    • Inactive leaf remains locked until the ECL-230D is activated.
    • Provides enhanced security for double-door applications.

VRA-143D

    • Uses two ECL-230D Exit Control Locks and two VRA assemblies.
    • Each door leaf operates independently.
    • Ideal for facilities requiring separate operation of each door.
$791.00
$632.80
minus minus

Catalogs

The Detex VRA-143 Series Vertical Rod Assemblies provide two-point locking security for ECL-230D Exit Control Lock Systems. Available in Type B, Type C, and Type D configurations, these assemblies offer flexible solutions for single-door, paired-door, and independently operated double-door applications. Surface-mounted installation eliminates the need for mortising while providing durable top and bottom latching security.
