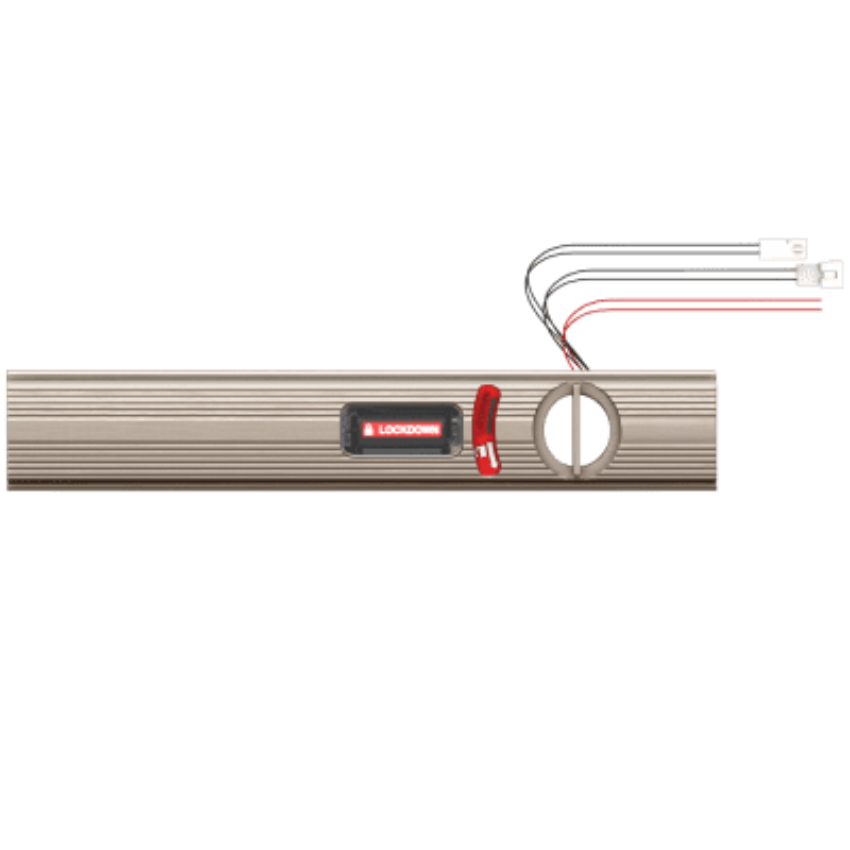

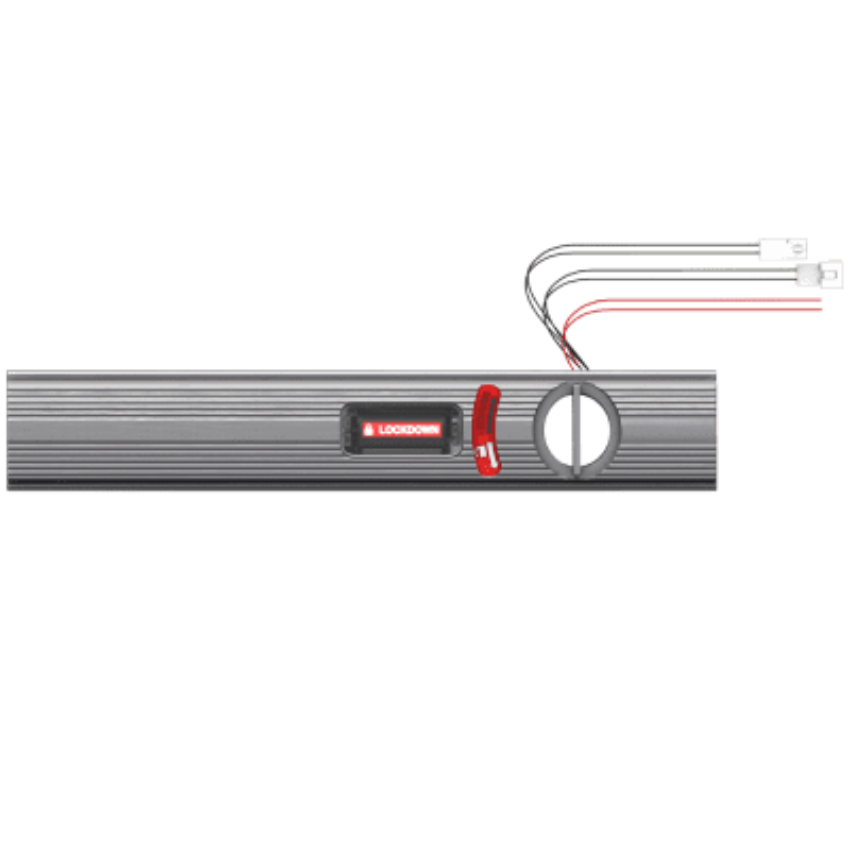

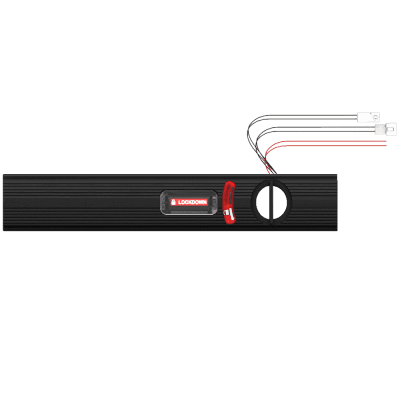

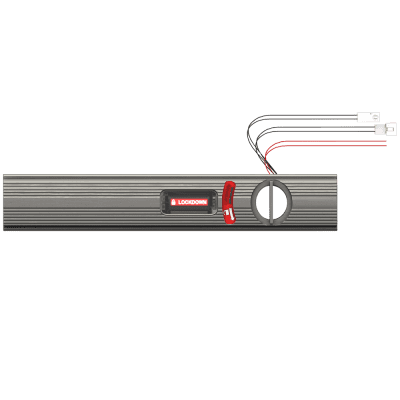

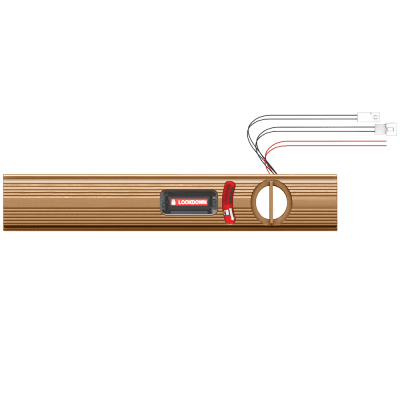

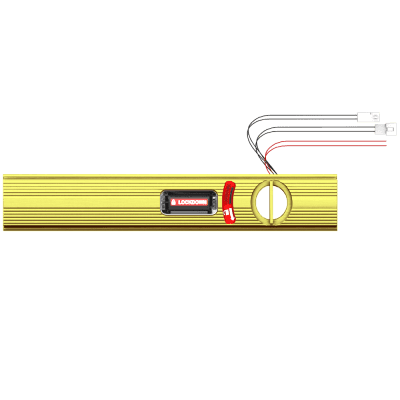

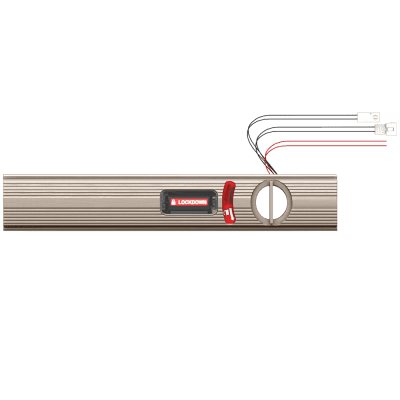

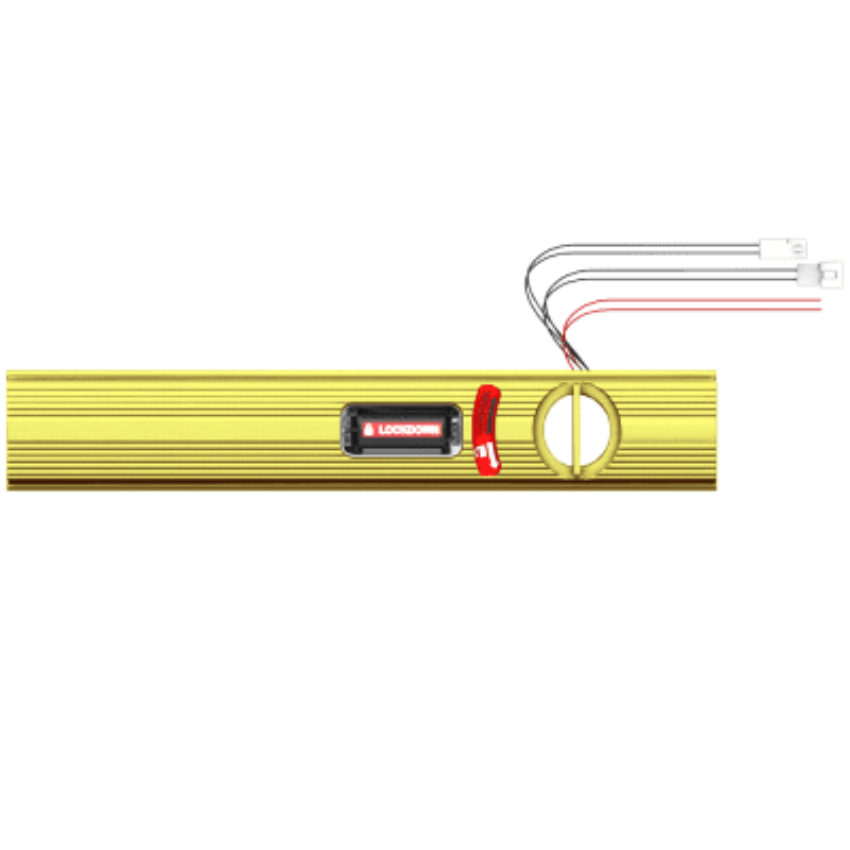

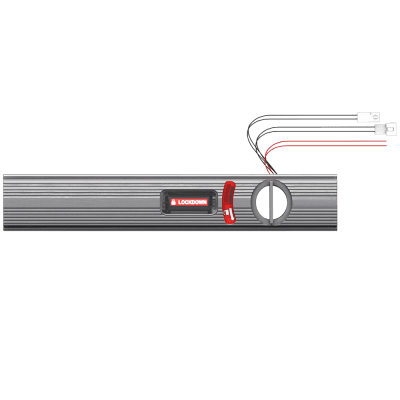

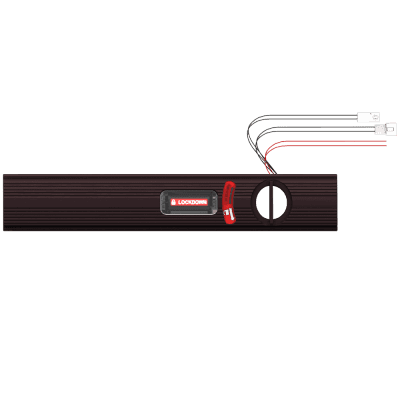

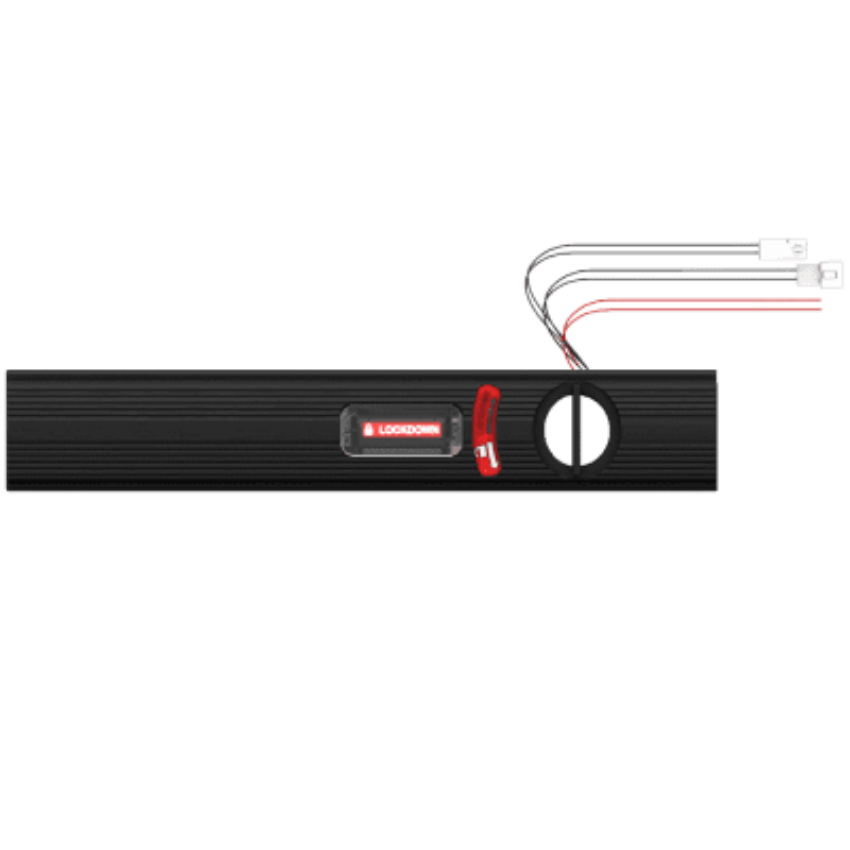

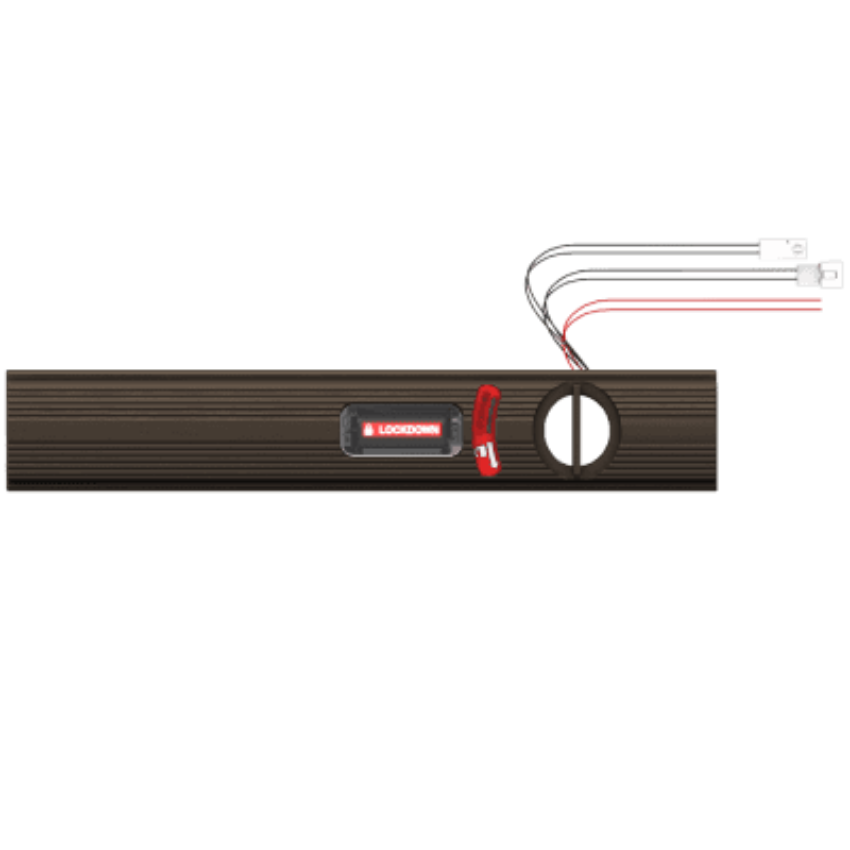

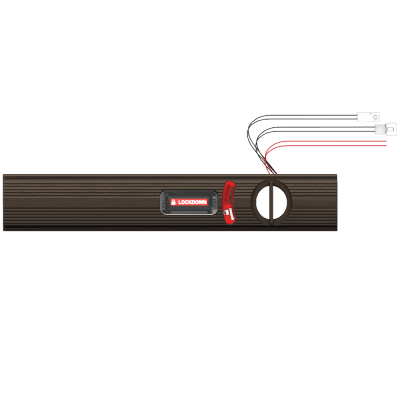

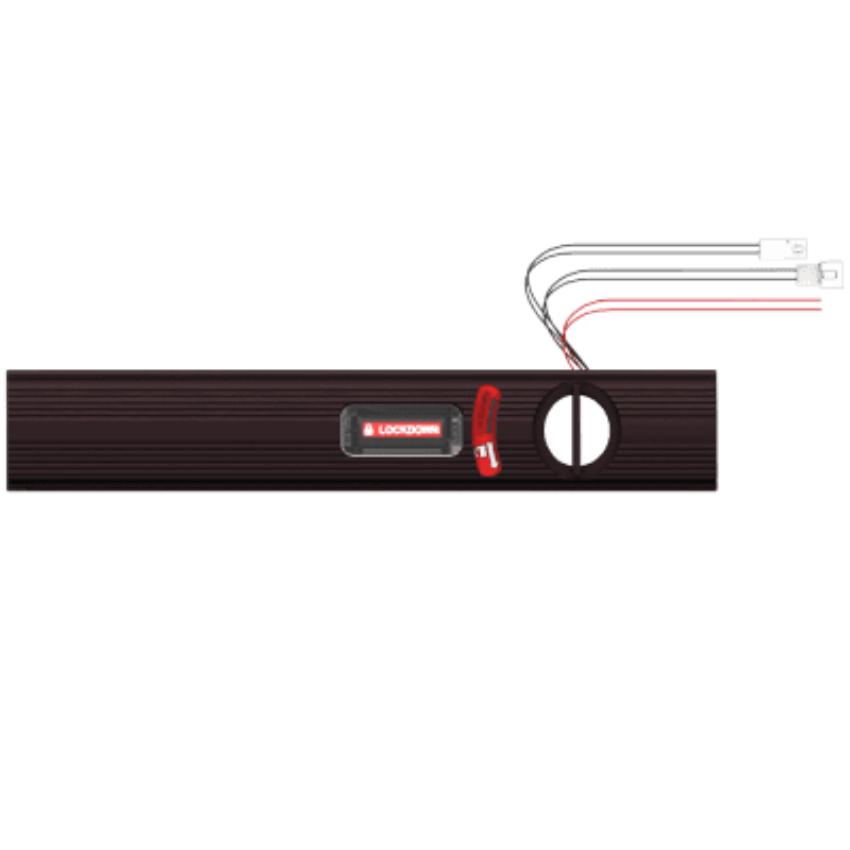

No mechanical dogging of QEL (SD-QEL, HD-QEL)
Unit requires a standard 1 ¼" (32mm) mortise cylinder with an inverted straight cam and compression ring and spring. Kit does not come with cylinder or thumbturn, must be ordered separately. Examples: Schlage conventional cylinder: 20-001 1 ¼" XQ11-949; Schlage thumbturn cylinder: 09-904 1 ¼" B502-191 XQ11-949; Schlage, ADA thumbturn cylinder: 09-904 1 ¼" XB11-720 B502-191 XQ11-949
Install in alignment with 2018 IBC 1010.2.8 NFPA 101 14.2.2.2.4 or per local AHJ - Only allowed with trim functions: NL, K-NL, L-NL, NL-OP, T-NL

No mechanical dogging of QEL (SD-QEL, HD-QEL)
Unit requires a standard 1 ¼" (32mm) mortise cylinder with an inverted straight cam and compression ring and spring. Kit does not come with cylinder or thumbturn, must be ordered separately. Examples: Schlage conventional cylinder: 20-001 1 ¼" XQ11-949; Schlage thumbturn cylinder: 09-904 1 ¼" B502-191 XQ11-949; Schlage, ADA thumbturn cylinder: 09-904 1 ¼" XB11-720 B502-191 XQ11-949
Install in alignment with 2018 IBC 1010.2.8 NFPA 101 14.2.2.2.4 or per local AHJ - Only allowed with trim functions: NL, K-NL, L-NL, NL-OP, T-NL

SPECIFICATIONS Handling: Non-Handed

Door Thickness: 1-3/8″-2″

Backset: 2-3/4″ standard, 2-3/8″, 3-3/4″, 5″ optional

Faceplate: Forged brass or stainless steel, 1-1/8″ x 2-1/4″

Latch Bolt: Stainless steel, 1/2″ throw, deadlocking on keyed functions

Strike: ASA, 1-1/4″ x 4-7/8″ x 1-5/16″ standard, T-strike optional

Standard Cylinder: 6 pin brass, Schlage 'C' keyway, 2 keys per cylinder

Door Prepatation: Standard 161 door prep with 2-3/4" (70mm) center to center thru-bolt

Warranty:10 years linited for mechanical, 5 years for finishes

CODE COMPLIANCE:

ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified

UL - UL 10C 3-Hour Rated
