Features

• Single point, 1" throw dead bolt
• Saw resistant dead bolt
• Corrosion resistant alloy lock body
• 100 decibel alarm, powered by 9-volt battery (included)
• Accepts 5-pin through 7-pin standard and interchangeable core rim cylinders
• Resetting the alarm can only be accomplished with a control key
• Non-handed
• Locking and unlocking the dead bolt always arms and disarms the alarm

Benefits

• Attack resistant design withstands over 2200 lbs. of outside pull force
• Proven durability and reliability at a reasonable price
• Reduces employee and customer theft
• Easy to install
• Time tested construction resists attack from the inside
• Durable steel plate with photo luminescent sign absorbs light to then “glow in the dark” when lights are dimmed
• Easy to see if the lights go out
• Straightforward operation that everone understands

Technical Information

• Door Types - Wood, Hollow Metal or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4"

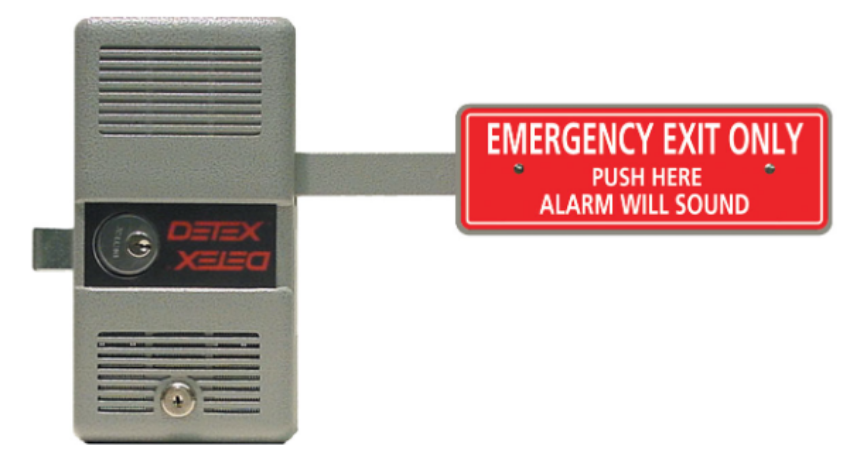

• Minimum standard door width for ECL-230D is 20"
• Door Stile - Fits minimum 5-3/4" with ECL-437K Strike (Std.)
• Door Stile - Fits minimum 1-7/8" with ECL-475 Kit
• Machine and Sheet Metal Screws (Std.)
• Optional Sex Nuts or Security Torx Screws Available

Double Door Requirements

• • (1) ECL-230
    (1) RC65
    (1) ECL-435K
    (1) DDH-2250
•                 or
  • (1) ECL-230
    (1) RC65
    (1) VRA-143
           or
  • (2) ECL-230D
    (2) RC65
    (1) 90KR
