Features

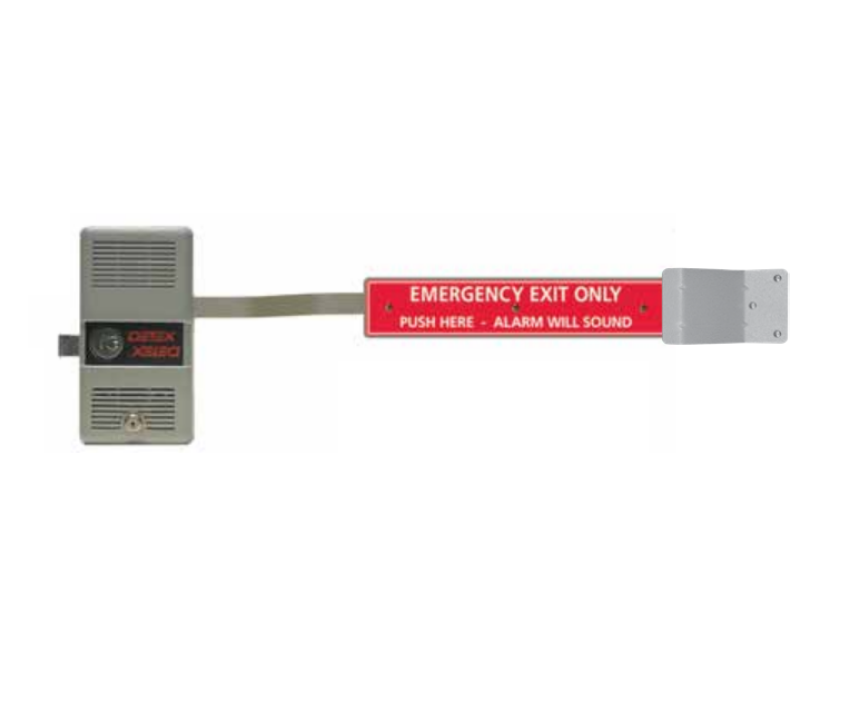

• Long-bar panic hardware design for 36-inch doors
• Single-point deadbolt with 1-inch throw
• Saw-resistant deadbolt construction
• Powerful 100 dB battery-operated alarm
• Includes 9-volt battery
• Corrosion-resistant alloy lock body
• Non-handed design for easier installation
• Alarm automatically arms and disarms when locking or unlocking
• Compatible with 5-pin, 6-pin, and 7-pin rim cylinders
• Alarm reset requires a dedicated control key
• Durable steel plate with photo-luminescent emergency sign
• Gray finish standard
• English push plate sign included standard
• Surface strike included (ECL-437K)

Benefits

Enhanced Exit Security

• • Helps prevent unauthorized use of emergency exits while maintaining compliance with life safety requirements.

Theft Reduction

• • Reduces employee and customer theft by controlling access through secondary exit doors.

High Resistance to Forced Entry

• • Attack-resistant construction withstands over 2,200 lbs. of outside pull force, providing exceptional door security.

Emergency Visibility

• • Photo-luminescent signage absorbs ambient light and glows in low-light or power outage conditions for improved visibility.

Reliable Alarm Protection

• • Built-in 100-decibel alarm immediately alerts personnel when unauthorized exit attempts occur.

User-Friendly Operation

• • Simple push-bar design ensures occupants can easily understand emergency exit operation.

Proven Durability

• • Time-tested construction provides dependable long-term performance in commercial, industrial, institutional, and retail environments.

Technical Information

• Door Types - Wood, Hollow Metal or Aluminum
• Door Thickness - Fits standard 1-3/4" - 2-1/4"
• Minimum standard door width for ECL-230D is 34"
• Door Stile - Fits minimum 5-3/4" with ECL-437K Strike (Std.)
• Door Stile - Fits minimum 1-7/8" with ECL-475 Kit
• Machine and Sheet Metal Screws (Std.)
• Optional Sex Nuts or Security Torx Screws Available

Double Door Requirements

• • (1) ECL-230
    (1) RC65
    (1) ECL-435K
    (1) DDH-2250
•                 or
  • (1) ECL-230
    (1) RC65
    (1) VRA-143
           or
  • (2) ECL-230D
    (2) RC65
    (1) 90KR
