Detex EAX-3500 Series Timed Bypass Exit Alarm and Rechargeable Battery

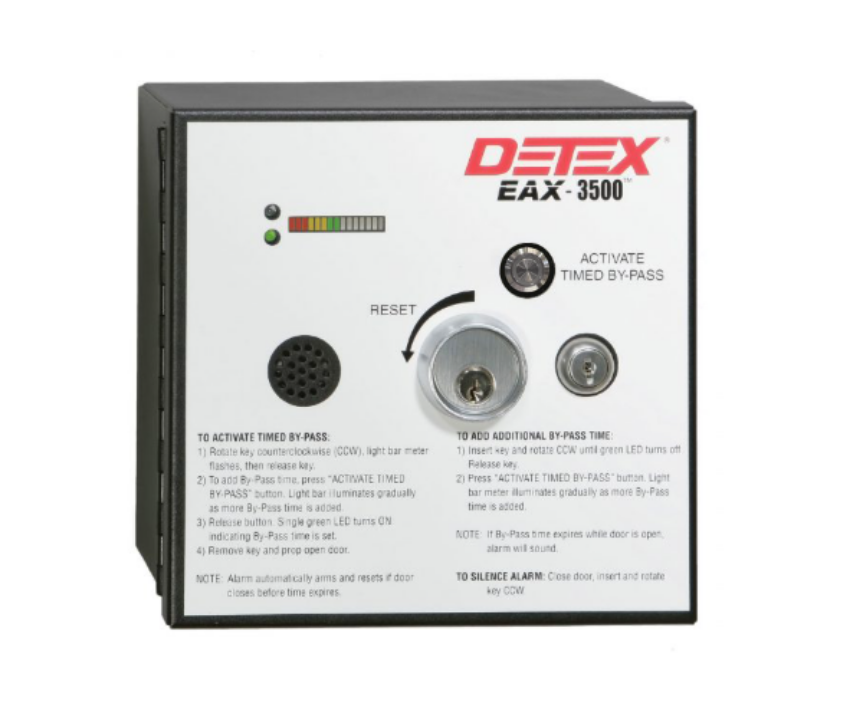

Picture of EAX-3500 Series Timed Bypass Exit Alarm and Rechargeable Battery

Detex

SKU: EAX-3500

Detex EAX-3500 Series Timed Bypass Exit Alarm and Rechargeable Battery

The Detex EAX-3500 is a hardwired exit alarm with a rechargeable backup battery and timed bypass feature for deliveries and trash removal. Its 100 dB alarm sounds during unauthorized exit attempts and reminds staff to close and secure the door after temporary access.

Features

  • Hard-wired low voltage power with rechargeable battery insures uninterrupted secure power feed
  • Maximum allowable bypass time can be factory set or field-adjusted to 5, 10, 20 or 40 minutes
  • Bypass time is easily set using two simple slide jumpers, located inside secured enclosure
  • 100dB alarm, powered by 12 to 24 VAC and rechargeable backup battery (included)
  • Low battery alert
  • Rechargeable backup battery provides 72-hours of operation
  • Timed bypass allows alarm to remain bypassed for allotted minutes, automatically rearming upon door closing
  • Accepts 5, 6 or 7-pin standard and interchangeable core mortise cylinders with a standard Yale cam
  • Patented cam assembly automatically adjusts for different size/length cylinders without the use of additional spacers or cylinder collars
  • Resetting the alarm can only be accomplished with a control key

Benefits

  • Allows manager to temporarily bypass the alarm, but does not allow the alarm to be turned off
  • Reminds manager to close and secure the door, minimizing door prop time
  • Minimizing door prop time saves energy cost
  • Minimizing door prop time reduces exposure to theft and threat of robbery
  • Simple, on-the-cover instructions make operation easy
  • LEDs illustrate armed status and bypass time, allowing quick easy reference
  • Alarm demands attention even in noisy environments
  • Tamper-resistant housing and circuits prevent dishonest employees from defeating alarm
  • Mortise cylinder sold separately, allowing alarm to be keyed to existing master-key system, helping to maintain key control

Device Type

  • EAX-3500 - 24VAC/DC Hardwired Timed Bypass Exit Alarm with Rechargeable Battery
  • EAX-3500FK - Kit 24VAC/DC Hardwired Timed Bypass Flush Exit Alarm with Rechargeable Battery, Flush Door Contacts, Plug-in Transformer
  • EAX-3500SK - Kit - 24VAC/DC Hardwired Timed Bypass Surface Exit Alarm with Rechargeable Battery, Surface Door Contacts, Plug-in Transformer

Technical Information

  •  Machine and Self Drilling Screws (Std)
  •  Amp Draw
    -.083 Amps @ 24 VDC (Alarmed)
    - .110 Amps @ 24 VDC (Door Prop)
$1,496.00
$1,211.76
