Picture of Detex

SKU: EAX-300

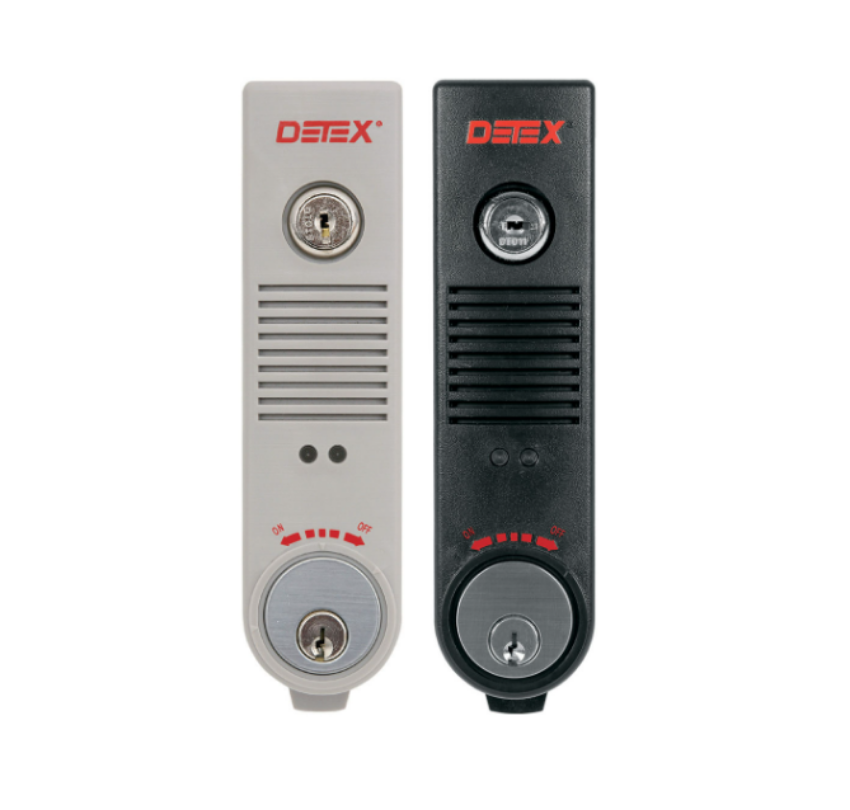

Detex EAX-300 Series Battery Powered Door Propped Alarm

Picture of EAX-300 Series Battery Powered Door Propped Alarm

Detex

SKU: EAX-300

Detex EAX-300 Series Battery Powered Door Propped Alarm

The Detex EAX-300 Series is designed for doors that allow entry and exit but must not be held or propped open. With field-selectable door-open times from 1 second to 4 minutes and a compact design, it offers quick and easy installation with flexible monitoring.
*
  • GY - Grey
    GY - Grey
    Not available
  • BK - Black
    BK - Black
    Not available

Features

  • Secure, tamper resistant housing
  • Patented plastic template assures accurate installation by providing foolproof alignment with internal magnetic door contact
  • Tapered cover allows for installation on narrow stile doors
  • Intelligent circuit senses the external magnet location automatically and sets the correct door handing
  • 100 dB piezo alarm
  • 9VDC battery operated with Low Battery Alert
  • LED visual arming indicators

Benefits

  • Low cost, solution to propped open doors
  • Door or wall mount
  • Helps keep energy costs down by ensuring doors are closed
  • Quick, easy installation saves time and money
  • Alarm silences when door is closed, no waiting for key-holder to arrive

Mechanical Option

  • SK1 Kit allows for wall mounting and includes (1) white MS-1039S door contact
  • SK2 Kit allows for wall mounting and includes (2) white MS-1039S door contact
  • SK3 Kit allows for wall mounting and includes (1) brown MS-1059S door contact
  • SK4 Kit allows for wall mounting and includes (2) brown MS-1059S door contacts
  • SK5 Kit allows for wall mounting and includes (1) grey MS-2049S door contact
  • SK6 Kit allows for wall mounting and includes (2) grey MS-2049S door contact
  • KS - Key Stop, factory installed
  • SI - Status Indicator On

Electrical Option

  • Weatherized for use on gates or doors that are subjected to inclement weather

Technical Information

  • Machine and self-drilling screws
  • Optional Cylinder Nut Wrench
$391.00
$316.71
