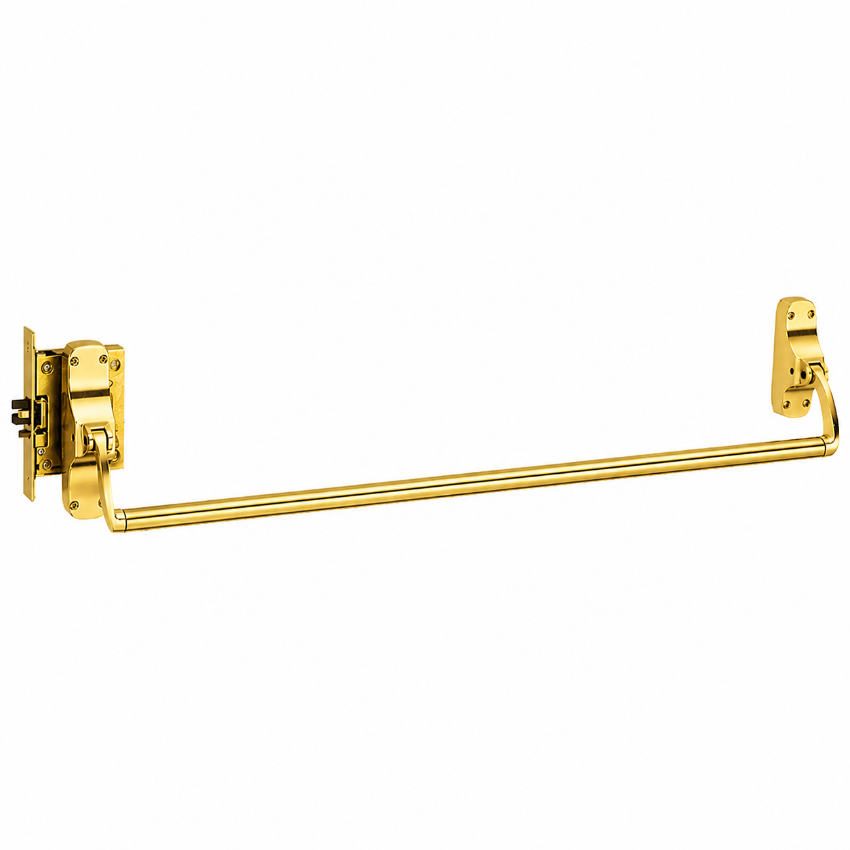

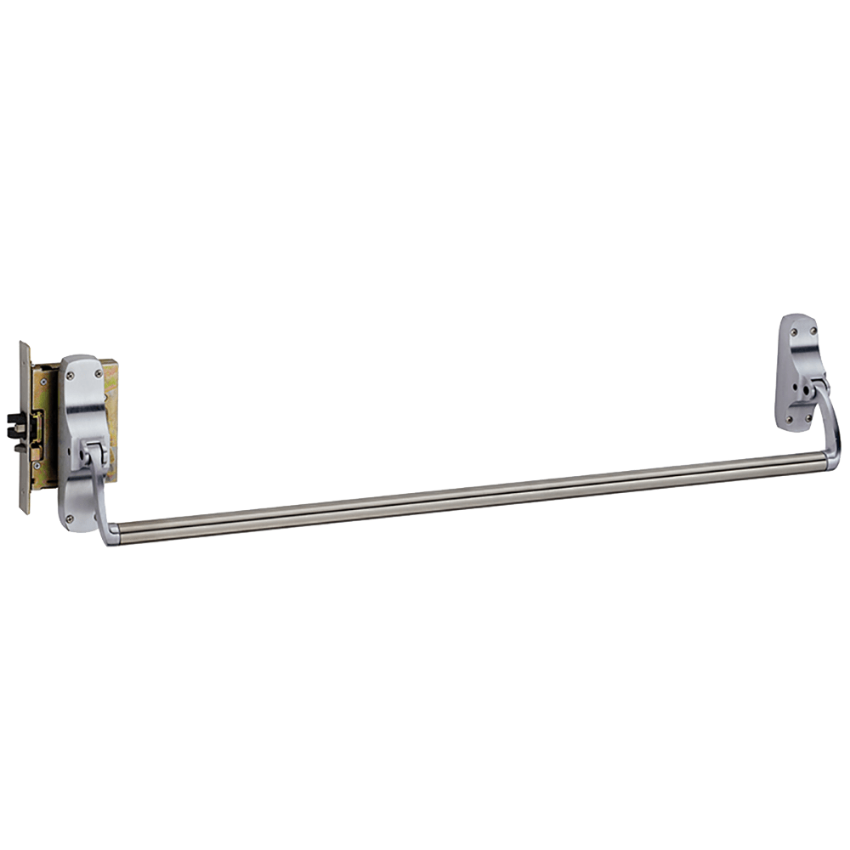

Product Overview:

• 8875 mortise lock devices for all types of single or double doors, UL listed for accident hazard installations.
• Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4-3/4" (121 mm).
• The 7500 mortise lock is equipped with a 3/4" (19 mm) anti-friction latch bolt which is field reversible without removing the lock from the door.
• It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
• Field selection of functions are furnished standard.
• TP and K function may be field selected by turning down a set screw in mortise lock body.
• Electric locking or unlocking options are available.

Click Here for 8875EO-F Mortise Lock Fire Rated Exit Device

Specifications:

Device Functions:

• • Device ships EO, NL, TP, L, K

Handing

• • Handed

Crossbar Lengths:

• • 36" for 3' door
  • 48" for 4' door

Device Centerline

• • 39-13/16"

Crossbar centerline to finished floor

• • 36-13/16" (935 mm) at center

Latch bolt height to finished floor

• • 40-3/32" (1018 mm) at center

Lock Stile Case

• • 8-1/4" x 2 x 15/16" (210 mm x 51 mm x 24 mm)

Hinge Stile Case

• • 6" x 1-3/4" x 15/16" (152 mm x 44 mm x 24 mm)

Crossbar Tubing

• • 1" (25 mm) outside diameter

Projection

• • Neutral – 4-7/8" (124 mm)
  • Depressed – 4" (102 mm)

Latch bolt

• • Deadlocking – 3/4" (19 mm) throw

Finishes

• • 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D), 643E, 693 (SPBLK), 619 (US15)

Fasteners and sex bolts (SBN)

• • Includes screw pack for 1-3/4" (44 mm)
  • 2-1/4" (57 mm) thick metal or wood doors

Features and Options

Electrified Options

• • E8875 - Electric mortise lock device
  • RX - Crossbar monitor switch

Mechanical Options

• • RCB - Reinforced crossbar
  • KN - Knurled crossbar

Dogging Features

• • Hex key dogging standard

Strike

• • 575 - Dull Black
