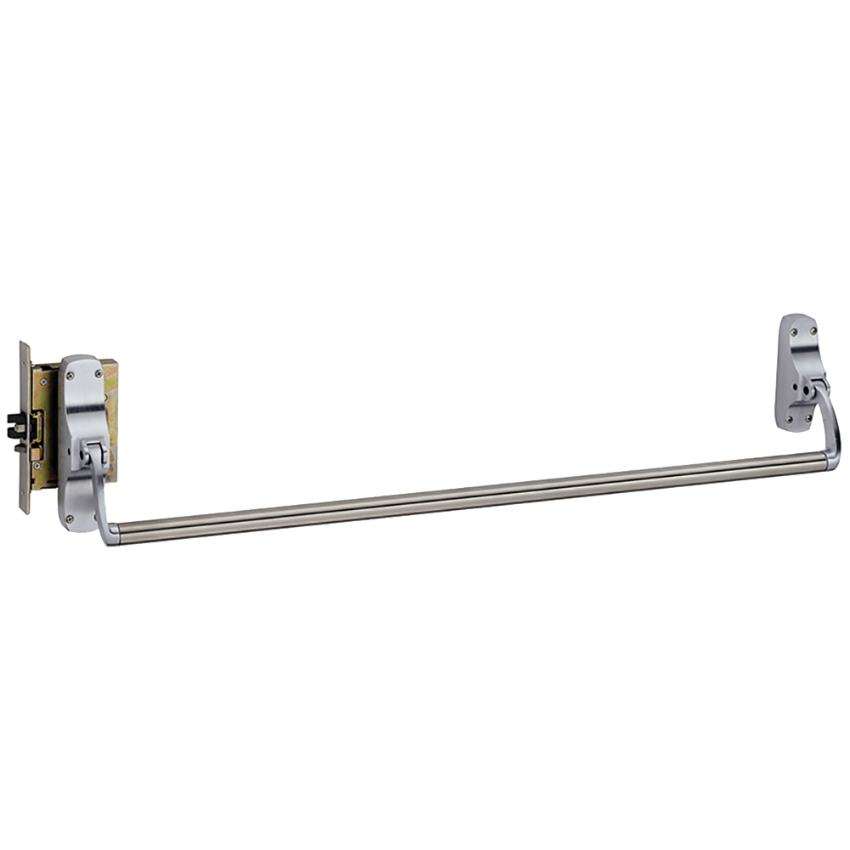

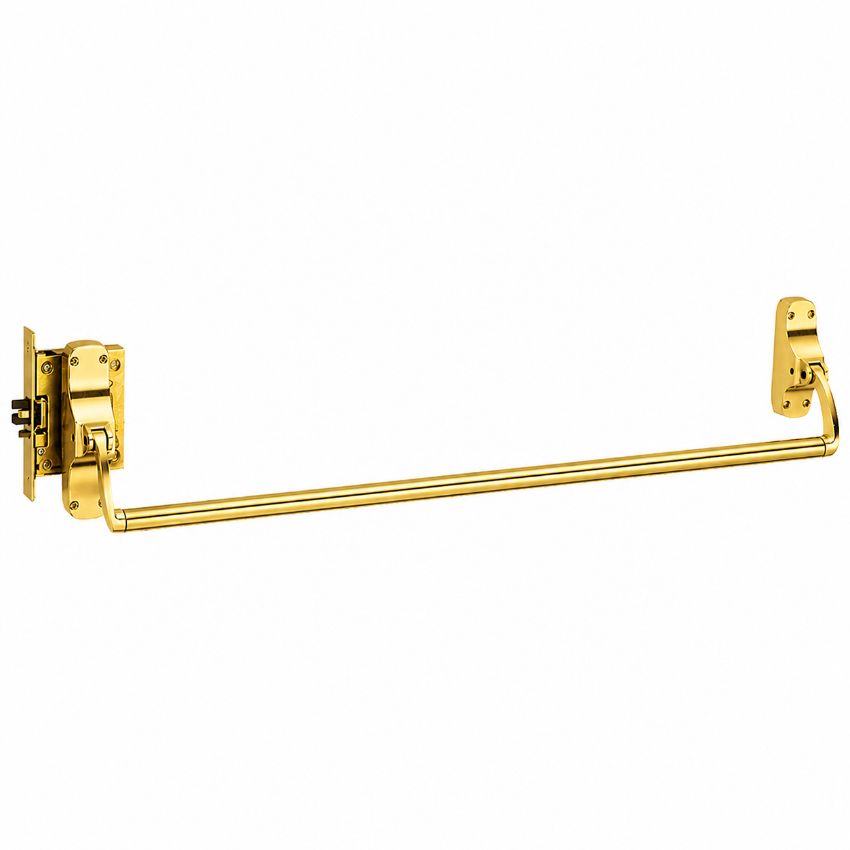

Product Overview:

• 8875-F mortise lock fire exit devices for all types of 4' X 8' (1219 mm X 2438 mm) single and 8' X 8' (2438 mm x 2438 mm), UL listed, 3 hours.
• Fits door stiles as narrow as 4 3/4" (121 mm). The 7500 mortise lock is field reversible without removing the lock from the door.
• It has a non-handed auxiliary bolt for deadlocking and a faceplate with an adjustable bevel.
• Field selection of functions are furnished standard.
• TP and K function may be field selected by turning down a set screw in mortise lock body.
• Electric locking or unlocking options are available.

Specifications:

Device Functions:

• • Device ships  EO, DT, NL, TP, L, K

Handing

• • Field reversible

Crossbar Lengths:

• • 36" for 3' door
  • 48" for 4' door

Device Centerline

• • 39-13/16"

Crossbar centerline to finished floor

• • 36-13/16" (935 mm) at center

Lock Stile Case

• • 8-1/4" x 2-3/4" x 15/16" (210 mm x 70 mm x 24 mm)

Hinge Stile Case

• • 6" x 1-3/4" x 15/16" (152 mm x 44 mm x 24 mm)

Crossbar Tubing

• • 1" (25 mm) outside diameter

Projection

• • Neutral – 4-3/4" (121 mm)
  • Depressed – 4" (102 mm)

Latch bolt

• • Deadlocking – 3/4" (19 mm) throw

Finishes

• • 605 (US3), 606 (US4), 612 (US10), 613 (US10B), 622 (US19), 625 (US26), 626 (US26D), 643E, 693 (SPBLK), 619 (US15)

Fasteners

• • All necessary mounting fasteners are included

Features and Options

Electrified Options

• • E8875 - Electric mortise lock device
  • RX - Crossbar monitor switch

Mechanical Options

• • RCB - Reinforced crossbar
  • KN - Knurled crossbar

Strike

• • 575 - Dull Black
