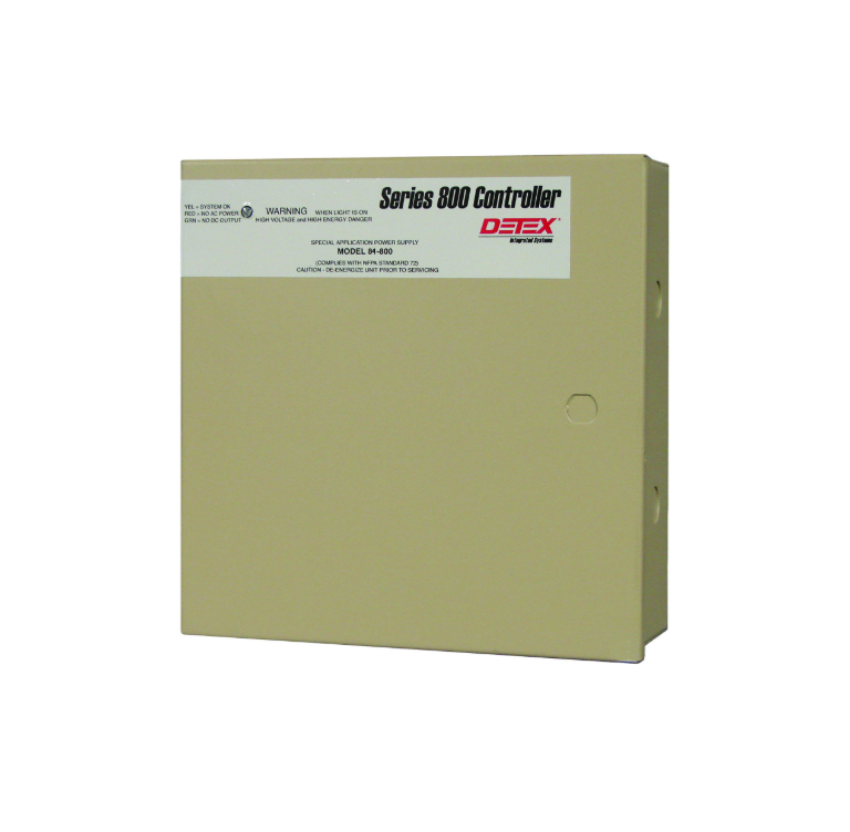

Features

• 1 Amp continuous 24VDC output
• Controls 1 Detex EExER delayed egress device for 1 door
• Integrated logic controller and power supply
• Fire alarm input for life safety compliance
• Filtered and regulated 24VDC power output
• Fuse protected circuitry
• Connections labeled for easy installation
• Status LEDs for system monitoring and troubleshooting
• Output relay for local and remote alarm
• Cable harnesses engineered for simplified connections
• Supports enclosure mounting up to 15 feet from device
• Includes Remote Interface Unit (RIU) with alarm and keyswitch
• Heavy-duty 18-gauge steel enclosure

Benefits

Integrated Delayed Egress Control

• • Combines logic controller and power supply in one enclosure
  • Designed for delayed egress and latch retraction applications

Reliable Access Control Power

• • Regulated 24VDC power protects circuitry from surges and spikes
  • Provides consistent power for electrified exit devices

Simplified Installation

• • Centralized wiring connections reduce installation complexity
  • Single AC line voltage required for activation
  • Cable harnesses reduce guesswork during setup

Easy Maintenance & Monitoring

• • Status LEDs provide quick troubleshooting feedback
  • Fuse protected design improves system safety
  • Can be bypassed or rearmed using key or access control

Commercial Security Performance

• • Built specifically for Detex delayed egress exit devices
  • Supports life safety and access control applications

Technical Information

• 12.25" high x 12.25" wide x 3.5" deep
• 110VAC input
• 24VDC output, 1A
• Beige with hinged cover
• 18 gauge steel
• Knockout holes provided for conduit
• Machine and Sheet Metal Screws (Std)
