Detex 80-800 Power Supply, Can Be Used With ED, EE, EM Products

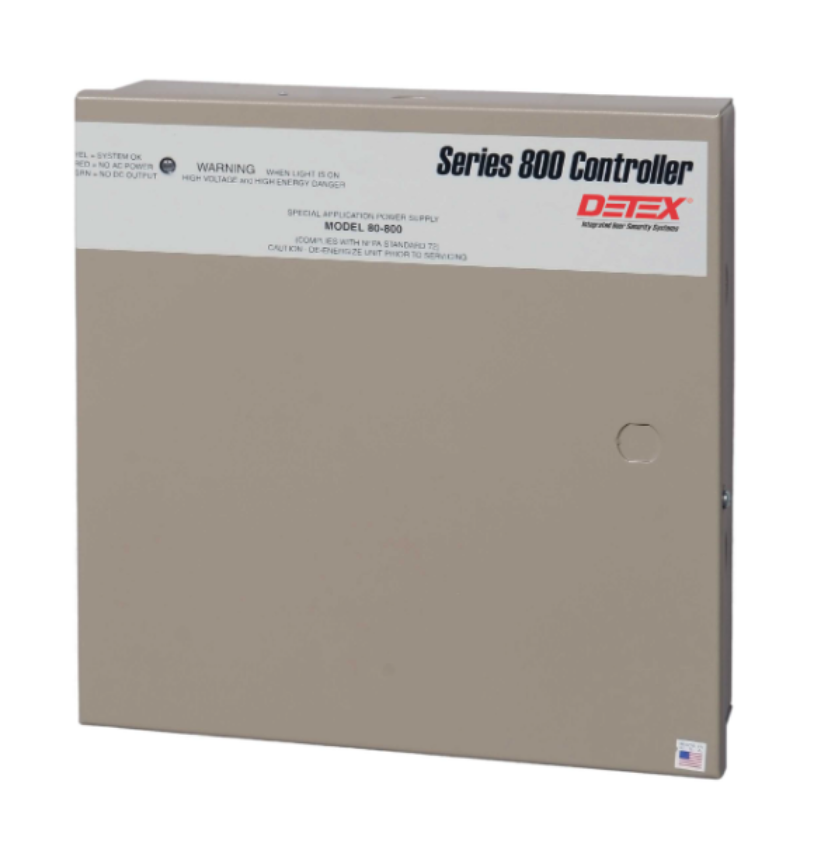

Picture of 80-800 Power Supply, Can Be Used With ED, EE, EM Products

Detex

SKU: 80-800

Detex 80-800 Power Supply, Can Be Used With ED, EE, EM Products

The Detex 80-800 Power Supply provides regulated and filtered 12VDC or 24VDC power for electric locks, access control systems, and electrified door hardware. Designed for continuous operation, it features battery backup charging, circuit protection, and flexible field-selectable outputs for commercial security applications.

Features

  • Regulated and filtered DC power supply
  • Field-selectable 12VDC or 24VDC output
  • Battery charging circuit with PTC protection
  • Fire alarm input for emergency fail-safe lock release
  • Auto-resetting circuit protection
  • Individual fused protection
  • Low battery disconnect at 70% battery capacity
  • Heavy-duty 18-gauge steel enclosure
  • Class 2 outputs
  • 1 Amp continuous output
  • LED system status indicator
  • Input: 115VAC, 50/60 Hz
  • Built-in battery backup support

Benefits

Reliable 12VDC & 24VDC Power Output

    • Provides regulated and filtered DC power for access control systems
    • Ensures reliable operation of electric locks and security hardware

Designed for Electric Locks & Access Control

    • Supports electric strikes and magnetic locks
    • Compatible with access control systems and electrified door hardware
    • Built for commercial security applications

Simplified Installation

    • Class 2 outputs allow direct wiring to 115VAC input without conduit requirements
    • Field-selectable outputs support flexible configurations

Easy Maintenance & Troubleshooting

    • LED status indicator provides quick system diagnostics
    • On/Off switch allows easy servicing and inspection

Reliable Backup & System Protection

    • Battery charging circuit supports uninterrupted backup operation
    • Low battery disconnect protects batteries from deep discharge
    • Auto-resetting protection helps reduce downtime

Technical Information

  • Input: 115VAC, 50/60 Hz
  • Class 2 Rated
  • 80-800 (1) Output: 12 or 24VDC, 1A
  • Battery Charger: 13.5/27VDC, 500mA
$1,036.00
$828.80
