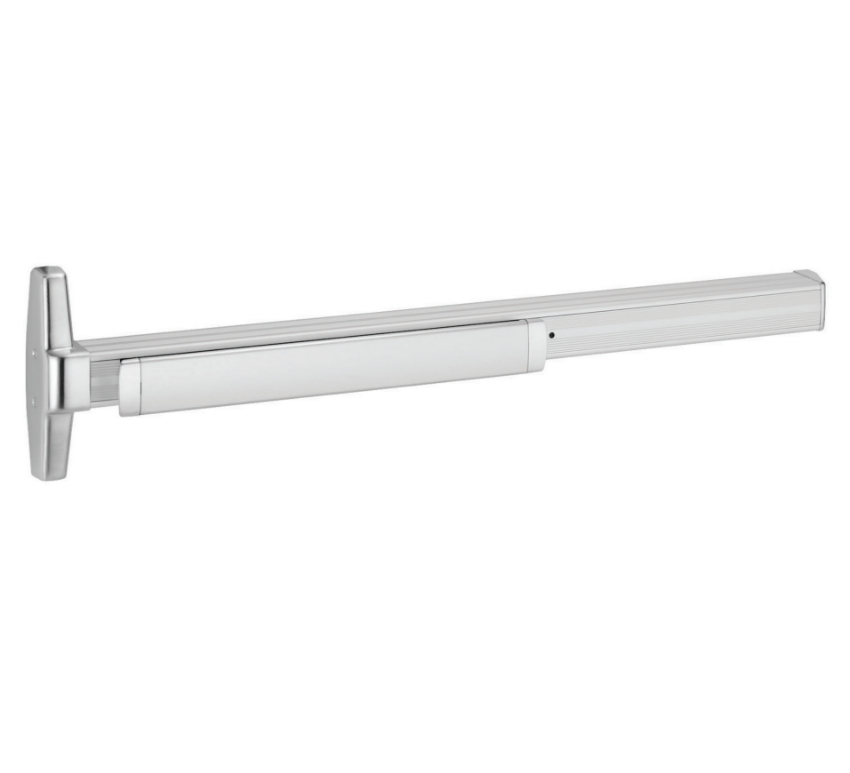

Product Overview:

• 3350AWDC and 3550AWDC for use on single and double wood doors, UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1.
•  The concealed vertical cable device is non-handed except when the SS (signal switch) option is used.
• 3350AWDC/3550AWDC fits minimum 4" door stile width (101.6 mm).
• Scalp Plate – Device is furnished standard with an 15" (381 mm) long scalp plate for easy access to cables.

Click Here for 3350AWDC-F/3550AWDC-F-EO CVC Fire Rated Exit Device

Specifications:

Device Lengths:

• • 2' - 2' (610 mm) door size
  • 3' - 2'4" to 3' (660mm to 914 mm) door size
  • 4' - 2'8" to 4' (813 mm to 1219 mm) door size

Device centerline from finished floor

• • 39 13/16" (1006mm)

Center case

• • 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)

Mechanism case

• • 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Projection

• • Pushbar neutral – 3 13/16" (97mm)
  • Pushbar depressed – 3 1/16" (78mm)

Latch bolt

• • Deadlocking anti-friction top and bottom bolt 1/2" (13mm) throw

Door undercut

• • 3⁄4" (19mm) maximum

Top and Bottom latch case

• • 5 13/16" x 1 1/4" x 1 7/16" (147mm x 32mm x 37mm)

Vertical Cables

• • 7/32" (6mm) diameter stainless steel cables

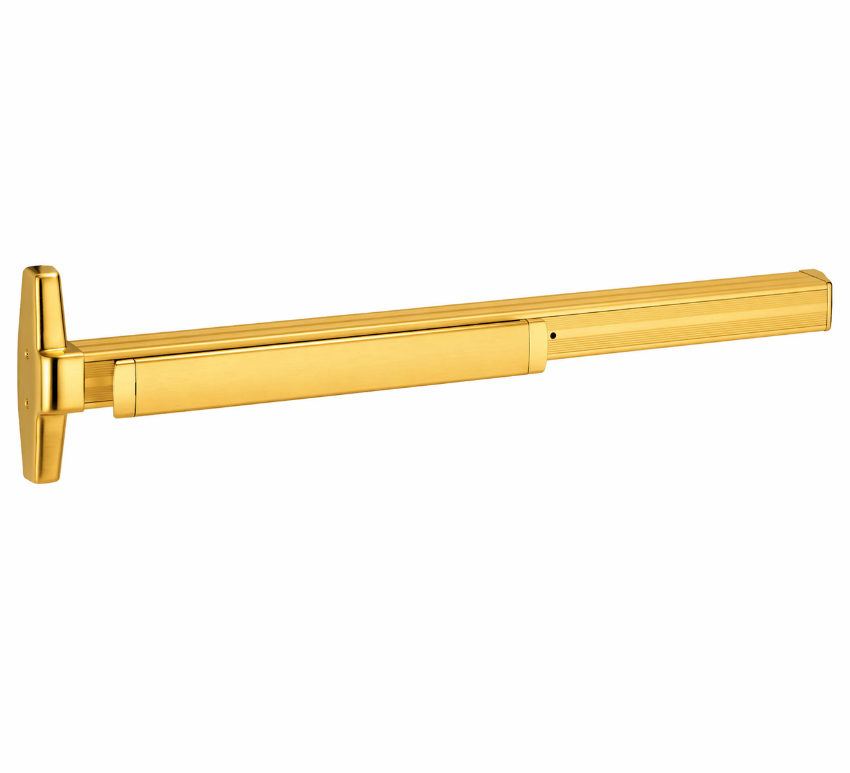

Finishes

• • US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US15 - Satin Nickel (35A only), US26D - Satin Chrome, 626AM - Satin Chrome, AntiMicrobial, US28 - Aluminum Anodized, 313AN - Dark Bronze, 315AN - Anodized Black

Fasteners and sex bolts (SNB)

• • Includes 1 3/4" (44mm) – 2 1/4" (57mm) wood and metal doors
  • #425 SNB furnished standard for end case
  • #325 SNB furnished standard for EO (exit only device)

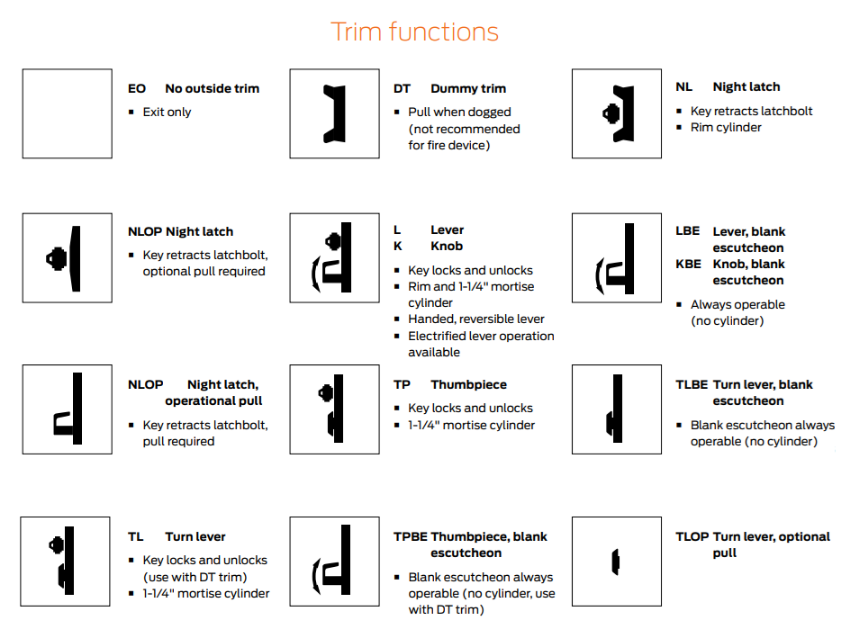

Features and Options:

• Electrified Options
  • ALK - Alarm exit kit
  • CX - Chexit delayed exit
  • ESL - Emergency secure lockdown
  • LX - Latch bolt monitor switch
  • LX-RX - Request to exit / latch bolt monitoring
  • QEL - Quiet electric latch retraction
  • RX - Request to exit, WP-RX waterproof option
  • RX-LC, LX-LC, LX-RX-LC - Low current option for RX, LX, LX-RX
  • SS - Signal switch
  • CON - Allegion Connect

Mechanical Options

• • GBK - Glass bead kit
  • INS-2 - Insulclad kits 1/2"
  • INS-4 - Insulclad kits 1/4
  • LBL - Less bottom latch
  • PL - Pullman Latch
  • PN - Pneumatic
  • SEC - Security screws
  • SG - Safety glow
  • SNB - Sex bolts
  • WH - Weep holes

Dogging feature

• • Hex key dogging standard
  • Comes standard on 3350AWDC/3550AWDC exit devices

Dogging options

• • HD - Hex dogging (Standard)
  • CD - Cylinder dogging
  • CDSI - Cylinder dogging with security indicator
  • HDSI - Hex dogging with security indicator
  • LD - Less dogging

Strikes

• • 150 Strike - Top
  • 450 Strike - Bottom
