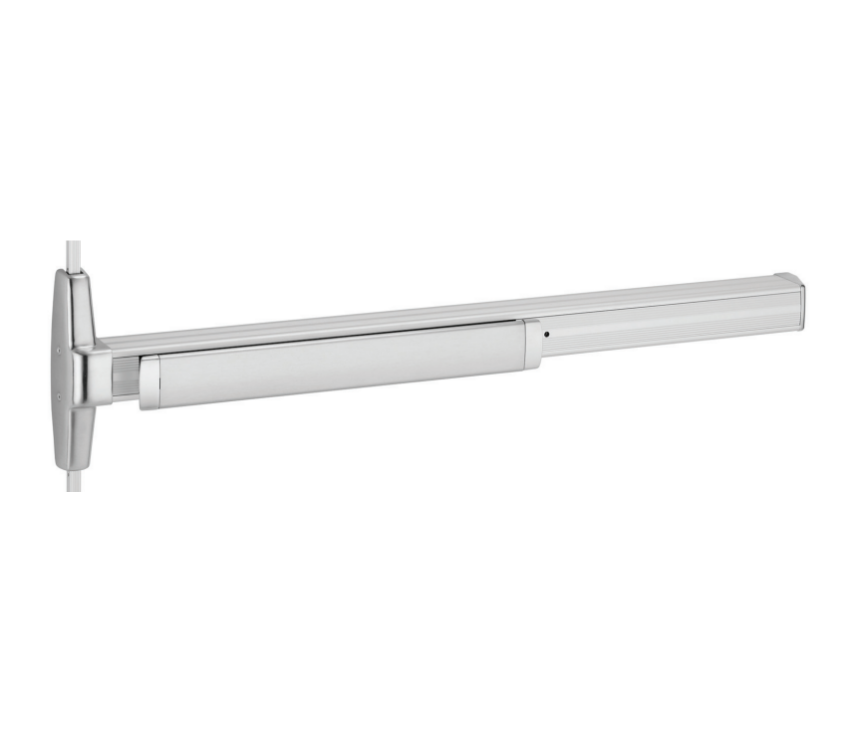

Product Overview:

• 3327A-F and 3527A-F for all types of double doors up to 8' x 10' (2438mm x 2540mm), UL listed for Fire Exit Hardware. Devices are ANSI A156.3 – 2008 Grade 1.
• The surface vertical rod device is non-handed except when the SS (Signal Switch) option is used.
• 3327A-F/3527A-F fits door stiles as narrow as 2 3/16" (56 mm). Newly designed device has a one piece center case cover.

Specifications:

Device Lengths:

• • 2' - 2' (610 mm) door size
  • 3' - 2'4" to 3' (660mm to 914 mm) door size
  • 4' - 2'8" to 4' (813 mm to 1219 mm) door size

Device centerline from finished floor

• • 39 13⁄16" (1006mm)

Center case

• • 8 13/16" x 2 13/32" x 1 9/16" (208mm x 62mm x 40mm)

Mechanism case

• • 2 1⁄4" x 2 1⁄4" (57mm x 57mm)

Projection

• • Pushbar neutral – 3 13/16" (97mm)
  • Pushbar depressed – 3 1/16" (78mm)

Latch bolt

• • Deadlocking anti-friction top and bottom bolt 5/8" (16mm) throw

Finishes

• • US3 - Bright Brass, US4 - Satin Brass, US10 - Satin Bronze, US15 - Satin Nickel (35A only), US26D - Satin Chrome, 626AM - Satin Chrome, AntiMicrobial, US28 - Aluminum Anodized, 313AN - Dark Bronze, 315AN - Anodized Black

Fasteners and sex bolts (SNB)

• • Includes screw pack for 1 3⁄4" (44mm) and 2 1⁄4" (57mm) wood and metal doors
  • #425 SNB furnished standard for end case
  • #325 SNB furnished standard for EO (exit only device)
  • #325 SNB furnished for top and bottom latches

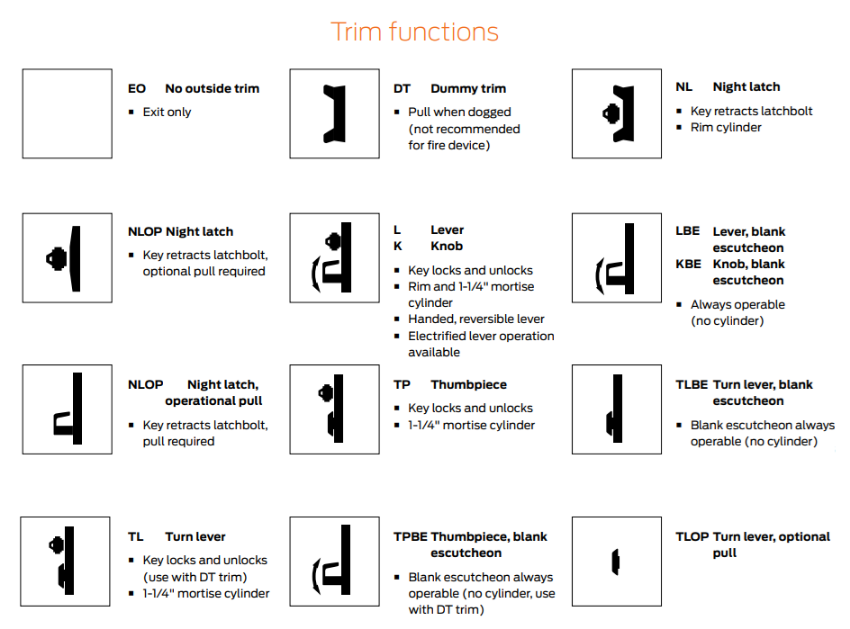

Features and Options:

• Electrified Options
  • ALK - Alarm exit kit
  • CX - Chexit delayed exit
  • ESL - Emergency secure lockdown
  • LX - Latch bolt monitor switch
  • LX-RX - Request to exit / latch bolt monitoring
  • QEL - Quiet electric latch retraction
  • RX - Request to exit, WP-RX waterproof option
  • RX-LC, LX-LC, LX-RX-LC - Low current option for RX, LX, LX-RX
  • SS - Signal switch
  • CON - Allegion Connect

Mechanical Options

• • AX - Accessible device

  • GBK - Glass bead kit

  • PN - Pneumatic

  • QM - Quiet mechanical

  • SEC - Security screws

  • SG - Safety glow

  • SNB - Sex bolts

  • WH - Weep holes
  • PL - Pullman latch

Strikes

• • 299F Strike - (Top) Dull black
  • 304L Optional strikes (Bottom) - For use with threshold (Unfinished)
  • 499F Strike - Less bottom rod (LBR) only
