Picture of Detex

SKU: 31-800

Detex 31-800 Logic Controller Mounting Plate

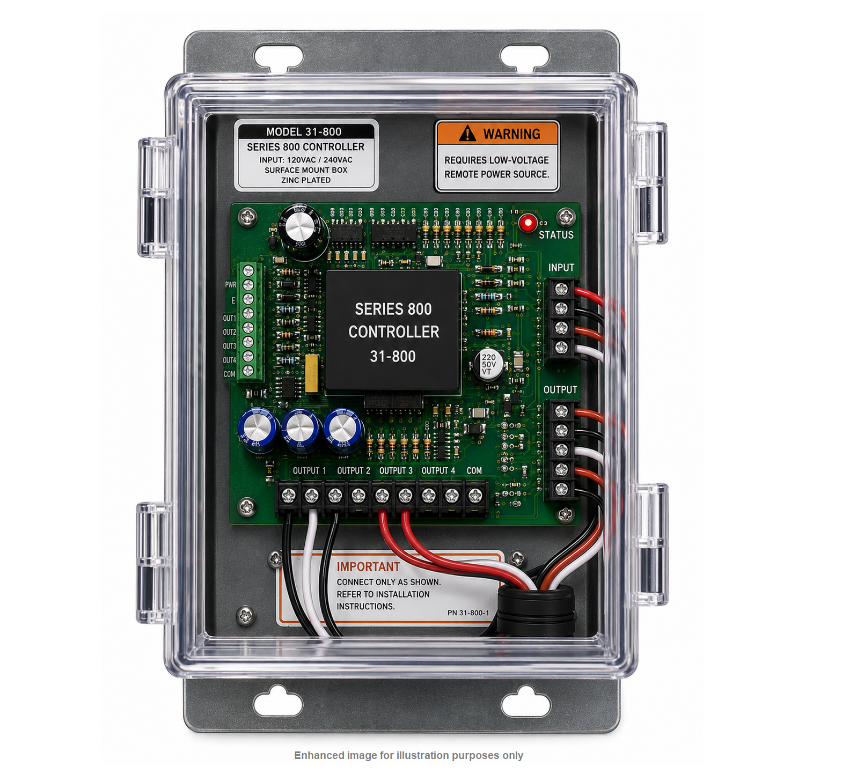

Detex 31-800 Series 800 logic controller mounting plate assembly

Detex

SKU: 31-800

Detex 31-800 Logic Controller Mounting Plate

Available (2 - 3 weeks)

The Detex 31-800 is a Series 800 logic controller assembly supplied with a flat mounting plate for access control, electric locking, delayed egress, and interlock applications requiring an external low-voltage power source.

Product Overview

The Detex 31-800 is a Series 800 logic controller mounted on a flat mounting plate designed to control electrified door hardware in commercial access control applications. It receives inputs from switches, access control systems, or other dry-contact devices and processes them into programmable outputs for locking hardware, alarms, delayed egress systems, and interlock functions. The 31-800 is part of the Detex product line and is compatible with applications involving the Advantex Series and Value Series electrified hardware when specified for the application. Unlike the 10-800 and 11-800 models, the 31-800 requires an external low-voltage power source.

We are a trusted source for commercial door hardware, security hardware, access control products, and OEM replacement parts.

Features

  • Series 800 logic controller mounted on a flat mounting plate
  • Accepts inputs from switches, access control systems, and dry-contact devices
  • Supports standard egress, delayed egress, and interlock applications
  • Controls applications for up to two doors
  • Provides outputs for locks, local alarms, and remote alarms
  • Relay outputs configurable for wet or dry connections
  • Status LEDs for troubleshooting and diagnostics
  • Requires external low-voltage power source
  • Designed for use with electrified locking and access control hardware

Benefits

  • Simplifies integration of electrified door hardware systems
  • Supports multiple access control configurations from a single controller platform
  • Provides flexible relay configuration for varied installation requirements
  • Helps centralize door control and signaling functions
  • Allows installation where a separate power supply is already available
  • Facilitates troubleshooting through onboard status indicators

Compatible Models

  • Detex Advantex Series electrified exit devices (when specified for the application)
  • Detex Value Series electrified exit devices (when specified for the application)
$1,794.00
$1,435.20
minus minus

Catalogs

Frequently Asked Questions

What is the Detex 31-800?
The 31-800 is a Series 800 logic controller supplied on a flat mounting plate for electrified door hardware control applications.
Does the 31-800 include a power supply?
No. The 31-800 requires an external low-voltage power source.
What applications can the 31-800 support?
It supports standard egress, delayed egress, and interlock applications.
How many doors can the controller manage?
The Series 800 controller platform can manage applications for up to two doors.
Can the 31-800 be used with Detex Advantex devices?
Yes. Series 800 controllers are used in applications involving Detex Advantex electrified exit devices when specified for the application.
