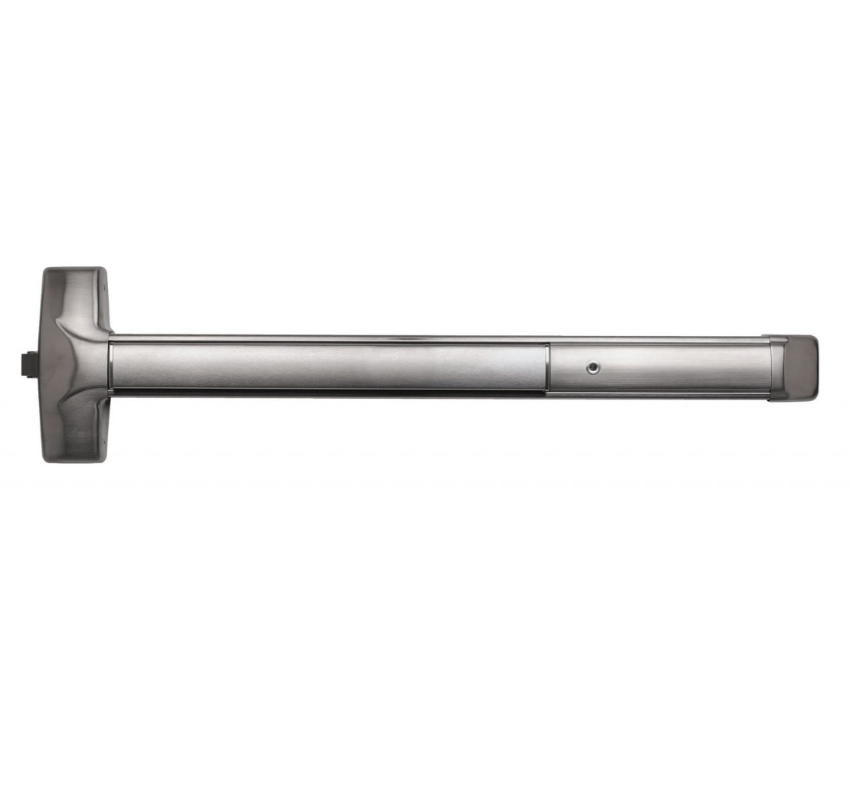

Detex 20 Series Rim Exit Device

Picture of 20 Series Rim Exit Device

Detex

SKU: 20 Series Rim Exit Device

Detex 20 Series Rim Exit Device

The 20 Series surface vertical rod exit device is a super-heavy-duty panic and fire exit solution designed for all types of double doors without a mullion. It includes top and bottom rod covers, an ADA-compliant ramped bottom bolt cover, and a patented mounting plate with strike locator system for quick and accurate installation.
*
  • 630 / US32D - Satin Stainless Steel
    630 / US32D - Satin Stainless Steel
    Not available
  • 628 / US28 - Aluminum Anodized
    628 / US28 - Aluminum Anodized
    Not available
  • 605 / US3 - Bright Brass
    605 / US3 - Bright Brass
    Not available
  • 606 / US4 - Satin Brass
    606 / US4 - Satin Brass
    Not available
  • 611 / US9 - Polished Bronze
    611 / US9 - Polished Bronze
    Not available
  • 612 / US10 - Satin Bronze
    612 / US10 - Satin Bronze
    Not available
  • 613 / US10B - Oil Rubbed Bronze
    613 / US10B - Oil Rubbed Bronze
    Not available
  • 629 / US32 - Bright Chrome
    629 / US32 - Bright Chrome
    Not available
  • 693 / SPBLK - Black Painted
    693 / SPBLK - Black Painted
    Not available
  • 695 / DKBRZ - Dark Bronze, Painted
    695 / DKBRZ - Dark Bronze, Painted
    Not available
*

Features

  • Stainless steel deadlocking top latch
  • Hardened steel bottom drop bolt with dust proof strike
  • Field sizeable
  • ADA ramped bottom bolt cover
  • 1/8 turn hex or cylinder dogging
  • Handed - field reversible
  • All exposed surfaces are finished over stainless steel with PVD, an environmentally friendly finishing process


Benefits

  • Tough and durable design for years of trouble-free service in high-use, high-abuse environments
  •  Patented mounting plate and strike locator system replaces paper templates
  • Minimal door prep saves time and money
  • Outside trims are easily changed or rekeyed without removing device from door
  • Security enhanced by stainless steel, rod covers, standard
  •  Heavy duty angled end cap deflects damage away from device
  • Fast and easy installation saves time and money

Mechanical Options

  • F - 3-Hour Fire Rated
  • H - Hurricane Rated
  • FH - Fire-Rated/Hurricane Rated
  • W - Weatherized (mechanical only)

Custom Length

  • 36 - Fits 36" Door Width (Std.)
  • 48 - Fits 48" Door Width

Dogging Option

  • HD - Hex Dogging (Std.)
  • CD - Cylinder Dogging
  • LD - Less Dogging

Finishes

  • 605 / US3 - Polished Brass
  • 606 / US4 - Brushed Brass
  • 611 / US9 - Polished Bronze
  • 612 / US10 - Brushed Bronze
  • 613 / US10B - Oil Rubbed Bronze
  • 628 / US28 - Aluminum Satin
  • 629 / US32 - Polished Stainless Steel
  • 630 / US32D - Brushed Stainless Steel
  • 693 / SPBLK - Black, Painted
  • 695 / SP 313 - Dark Bronze, Painted

Technical Information

  •  Door Types - Wood, Hollow Metal, Fiberglass or Aluminum
  • Door Thickness - Fits standard 1-3/4" - 2-1/4" doors (for other door thicknesses contact factory) Technical Information
  • Minimum Stile - 4-1/2" with standard 97 strike
  • Fasteners - Machine and Self-

$3,087.00
$2,500.47
