Detex 12-800 Controller System, 120VAC/24VDC, Stand Alone

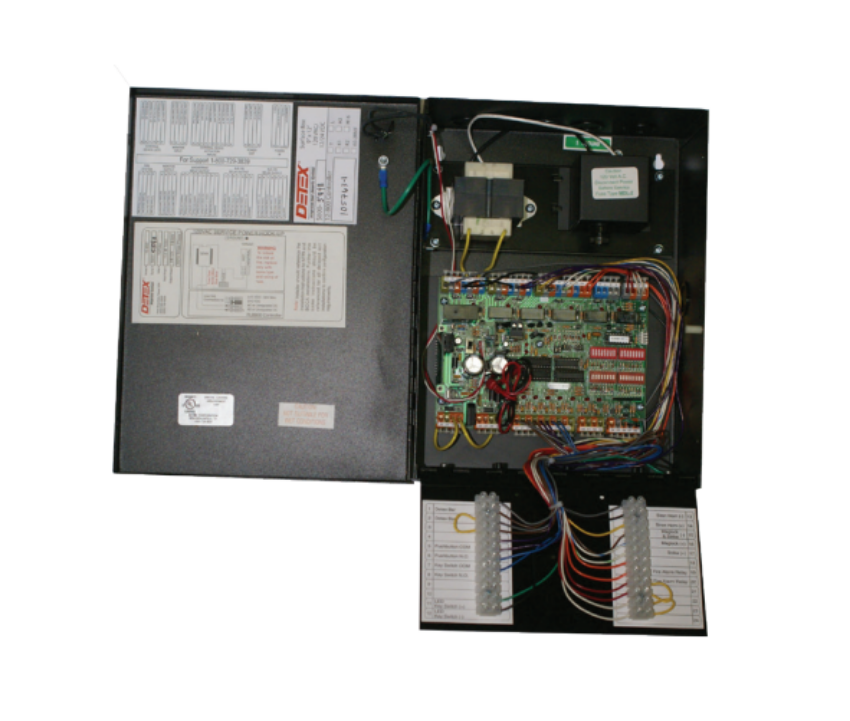

Picture of 12-800 Controller System, 120VAC/24VDC, Stand Alone

Detex

SKU: 12-800

Detex 12-800 Controller System, 120VAC/24VDC, Stand Alone

The Detex 12-800 is a universal logic controller and power supply designed for electrified hardware, delayed egress, and access control applications. It provides centralized control, battery backup capability, and up to 2A of DC power for up to two doors.

Contains:

  • Back box
  • Upper back pan and flip-up insert
  • 24-point terminal strip
  • Transformer
  • Series 800 electronics

Features

  • Universal logic and power supply controller
  • Power supply and controller integrated in one enclosure
  • Controls up to 2 separate doors
  • Supports standard egress, delayed egress, and interlock applications
  • 12VDC or 24VDC selectable output
  • Provides up to 2A DC power output
  • Battery backup and charging circuit standard
  • Output relays for locks, local alarms, and remote alarms
  • Relays configurable for wet or dry connections
  • Multiple fire alarm relay input options
  • Inline fuse protection
  • Central terminal connections for simplified wiring
  • Pre-wired 24-point terminal strip with labeled connections
  • Flip-down tray for easier wiring access
  • Status LEDs for troubleshooting and system monitoring
  • Single AC line voltage activation
  • 9VDC, 100mA output terminal tap
  • Heavy-duty enclosure construction

Benefits

Centralized Access Control

    • Provides total control over electrified hardware and delayed egress systems
    • Supports up to two doors with one controller

Reliable Power & Backup Operation

    • Delivers dependable 12VDC or 24VDC power output
    • Battery backup circuit provides uninterrupted operation
    • Fuse protection helps protect against power surges

Simplified Installation

    • Central terminal connections simplify wiring
    • Pre-wired labeled terminal strip reduces installation time
    • Flip-down tray provides easier access during setup and servicing

Easy Monitoring & Service

    • Status LEDs provide quick troubleshooting feedback
    • On/Off switch allows easy service and inspection
    • Labeled connections help identify circuits quickly

Technical Information

  • 110VAC input
  • 12 or 24 VDC output, 2A
  • Lock Relay 2A
  • Remote Relay 2A
  • Controls 2 doors within 100 feet using 18ga stranded wires
  • Bolt Position/Door Position Switches Relay 2A
  • Local Alarm Relay 5A
$2,656.00
$2,124.80
