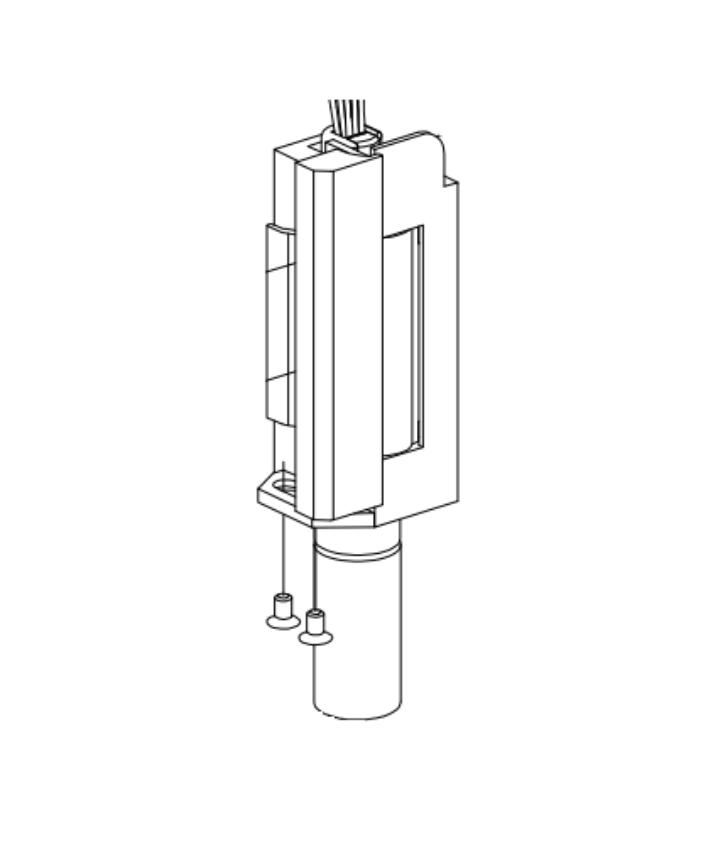

Von Duprin 112755, 6210 12VDC FSE DS-LC Box Assembly

Keep your Von Duprin 6210 electric strike working the way it should with this factory box assembly. Part 112755 is built for a 6210 configured for 12VDC and fail secure operation, and it includes the DS-LC dual monitoring setup used for status signaling.

About this item

This Von Duprin 112755 box assembly is a replacement box assembly for the 6210 electric strike in 12VDC fail secure configuration with DS-LC monitoring.

Function

It houses the internal operating components that allow the 6210 strike to release the door when power is applied while remaining locked when power is off in fail secure mode.

Applications

It is used when servicing or restoring a Von Duprin 6210 electric strike installation that requires 12VDC fail secure operation and needs DS-LC monitoring connections for door and latch status feedback.

Best for:

• Maintaining an existing Von Duprin 6210 strike setup that uses 12VDC fail secure operation
• Repair work where the box assembly needs replacement due to wear or damage
• Access control doors that use monitoring signals for position and latch/lock status



It helps by:

• Restoring the strike’s internal assembly to the correct 6210 configuration
• Supporting DS-LC monitoring wiring used for status signaling
• Keeping power requirements aligned with 12VDC operation



Specifications

• Part number: 112755
• Series/model compatibility: Von Duprin 6210 electric strike
• Voltage: 12VDC
• Duty: continuous duty listed for 12VDC operation
• Current at 12VDC: 0.60 A
• Configuration: fail secure electric strike setup
• Monitoring: DS-LC (dual monitor switches)



Key highlights

• Built for Von Duprin 6200 Series strike systems known for heavy duty stainless steel construction
• Supports dual monitoring options (DS or DS-LC) used in 6200 Series configurations
• 6200 Series ratings include UL 1034 and UL 10C listings (fail secure only)
• 6200 Series strength ratings listed as 1500 lb static and 70 ft-lb dynamic



What’s included

• 1 box assembly: 6210 12VDC FSE DS-LC box assembly (part 112755)

Key features

• Designed specifically for Von Duprin 6210 strike service replacement
• 12VDC continuous duty electrical design
• Fail secure operation support
• DS-LC monitoring support



Keying options

• Not applicable, this is an internal box assembly and does not include a keyed cylinder



Warranty

• Von Duprin product warranty for electrified products is listed as 12 months from date placed in operation or 18 months from date of shipment, whichever occurs first, subject to warranty terms and conditions
