Detex 11-800 Controller System, 120VAC/24VDC, Stand Alone

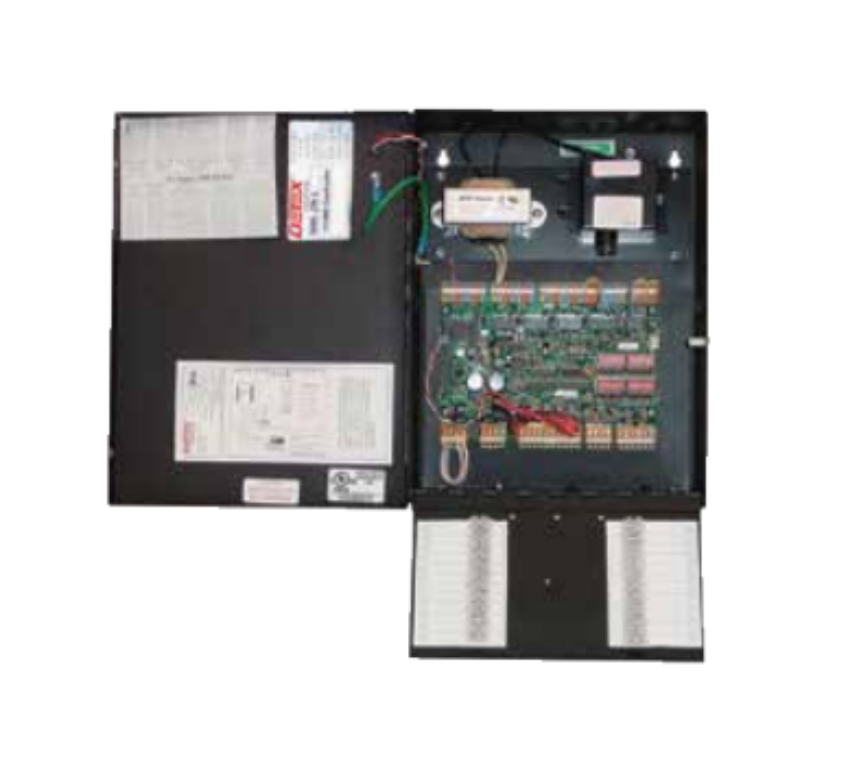

Picture of 11-800 Controller System, 120VAC/24VDC, Stand Alone

Detex

SKU: 11-800

Detex 11-800 Controller System, 120VAC/24VDC, Stand Alone

The Detex 11-800 Controller is a universal logic and power supply controller engineered for electrified hardware, delayed egress, and access control systems. Delivering up to 2A of DC power, the 11-800 features expanded terminal connections, a flip-down tray, and battery backup support for advanced commercial security applications.

Contains:

  • Back box
  • Upper back pan and flip-up insert
  • 24-point terminal strip
  • Transformer and
  • Series 800 electronics

Features

  • Universal logic and power supply controller
  • Power supply and controller integrated in one enclosure
  • 12VDC or 24VDC selectable output
  • Provides up to 2A DC power output
  • Controls up to 2 separate doors
  • Supports standard egress, delayed egress, and interlock applications
  • 24-point terminal strip with flip-down tray
  • Output relays for locks, local alarms, and remote alarms
  • Relays configurable for wet or dry connections
  • Battery backup and charging circuit included
  • Inline fuse protection against power surges
  • Multiple fire alarm relay input options
  • Status LEDs for system monitoring and troubleshooting
  • Pre-wired terminal strip with labeled connections
  • Single AC line voltage activation
  • Heavy-duty enclosure construction

Benefits

Advanced Multi-Door Access Control

    • Supports two-door control for delayed egress and interlock applications
    • Designed for electrified locks and commercial access control systems

Reliable Power & Backup Protection

    • Provides stable 12VDC or 24VDC power output
    • Integrated battery backup circuit supports uninterrupted operation
    • Fuse protection helps improve system safety and reliability

Simplified Installation

    • Pre-wired labeled terminal strip speeds up installation
    • Flip-down tray allows easier wiring access and maintenance
    • Centralized connections reduce setup complexity

Easy Monitoring & Service

    • Status LEDs provide fast troubleshooting feedback
    • On/Off switch simplifies servicing and inspection
    • Flexible wet or dry relay configurations support system integration

Technical Information

  • 110VAC input
  • 12 or 24 VDC output, 2A
  • Lock Relay 2A
  • Remote Relay 2A
  • Controls 2 doors within 100 feet using 18ga stranded wires
  • Bolt Position/Door Position Switches Relay 2A
  • Local Alarm Relay 5A
$2,539.00
$2,031.20
