Detex 106595-1 Logic Controller / Power Supply for Outdoor Use

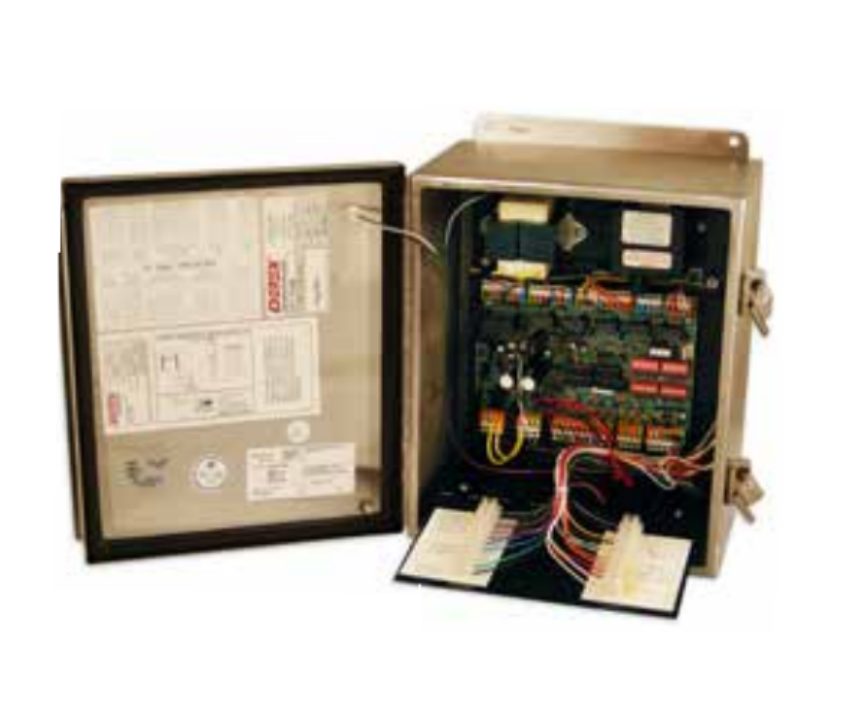

Picture of 106595-1 Logic Controller / Power Supply for Outdoor Use

Detex

SKU: 106595-1

Detex 106595-1 Logic Controller / Power Supply for Outdoor Use

The Detex 106595-1 is a universal logic controller and power supply designed for outdoor electrified hardware, delayed egress, and access control applications. Housed in a NEMA 4X enclosure, it provides centralized control, battery backup capability, and up to 2A of DC power for up to two doors.

For use on Single or Pairs of Delayed Egress System doors with weatherized controlled egress exit devices, labeled for use outdoor (106595-1 is supplied inside NEMA 4X enclosure and can be installed outdoors – attach conduit to bottom of NEMA 4X enclosure)

Features

  • Universal logic and power supply controller
  • NEMA 4X rated enclosure
  • Power supply and controller integrated in one enclosure
  • Controls up to 2 separate doors
  • Supports standard egress, delayed egress, and interlock applications
  • 12VDC or 24VDC selectable output
  • Provides up to 2A DC power output
  • Battery backup and charging circuit standard
  • Output relays for locks, local alarms, and remote alarms
  • Relays configurable for wet or dry connections
  • Multiple fire alarm relay input options
  • Inline fuse protection
  • Central terminal connections for simplified wiring
  • 24-point terminal strip with flip-down tray
  • Status LEDs for troubleshooting and system monitoring
  • Single AC line voltage activation
  • 9VDC, 100mA output terminal tap
  • Heavy-duty outdoor enclosure construction

Benefits

Outdoor Access Control Solution

    • NEMA 4X enclosure provides protection against rain, sleet, snow, and corrosion
    • Designed for outdoor electrified hardware and delayed egress systems

Centralized Multi-Door Control

    • Supports up to two doors with one controller
    • Allows centralized local and remote signaling connections

Reliable Power & Backup Operation

    • Delivers dependable 12VDC or 24VDC power output
    • Battery backup circuit provides uninterrupted operation
    • Inline fuse protection helps protect against power surges

Simplified Installation & Service

    • Central terminal connections simplify wiring
    • Flip-down tray allows easier access during installation and maintenance
    • Status LEDs provide quick troubleshooting feedback

Technical Information

  • 110VAC input
  • 12 or 24 VDC output, 2A
  • Lock Relay 2A
  • Remote Relay 2A
  • Controls 2 doors within 100 feet using 18ga stranded wires
  • Bolt Position/Door Position Switches Relay 2A
  • Local Alarm Relay 5A
