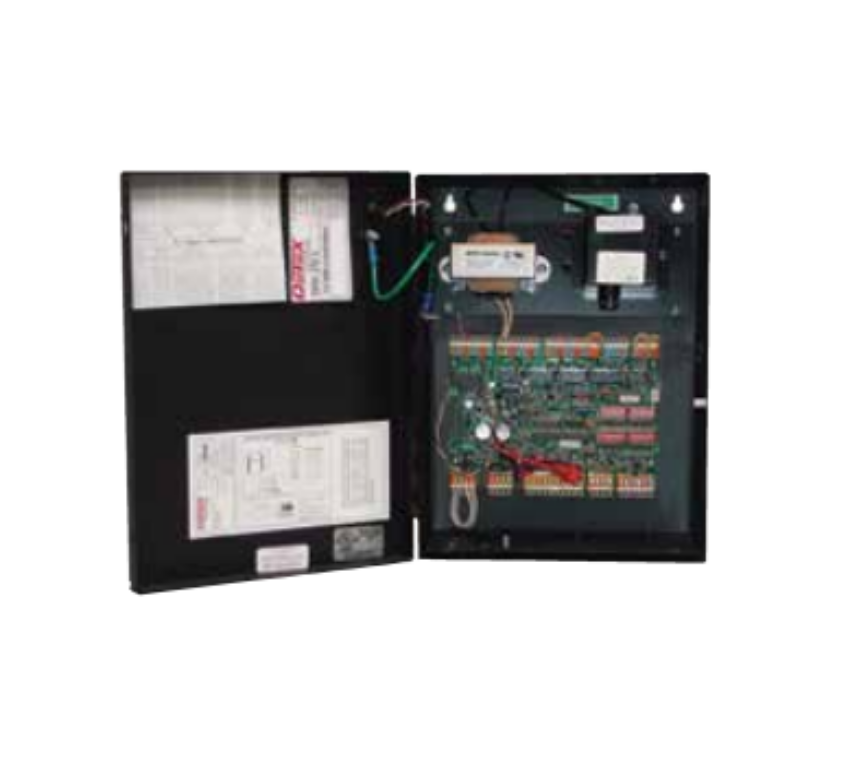

Contains:

• Back box
• Transformer
• Series 800 electronics

Features

• Universal logic and power supply controller
• Power supply and controller integrated in one enclosure
• 12VDC or 24VDC selectable output
• Provides up to 2A DC power output
• Controls up to 2 separate doors
• Supports standard egress, delayed egress, and interlock applications
• Output relays for locks, local alarms, and remote alarms
• Relays configurable for wet or dry connections
• Battery backup and charging circuit included
• Inline fuse protection against power surges
• Multiple fire alarm relay input options
• Status LEDs for system monitoring and troubleshooting
• Central terminal connections for simplified wiring
• Labeled connections for easy circuit identification
• Single AC line voltage activation
• Heavy-duty enclosure construction

Benefits

Universal Access Control Integration

• • Designed for electric locks, delayed egress, and access control systems
  • Supports multiple door control applications with one controller

Reliable Power & Backup Protection

• • Provides dependable 12VDC or 24VDC power output
  • Battery backup circuit helps maintain uninterrupted operation
  • Fuse protection helps protect circuitry from surges

Simplified Installation

• • Centralized terminal connections streamline wiring
  • Clearly labeled circuits reduce installation errors
  • Single AC line voltage simplifies activation setup

Easy Maintenance & Troubleshooting

• • Status LEDs provide quick system diagnostics
  • On/Off switch allows easy servicing and inspection
  • Wet or dry relay configurations support flexible integration

Technical Information

• 110VAC input
• 12 or 24 VDC output, 2A
• Lock Relay 2A
• Remote Relay 2A
• Controls 2 doors within 100 feet using 18ga stranded wires
• Bolt Position/Door Position Switches Relay 2A
• Local Alarm Relay 5A
