ND96EU Vandlgard storeroom lock, electrically unlocked outside lever (fail secure)

Lever with key cylinder outside; lever inside; deadlatch
Powered state: outside lever continuously unlocked (when in EU mode)
When power is removed (via switch or power failure), in EU mode outside lever is locked
Vandlgard feature allows outside lever, when locked, to rotate without engaging latch
Key outside retracts latch but cannot change the normal locked or unlocked state of the outside lever
Inside lever always free for immediate egress

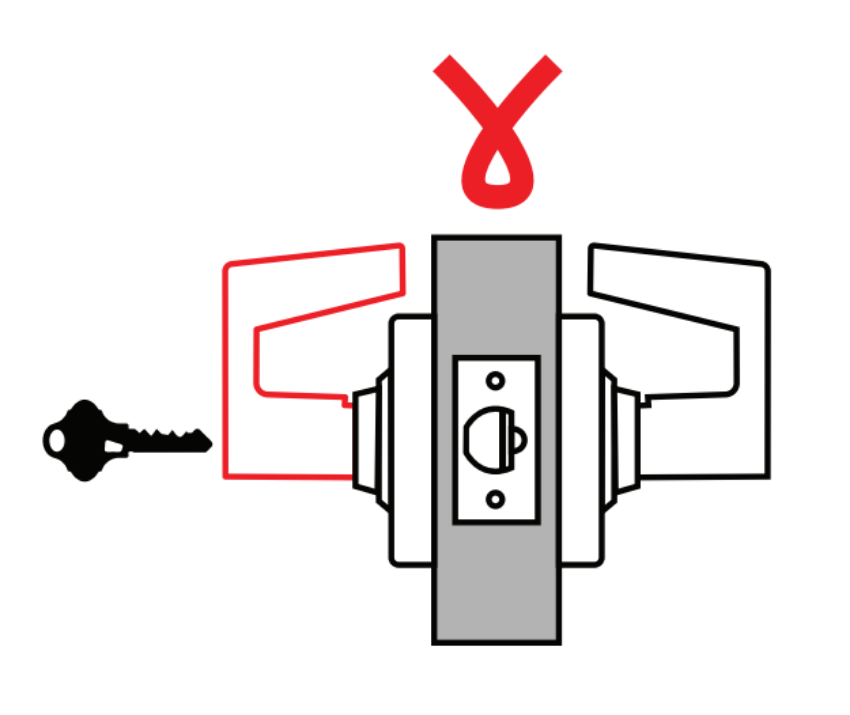

Picture of ND96EU Vandlgard storeroom lock, electrically unlocked outside lever (fail secure)

Products by Part Diagrams

Chassis Assembly

Chassis Assembly

Schlage ND96EU Vandlgard storeroom lock, electrically unlocked outside lever (fail secure)

arrow
Trim Assembly

Trim Assembly

Schlage ND96EU Vandlgard storeroom lock, electrically unlocked outside lever (fail secure)

arrow
Chassis with request-to-exit

Chassis with request-to-exit

Schlage ND96EU Vandlgard storeroom lock, electrically unlocked outside lever (fail secure)

arrow
Trim with request-to-exit

Trim with request-to-exit

Schlage ND96EU Vandlgard storeroom lock, electrically unlocked outside lever (fail secure)

arrow
Levers

Levers

Schlage ND96EU Vandlgard storeroom lock, electrically unlocked outside lever (fail secure)

arrow
