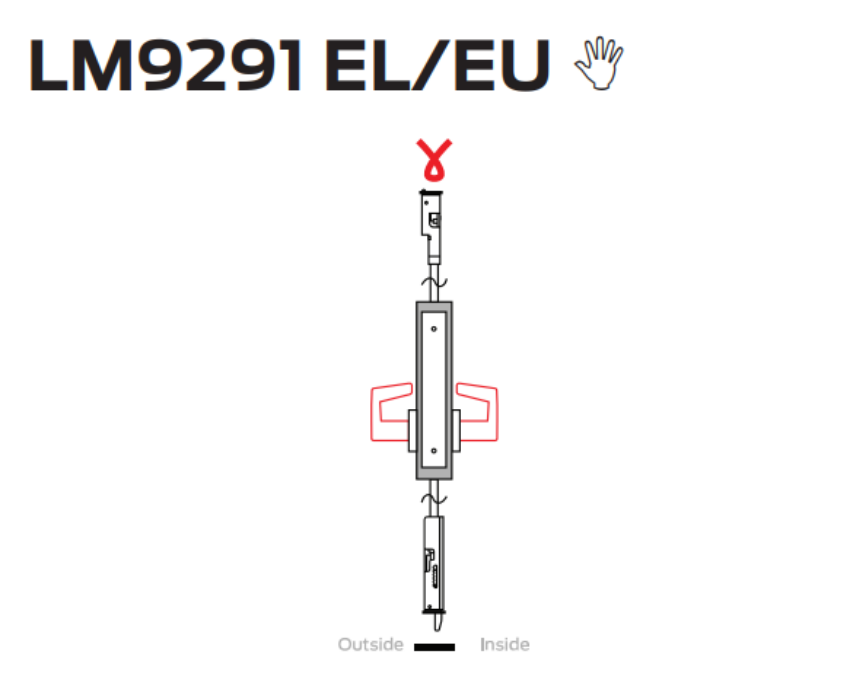

Schlage LM9291 EL/EU Electrically locking/unlocking both levers, no cylinder, 2-point lock
Diagram List
Products by Part Type
Mortise Lock General Parts
- Trim Assembly
- 09-401 Exterior Lever, w/Retaining Clip & Insertion Tool, For L Series
- 09-402 Inside Lever/Knob for L Series
- 09-403 A Rose for L Series Inside lever, A Style
- 09-403 B Rose for L Series Inside lever, B Style
- 09-403 C Rose for L Series Inside lever, C Style
- 09-403 MER Rose for L Series Inside lever, MER Style
- 09-403 AVA Rose for L Series Inside lever, AVA Style
- 09-404 Outside Rose and Bushing, L series
- 09-506 Outside Lever/Knob with Rose for L Series
- 09-655 Outside Lever assembly with AST or MER rose
- 09-550 Outside Lever w/Blank Escutcheon for L Series
- 09-632N Blank x Lever and Knob N Escutcheon for 1-3/8" to 4" thick doors
- 09-632L Blank x Lever and Knob L Escutcheon for 1-3/8" to 4" thick doors
- 09-636 Outside Escutcheon & Bushing
- C203-736 Case Mounting Screw Pack
- K510-389 Thru-Bolt Screw, N Escutcheon & 1-3/4" Thick Doors
- L583-120 Thru-Bolt Screw, L Escutcheon & 1-3/4" Thick Doors
- K110-020 Armor front screws
- L283-030 Truarc Rings, Pack of 20, For Levers
- L283-031 Mounting Plate, Inside Lever
- L283-040 Spring Cage
- L283-060 Spindle and spring, For 1-3/8" – 1-7/8" doors
- L283-064 Spindle and spring
- L583-066 Mounting plate screw, 2 required per lock
- L583-212 Mounting Posts, for 1-3/4" Thick Doors
- 24871584 Latch cover
- 24721714 Top Latch Kit
- 24721722 Bottom Latch Kit
- 24691750 Top Cable, 6'8-7'0" Door Opening
- 24647265 CVC Bottom Cable Assembly
- 24759656 LM Series Lock Case, Electrified, For use with LM9290/LM9292/LM9294
- Lock Case Assembly
- L283-055 Cylinder Retainer Plate & Screw
- 24653917 Lock Case, Subassembly
- L583-015 Latchbolt guide
- L583-748 Retractor hub, replaces L583-019, 2 required per lock
- L583-020 Retractor hub spacer
- L583-021 Retractor Lever
- L583-022 Retractor Rocker
- L583-023 Blocking Plate
- L583-024 Retractor Link
- L583-025 Retractor Crank
- 24624892 Hub spring
- 24641714 Turn hub spring
- L583-050 Link Pin
- 24869893 Electrified link
- 24865057 Faceplate tab, 1-1/4"
- L583-454 Case Cover Screw
- L583-481 Cylinder Retainer Screw
- L583-485 Lock Handing Screw
- L583-490 Cylinder retainer
- L583-492 Cylinder retainer screw plate
- 24625667 Bell crank cover
- 24653925 Link Subassembly
- 24616922 Link, Top
- 24616930 Link, Bottom
- 24511081 Spool assembly
- 24625717 Tilting Link
- 24683542 Tilting link compression spring
- 24302960 Electrified Locking Catch
- 24869901 Electrified hub
- 49001704 Capacitor holder
- Lock Case
- Rose & Escutcheon
- 09-403 A Rose for L Series Inside lever, A Style
- 09-403 B Rose for L Series Inside lever, B Style
- 09-403 C Rose for L Series Inside lever, C Style
- 09-403 MER Rose for L Series Inside lever, MER Style
- 09-403 AVA Rose for L Series Inside lever, AVA Style
- 09-508 A Blank Rose for L Series Outside lever, A Style
- 09-508 B Blank Rose for L Series Outside lever, B Style
- 09-508 C Blank Rose for L Series Outside lever, C Style
- 09-632N Blank x Lever and Knob N Escutcheon for 1-3/8" to 4" thick doors
- 09-632L Blank x Lever and Knob L Escutcheon for 1-3/8" to 4" thick doors
- 09-635N Full Face Cylinder x Lever N Escutcheon
- 09-635L Full Face Cylinder x Lever L Escutcheon
- 09-633N Thumbturn x lever and knob for 1-3/8" to 2-1/2" thick doors
- 09-633L Thumbturn x lever and knob for 1-3/8" to 2-1/2" thick doors
- 09-634L Thumbturn x blank for 1-3/8" to 2-1/2" thick doors
- L583-187L Concealed cylinder x lever and knob L Escutcheon
- 09-636 Outside Escutcheon & Bushing
- Lever / Knob
- Lever Assemblies
- 09-506 Outside Lever/Knob with Rose for L Series
- 09-655 Outside Lever assembly with AST or MER rose
- 09-550 Outside Lever w/Blank Escutcheon for L Series
- 09-551 Lever w/Escutcheon for L Series (Emergency turn)
- 09-552 Outside Lever With L Escutcheon for L Series (Concealed cylinder)
- 09-553 Outside Lever W/Escutcheon for L Series (Full face cylinder)
- 09-556 Outside Lever W/Escutcheon for L Series (Coin turn)
- Escutcheon Thru-Bolts
- K510-389 Thru-Bolt Screw, N Escutcheon & 1-3/4" Thick Doors
- L583-120 Thru-Bolt Screw, L Escutcheon & 1-3/4" Thick Doors
- L583-119 Thru-Bolt Screw, L Escutcheon & 1-3/8" Thick Doors
- L583-121 Thru-Bolt Screw, L Escutcheon & 2" Thick Doors
- L583-122 Thru-Bolt Screw, L Escutcheon & 2-1/4" Thick Doors
- L583-123 Thru-Bolt Screw, L Escutcheon & 2-1/2" Thick Doors
- K510-390 Thru-Bolt Screw, N Escutcheon & 2" To 2-1/4" Thick Doors
- Screws Packs
