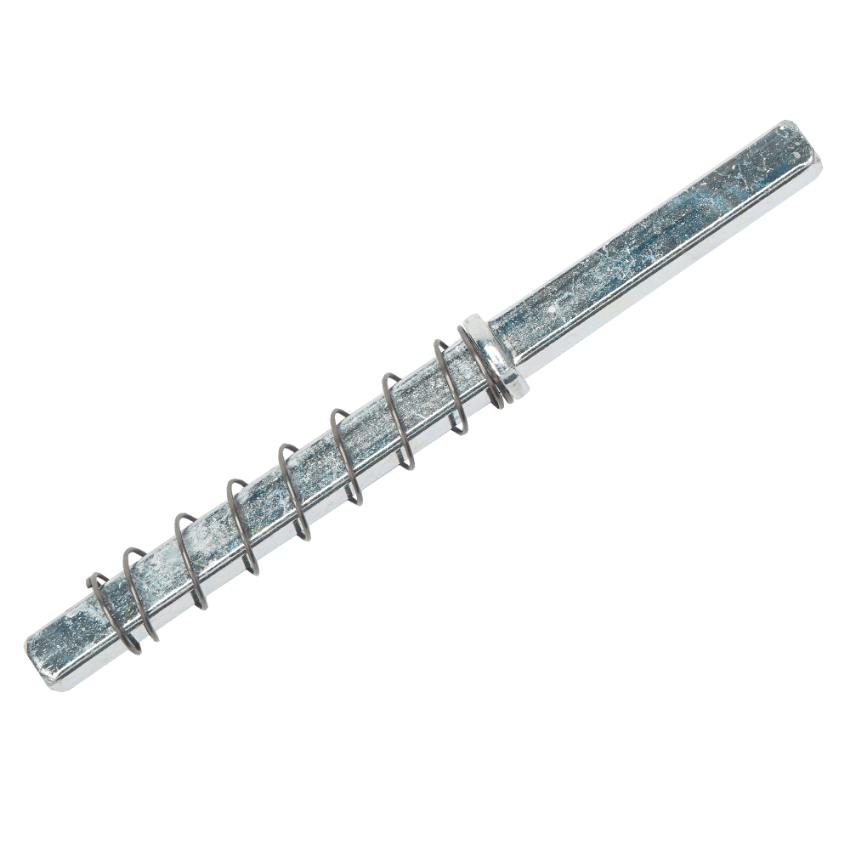

The Schlage L283-064 is the OEM Spindle and Spring for the L Series mortise lock, documented in the Schlage L Series Service Manual. It is confirmed Grade 1 and BAA Qualified. One is required per lock. It covers door thicknesses from 1-3/8 inches to 3 inches, documented in the official Allegion product listing. Compatible with L0172 (full dummy trim), L9091, L9093, L9095, L9493, and L9495.

Two specifications make the L283-064 distinct from other spindles in the L Series catalog: it requires only one per lock (not two), and it covers an exceptionally wide door thickness range without requiring thickness-specific selection. Both characteristics are explained by its application group.

What the L283-064 Spindle and Spring Does

The spindle is the connecting rod that passes through the door between the inside and outside trim positions. When a lever is turned, the lever hub drives the spindle, which transmits that rotational motion to the lock chassis mechanism. The spring returns the spindle (and therefore the lever) to the horizontal rest position after each operation.

In a standard mechanical L Series lock with two levers (inside and outside), two spindles are typically required - one connecting the outside trim to the chassis, and one connecting the inside trim to the chassis. The L283-060 (for 1-3/8" to 1-7/8" doors) and L283-061 (for 2" to 3-1/2" doors) are both specified at two required per lock for this reason.

The L283-064 requires one per lock because it serves configurations where only one spindle position is present. The L0172 full dummy trim uses a single spindle that gives the lever a return mechanism without connecting to any lock chassis. The electrified L9091/93/95 and L9493/95 functions use a specific spindle geometry for the electrified trim interface that differs from standard mechanical functions.

Schlage L283-064: L0172 Dummy Trim Application

The L0172 is the Schlage L Series full dummy trim - a lever handle set that provides the appearance of a functioning mortise lock without any latch or locking mechanism. Dummy trims are used on the inactive leaf of a door pair, on doors held open by magnetic hold-opens, or for architectural symmetry on non-functional door panels.

The L283-064 spindle in a dummy trim installation provides return force for the lever so it springs back to horizontal after being pressed. Without the spring, the dummy lever would stay in whatever position it was last moved to, creating an asymmetric appearance and a lever that doesn't return.

Schlage Spindle and Spring: L Series Electrified Function Applications

The L9091, L9093, and L9095 are electrified L Series functions:

L9091 = EL/EU (Electrically Locking/Electrically Unlocking) both levers, no cylinder. In the EL state, the motor engages a blocker against the spindle to prevent lever rotation. In EU state, the blocker releases and levers operate freely. The L283-064 spindle is designed with geometry compatible with the electrified mechanism's blocking action.

L9093 = Electrified storeroom function variant in the L9000 Series. Outside lever always locked; electrified release allows outside lever operation from a control signal.

L9095 = Electrified classroom security function. Both inside and outside lever control via electrified mechanism.

L9493 and L9495 are related electrified functions in the L Series catalog covering similar applications with different trim configurations.

Schlage L Series Mortise Lock Parts: L283-064 in the Spindle Family

The complete L Series spindle and spring catalog offers multiple configurations based on door thickness and required quantity:

L283-060 = Standard spindle, 1-3/8" to 1-7/8" doors, two required per lock.

L283-061 = Standard spindle, 2" to 3-1/2" doors, two required per lock.

L283-064 (this product) = For L0172 dummy trim and L9091/93/95/L9493/95 electrified functions, 1-3/8" to 3" doors, one required per lock.

The 1-3/8" to 3" door range of the L283-064 reflects the adjustable-length design needed for dummy trim applications across a wide variety of door construction types and thicknesses.

SecurityParts stocks OEM Schlage L Series spindle and spring assemblies and mortise lock parts. Free shipping on orders over $450.
