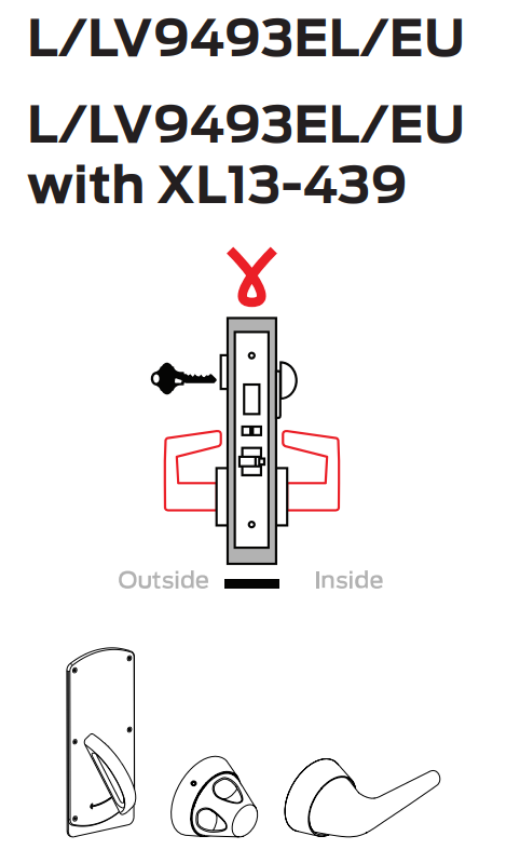

Schlage L9493 EL/EU Electrically locking/unlocking both levers, outside cylinder, inside thumbturn with deadbolt

• Key cylinder outside; thumbturn inside; deadbolt, latchbolt and deadlocking auxiliary latch
• Powered state: both levers (or knobs) continuously locked (EL mode) or unlocked (EU mode); Vandlgard® option allows both levers to rotate freely down while locked
• Deadbolt thrown or retracted by key outside or by inside thumbturn
• The optional XL13-439 allows key to retract deadbolt overriding thumbturn if being held in locked position
• When power is removed (or power fails): in EL mode either lever will retract latchbolt; in EU mode both levers are locked; deadbolt projection is independent of electrically locked or unlocked state of either lever
• When unlocked, rotating inside lever retracts both deadbolt and latchbolt
