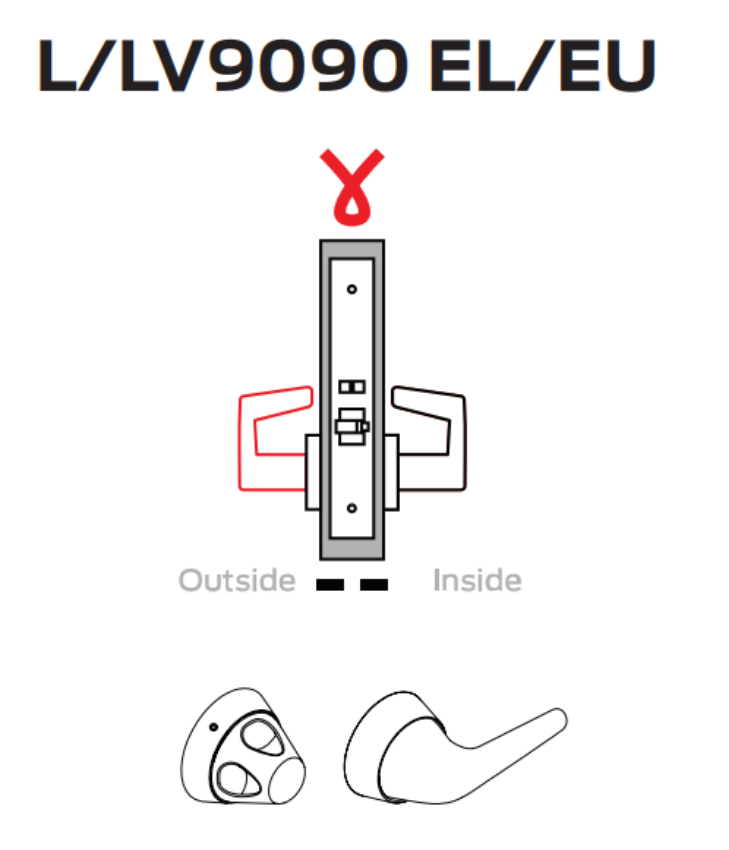

Schlage L9090 EL/EU Electrically locking /unlocking outside lever, no cylinder
Diagram List
Products by Part Type
Mortise Lock General Parts
- Trim Assembly
- C203-736 Case Mounting Screw Pack
- 09-403 A Rose for L Series Inside lever, A Style
- 09-403 B Rose for L Series Inside lever, B Style
- 09-403 C Rose for L Series Inside lever, C Style
- 09-403 MER Rose for L Series Inside lever, MER Style
- 09-403 AVA Rose for L Series Inside lever, AVA Style
- 09-632N Blank x Lever and Knob N Escutcheon for 1-3/8" to 4" thick doors
- 09-632L Blank x Lever and Knob L Escutcheon for 1-3/8" to 4" thick doors
- 09-655 Outside Lever assembly with AST or MER rose
- 09-663 Latch x Auxiliary Latch Armor Front, Over 1-3/4" Doors
- L583-120 Thru-Bolt Screw, L Escutcheon & 1-3/4" Thick Doors
- K510-389 Thru-Bolt Screw, N Escutcheon & 1-3/4" Thick Doors
- L583-212 Mounting Posts, for 1-3/4" Thick Doors
- L583-497 Mounting Posts, For 1-3/4" Thick Doors
- L283-060 Spindle and spring, For 1-3/8" – 1-7/8" doors
- K110-550 1x Retaining Ring & 2x Spacers Pack, For Knobs
- L283-030 Truarc Rings, Pack of 20, For Levers
- L283-031 Mounting Plate, Inside Lever
- L283-040 Spring Cage
- L583-066 Mounting plate screw, 2 required per lock
- L583-321 Mounting Plate, Inside Knob
- K110-020 Armor front screws
- L283-347, L9090/L9092/L9094 Electrified Chassis
- L283-597, LV9090/LV9092 Electrified Chassis
- 09-402 Inside Lever/Knob for L Series
- 09-506 Outside Lever/Knob with Rose for L Series
- 09-550 Outside Lever w/Blank Escutcheon for L Series
- 09-401 Exterior Lever, w/Retaining Clip & Insertion Tool, For L Series
- 09-404 Outside Rose and Bushing, L series
- 09-636 Outside Escutcheon & Bushing
- Lock Case Assembly
- L583-454 Case Cover Screw
- L283-006 Auxiliary Latchbolt Assembly
- L283-008 Auxiliary Latchbolt Assembly
- L283-055 Cylinder Retainer Plate & Screw
- L283-452 RX Module, Electrified Mortise for L909x series
- L583-004 Standoff Post, For Use With L Series
- L583-748 Retractor hub, replaces L583-019, 2 required per lock
- L583-020 Retractor hub spacer
- L583-021 Retractor Lever
- L583-022 Retractor Rocker
- L583-023 Blocking Plate
- L583-024 Retractor Link
- L583-025 Retractor Crank
- L583-026 Hub Spring
- L583-027 Fire door fuse
- L583-028 Fire door catch
- L583-044 Stop Spring
- L583-050 Link Pin
- L583-051 Transfer Lever
- L583-196 Auxiliary Stop
- L583-426 Faceplate Tab 1-1/4"
- L583-481 Cylinder Retainer Screw
- L583-485 Lock Handing Screw
- L583-490 Cylinder retainer
- L583-492 Cylinder retainer screw plate
- L283-615 Screw Pack
- Lock Case
- L283-347, L9090/L9092/L9094 Electrified Chassis
- L283-392, L9090/L9092 Electrified Chassis w/ RX
- L283-393, L9090/L9092 Electrified Chassis w/ LX
- L283-479, L9090/L9092 Electrified Chassis w/ DPS
- L283-394, L9090/L9092 Electrified Chassis w/ RX and LX
- L283-481, L9090/L9092 Electrified Chassis w/ RX and DPS
- L283-483, L9090/L9092 Electrified Chassis w/ RX, LX and DPS
- L283-597, LV9090/LV9092 Electrified Chassis
- Rose & Escutcheon
- 09-403 A Rose for L Series Inside lever, A Style
- 09-403 B Rose for L Series Inside lever, B Style
- 09-403 C Rose for L Series Inside lever, C Style
- 09-403 MER Rose for L Series Inside lever, MER Style
- 09-403 AVA Rose for L Series Inside lever, AVA Style
- 09-508 A Blank Rose for L Series Outside lever, A Style
- 09-508 B Blank Rose for L Series Outside lever, B Style
- 09-508 C Blank Rose for L Series Outside lever, C Style
- 09-632N Blank x Lever and Knob N Escutcheon for 1-3/8" to 4" thick doors
- 09-632L Blank x Lever and Knob L Escutcheon for 1-3/8" to 4" thick doors
- 09-635N Full Face Cylinder x Lever N Escutcheon
- 09-635L Full Face Cylinder x Lever L Escutcheon
- 09-633N Thumbturn x lever and knob for 1-3/8" to 2-1/2" thick doors
- 09-633L Thumbturn x lever and knob for 1-3/8" to 2-1/2" thick doors
- 09-634L Thumbturn x blank for 1-3/8" to 2-1/2" thick doors
- L583-187L Concealed cylinder x lever and knob L Escutcheon
- 09-636 Outside Escutcheon & Bushing
- Lever / Knob
- Lever Assemblies
- 09-655 Outside Lever assembly with AST or MER rose
- 09-552 Outside Lever With L Escutcheon for L Series (Concealed cylinder)
- 09-553 Outside Lever W/Escutcheon for L Series (Full face cylinder)
- 09-556 Outside Lever W/Escutcheon for L Series (Coin turn)
- 09-506 Outside Lever/Knob with Rose for L Series
- 09-550 Outside Lever w/Blank Escutcheon for L Series
- 09-551 Lever w/Escutcheon for L Series (Emergency turn)
- Escutcheon Thru-Bolts
- L583-119 Thru-Bolt Screw, L Escutcheon & 1-3/8" Thick Doors
- L583-120 Thru-Bolt Screw, L Escutcheon & 1-3/4" Thick Doors
- L583-121 Thru-Bolt Screw, L Escutcheon & 2" Thick Doors
- L583-122 Thru-Bolt Screw, L Escutcheon & 2-1/4" Thick Doors
- L583-123 Thru-Bolt Screw, L Escutcheon & 2-1/2" Thick Doors
- K510-389 Thru-Bolt Screw, N Escutcheon & 1-3/4" Thick Doors
- K510-390 Thru-Bolt Screw, N Escutcheon & 2" To 2-1/4" Thick Doors
- Armor Front / Faceplate
- Strikes
- K510-066 Box for ANSI Strikes
- 10-072-1316 T-Square Corner Strike With Plastic Box
- 10-072-078 T-Square Corner Strike With Plastic Box
- 10-072-112 T-Square Corner Strike With Plastic Box
- 10-072-100 T-Square Corner Strike With Plastic Box
- 10-072-134 T-Square Corner Strike With Plastic Box
- 10-072-200 T-Square Corner Strike With Plastic Box
- 10-073 Flat Square Corner Strike
- 10-075 Rabbeted Strike
- 10-145 L9000 Series Deadbolt Strike, For SK1/SL1 Trims
- 10-144 L9000 Series Deadbolt Strike, For SK1/SL1 Trims
- 37-015 Door Frame Strike Reinforcer
- Screws Packs
- L583-454 Case Cover Screw
- C203-736 Case Mounting Screw Pack
- L583-120 Thru-Bolt Screw, L Escutcheon & 1-3/4" Thick Doors
- K510-389 Thru-Bolt Screw, N Escutcheon & 1-3/4" Thick Doors
- L583-066 Mounting plate screw, 2 required per lock
- L583-481 Cylinder Retainer Screw
- L583-485 Lock Handing Screw
- K110-020 Armor front screws
- L283-615 Screw Pack
