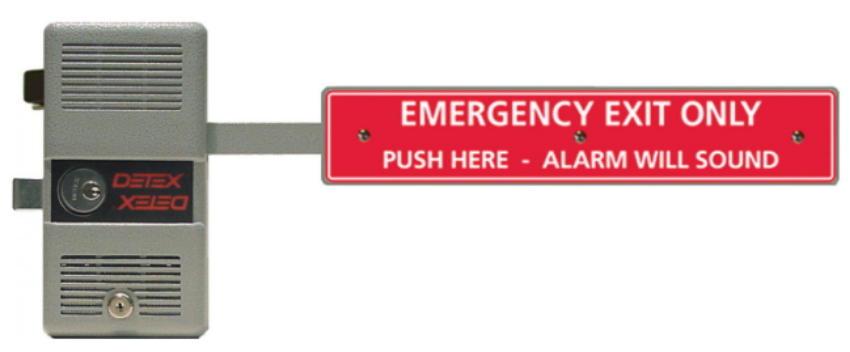

Detex Detex ECL-600 Series

Diagram List

Detex ECL-600 Series Parts Diagram

Detex Detex ECL-600 Series

Products by Part Type

Exit Device General Parts

• Mechanism Case & Parts
  • 100059 Mechanism Assembly
  • ECL-1576-15 Cam Bridge Assembly Kit, for ECL-230D/600 Series
  • ECL-285A Cam Plate - Bottom, for ECL-230D Series
  • ECL-306-1 Boly Assembly, for ECL-230D Series
  • ECL-284 Detent Spring
  • ECL-293A Detent Lever
  • 100062 Actuator & Release Lever Kit
  • 100060 ECL-600 Relatching Assembly
• Siren & Electronic Parts
  • PP-5966-1 Piezo Horn, for use with ECL-2030D/230X and EAX-500/EAX-2500
  • 100069-1 Detex Switch Siren Assembly, ECL Series
  • ECL-204 Switch Assembly
  • 100331 ECL-230D Series Part, Battery Connector
  • 101796, 230 Series Holder Switch Actuator, for Switch Actuator ECL-308/309
• Paddle & Trim Parts
  • ECL-419 Shield, for ECL-230D Series
  • ECL-2105 Long Arm Bar, for ECL-230D Series
  • ECL-2109 Metal Photoluminescent Plate, for ECL-230D-PH and ECL-600 Series, English
  • 100098 Backplate
  • 100065 Cover
• Lockset & Keys
  • PP-5572 Cover Lock Set with 2 Keys, ECL and EA Series
  • ECL-405 Kit of 1 Each Cut Key 11-20
• Fasteners
  • PP-5090-1 Retaining Ring
  • ECL-236 Bar Pin
