• Detex AO19-3 Double Egress
• Detex AO19-3 Dual Egress Series Parts Diagram (RH Pull Shown)

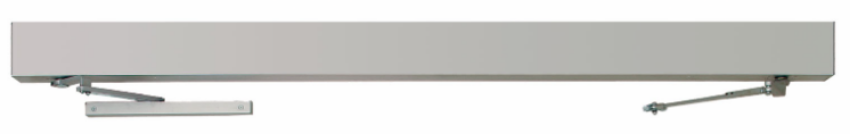

Detex AO19-3 Double Egress

Looking to buy a new set? Buy here

Diagram List

Detex AO19-3 Dual Egress Series Parts Diagram (RH Pull Shown)

Detex AO19-3 Double Egress

Products by Part Type

Automatic Operators General Parts

• Channel, Cover & Hanger Assemblies
  • 106759-9 AO19 Channel, Cover, & Hanger Assembly-75.5" DUAL AL
  • 106759-10 AO19 Channel, Cover, & Hanger Assembly-75.5" DUAL BZ
  • 106759-11 AO19 Channel, Cover, & Hanger Assembly-92" DUAL AL
  • 106759-12 AO19 Channel, Cover, & Hanger Assembly-92" DUAL BZ
  • 106759-21 AO19 Channel, Cover, & Hanger Assembly-100" DUAL AL
  • 106759-22 AO19 Channel, Cover, & Hanger Assembly-100" DUAL BZ
• Motor & Control Parts
  • 104796-4 Motor/Gearbox, Right Hand, Pull, Clear Aluminum
  • 104796-2 Motor/Gearbox, Left Hand, Pull, Clear Aluminum
  • 104796-3 Motor/Gearbox, Right Hand, Push
  • 104796-1 Motor/Gearbox, Left Hand, Push
  • 105433 S&R AO19 Clock Spring Replacement Kit
  • 105421 S&R Controller, Operator, UDC 1000
  • 104705 Switch Plate Subassembly
  • 12607 Cam, AO19
• Electrical & Wiring Parts
  • 105416-2 S&R Kit, 120VAC Line Filter, 4 ft
  • 105416-5 S&R Kit, 120VAC Line Filter, 4 ft (Alternate build)
  • 105422 S&R Switch, 3 Way Toggle, w/ Cable & Connector, for UDC Controller
  • 104706 Micro Harness
  • 104707 Sync Cable, for Twin AO19 Operators
• Push Arm Assemblies
  • 104798-1 Auto Operator Arm Assembly Pack, 3 Foot Door, Aluminum
  • 104798-2 Push Arm Sub-Assembly, Auto Operator, 36 Inch, Dark Bronze
  • 12731-1 Bent Arm, Aluminum
  • 12731-2 Bent Arm, Bronze
  • 104728-1 Push Arm for Operator, 20", Aluminum
  • 104728-2 Push Arm for Operator, 20", Bronze
• Pull Arm Assemblies
  • 104797-1 Pull Arm Subassembly Aluminum
  • 104797-2 Pull Arm Subassembly, Bronze
  • 12781-1 Power Arm, Aluminum
  • 12781-2 Power Arm, Bronze
  • 12787-1 Forearm, Aluminum
  • 12787-2 Forearm, Bronze
  • 12784 Arm Strike Block
  • 12785-1 Slide Track, Aluminum
  • 12785-2 Slide Track, Bronze
• Fasteners
  • 12741-1 Acorn Nut, 3/8-24, Aluminum
  • 12741-2 Acorn Nut, 3/8-24, Bronze
  • 12739-1 Hex Cap Screw, 3/8-24 x 1-3/4" Long, Aluminum
  • 12739-2 Hex Cap Screw, 3/8-24 x 1-3/4" Long, Bronze
  • 12743-1 Hex Cap Screw, 3/8-24 x 1-1/4" Long, Aluminum
  • 12743-2 Hex Cap Screw, 3/8-24 x 1-1/4" Long, Bronze
  • 102271-112 Mach Screw, 1/4-20 PFH, Stainless Steel
  • 102271-312 Mach Screw, 1/4-20 PFH, Stainless Steel, Black
  • 12742-1 Socket head cap Screw, 1/4-20 x 1", Stainless Steel
  • 12742-2 Socket head cap Screw, 1/4-20 x 1", Black
  • 12407-2 Mach Screw, 10-32 x 1/2", Flat Socket Head
• Mounting & Hardware Parts
  • 12735-1 Door foot, AO19, Aluminum
  • 12735-2 Door Foot, Bronze
  • 12905 Plug, Hole, .875 Dia.
  • 12906 Plug, Hole, 1.093 Dia.
