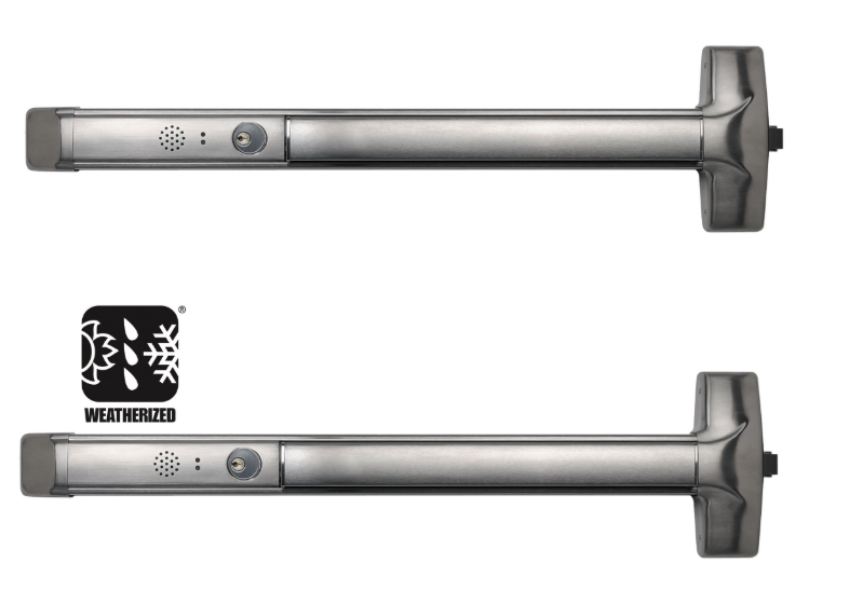

Detex ADVANTEX Exit Alarm, Weatherized Exit Alarm With Battery (EA-EX-EBxW)

Diagram List

Detex EA-EX-EBxW Series Parts Diagram

Detex ADVANTEX Exit Alarm, Weatherized Exit Alarm With Battery (EA-EX-EBxW)

Products by Part Type

Exit Device General Parts

• Center Case Kits & Parts
  • 105500-23 EX-W Conversion Kit
  • 105500-24 EX-W Conversion Kit
• Cover Plate Kits & Parts
  • 100860-51 Fillerplate Subassembly, EA, 3ft
  • 100860-66 Fillerplate Subassembly, EA, 4ft
  • 100860-59 Fillerplate Subassembly, LD, 3ft
  • 100860-60 Fillerplate Subassembly, LD, 4ft
• End Cap Kit & Parts
  • 101642-9 EC1 Ramped Endcap
  • 102095-9 Endcap, EC1 (ramped) for Flex Conduit, SS
  • 104304-9 EC2 Flush Endcap, Stainless Steel
  • 104612-1 EC2 Flush Endcap, Aluminum
  • 104317-9 Endcap, EC2 (flush), for Flex Conduit, Stainless Steel
  • 104686-1 Endcap, EC2 (flush) Aluminum, for Flex Conduit
  • 101093 Endcap bracket for EC1 (ramped) endcap w/ battery holder
  • 100147 Endcap bracket for EC1 (ramped) endcap w/o battery holder
  • 104636 Endcap bracket for EC2 (flush) endcap w/ battery holder
  • 104303 Endcap bracket for EC2 (flush) endcap w/o battery holder
• Dogging Parts
  • 100783 Cylinder Hex Nut
• Power Supply / Battery
  • PP-5567 Detex 9V Battery
• Door Sign
  • EA-561 Door Signage with Lettering, "Emergency Exit Alarm Will Sound"
• Cable & Wiring
  • 101901-3 Armored Cable Kit, 3ft
  • 101901-5 Armored Cable Kit, 10ft
  • 101858-5 Weatherized Armored Cable Kit, 3ft
  • 101858-2 Weatherized Armored Cable Kit, 10ft
• Electronic
  • 100744-2 Circuit Board Only, EA Prep Option, on a Z Bracket, for 48 Inch Device
