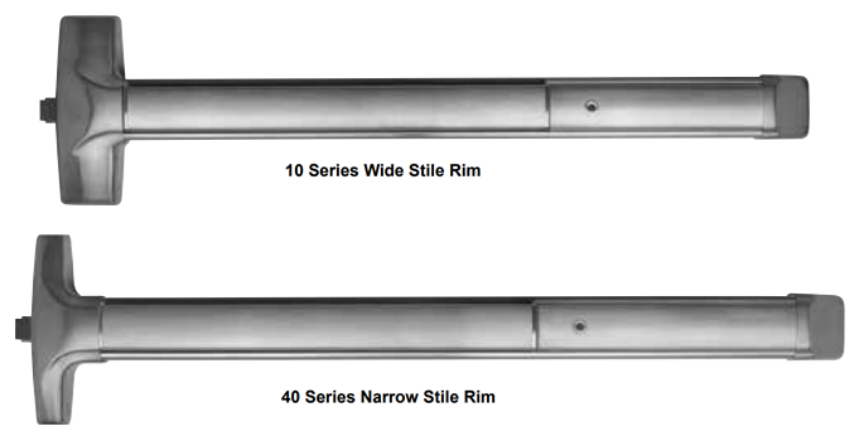

Detex ADVANTEX 10 / 40 Series
Diagram List
Products by Part Type
Exit Device General Parts
- Center Case Kits & Parts
- 105500-63 Centercase/Pushpad SubAssembly, 40 series, 36"
- 105500-62 Centercase/Pushpad SubAssembly, 10 series, 36"
- 100698-1 Centercase Assembly, Narrow Stile, 40 Series
- 100698-2 Centercase Assembly, Wide Stile, 10 Series
- 100311-9 Centercase Cover, Narrow, 40 Series, Stainless Steel
- 100196-9 Centercase Cover, Wide, 10 Series, Stainless Steel
- 104602-1 Centercase Cover, Aluminum, Narrow, 40 Series, 628
- 104640-1 Centercase Cover, Aluminum, Wide, 10 Series, 628
- 100696-1 Mounting Plate, BP2, Narrow Stile
- 100697-1 Mounting Plate, BP1, Wide Stile
- 103806-1 Mounting Plate/Strike Locator Kit, Narrow Stile, 98 Strike BP2
- 103806-2 Mounting Plate/Strike Locator Kit, Wide Stile
- Cover Plate Kits & Parts
- 100860-54 Fillerplate, Subassembly, S&R, Hex Dogging, HD, 10 series, 36", 630 Finish
- 100860-49 Fillerplate, Subassembly, S&R, Cylinder Dogging, CD, 10 series, 36", 630 Finish
- 100860-100 Fillerplate, Subassembly, S&R, Hex Dogging, HD, 10 / 20 series, 36", 628 Finish
- 100860-137 Fillerplate, Subassembly, S&R, Hex Dogging, HD, 40 / 50 series, 36", 628 Finish
- End Cap Kit & Parts
- 101642-9 EC1 Ramped Endcap
- 104304-9 EC2 Flush Endcap, Stainless Steel
- 104612-1 EC2 Flush Endcap, Aluminum
- 100147 Endcap bracket for EC1 (ramped) endcap w/o battery holder
- 101093 Endcap bracket for EC1 (ramped) endcap w/ battery holder
- 104303 Endcap bracket for EC2 (flush) endcap w/o battery holder
- 104636 Endcap bracket for EC2 (flush) endcap w/ battery holder
- Dogging Parts
- Strikes
- 100855-2, 99 Strike Kit
- 100855-1, 98 Strike Kit
- 102212-1, 94 94 Double Door Strike Kit
- 100234-1 Non-Roller Strike
- 100088 Strike Shim
- 100480 Mortise Strike
- 100482 Shim, Mortise Strike
- 100481 Strike Shield
- 102211 Double Door Strike Plate
- 102214, 94 Shim Strike
- 101899 Strike Locator 2" Glass Door (98)
- 100212 Strike Locator 2" Standard (99)
